Запчасти Case IH 884 (07-012) - CLUTCH, 884/1413 - 885/2000 UP (04) - Drive Train

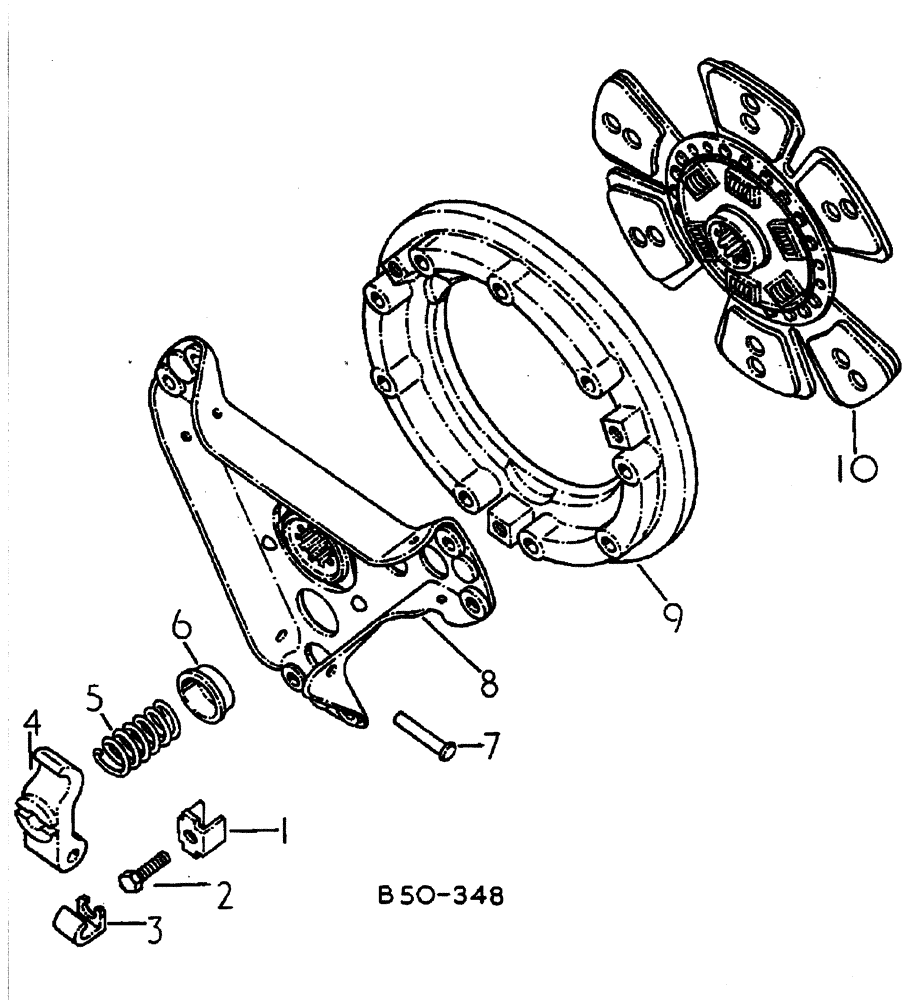

Схема запчастей Case IH 884 - (07-012) - CLUTCH, 884/1413 - 885/2000 UP (04) - Drive Train
2
4
1
9
5
6
7
10
3
8

Артикул

Название

Примечание

Количество

1500655C91

COVER ASSY

CLUTCH PRESURE PLATE CONSISTS OF REF NOS 1-9, ALSO INCLUDES: SCREWS AND WASHERS

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

6шт.

1

1500654C1

SUPPORT

KIT, WEAR CLIP

3шт.

2

69911C1

KIT

COVER PARTS W/SCREW CLIP NUT AND WASHER

1шт.

2

1500653C1

KIT

COVER PARTS W/SCREW CLIPS AND NUT

1шт.

3

69912C1

KIT

LEVER AND PIVOT PIN

1шт.

4

69910C2

KIT

PRESSURE SPRING AND CUP

1шт.

5

NSS

NOT SOLD SEPARAT

CUP, SPRING

3шт.

6

NSS

NOT SOLD SEPARAT

PIN, PIVOT

3шт.

7

69914C1

HUB ASSY.

KIT, PRESSURE

1шт.

8

69913C1

KIT

PRESSURE PLATE

1шт.

9

3121507R92

CLUTCH & DISC ASSY

PLATE ASSY, DRIVEN

1шт.

Выбрано товаров: 13
