Запчасти Case IH 884 (15-004) - REAR WHEELS Wheels & Traction

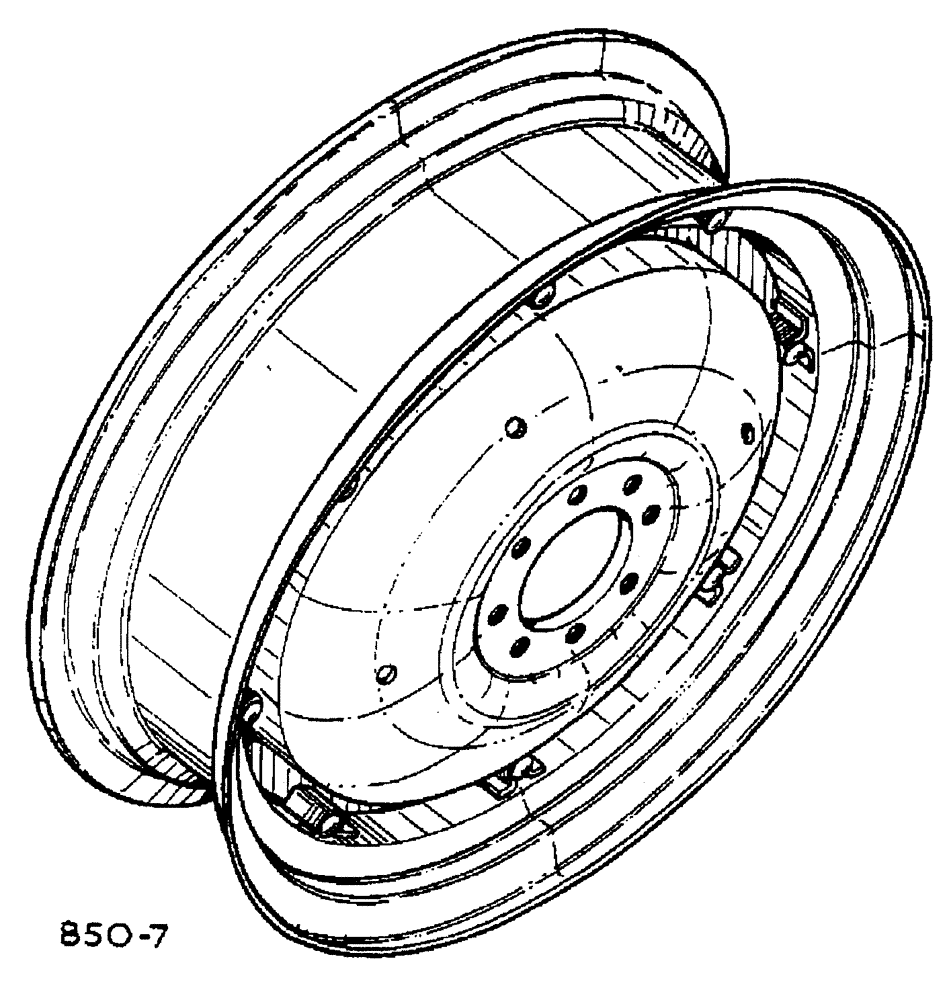

Схема запчастей Case IH 884 - (15-004) - REAR WHEELS Wheels & Traction

Артикул

Название

Примечание

Количество

1

527256R1

WHEEL ASSY W11-36 REAR, FOR 12-4-36 AND 13-6-36 TYRE, INCLUDES: RIMS AND DISCS

2шт.

406949R1

RIM

W/LUG W 11-36 REAR WHEEL

2шт.

406942R1

DISC

REAR WHEEL

2шт.

1

527253R91

WHEEL

ASSY DW14-30 REAR FOR W14-30/16 9-3, 15-30/18-30 TYRE, INCLUDES: RIMS, DISCS, BOLTS, NUTS AND WASHERS

2шт.

406944R1

RIM

WHEEL W/LUG DW14-30 REAR WHEEL

2шт.

406942R1

DISC

REAR WHEEL

2шт.

406951R1

BOLT,5/8" - 18 x 2.91", Gr 5

REAR WHEEL DISC

16шт.

406953R1

NUT

REAR WHEEL DISC BOLT

16шт.

406952R1

WASHER

REAR WHEEL DISC BOLT

16шт.

1

3113432R91

WHEEL

ASSY W15L-30 REAR, FOR W15-30 TYRE, INCLUDES: RIMS, DISCS, BOLTS, NUTS AND WASHERS

2шт.

3116540R1

RIM

WHEEL W/LUG

2шт.

3116404R1

DISC

REAR WHEEL

2шт.

3116403R1

BOLT (SPREADER)

REAR WHEEL DISC

12шт.

102639

NUT,5/8"-11, G5

12шт.

934233R1

LOCK WASHER

LOCK 5/8

12шт.

1

3113316R91

WHEEL

ASSY. FOR 12-38/13 6-38 TYRE, INCLUDES: RIMS, DISCS, BOLTS, NUTS AND WASHERS

2шт.

3113462R1

RIM

W/LUGS W11-38 REAR WHEEL

2шт.

3113463R1

DISC, WHEEL

REAR

2шт.

406951R1

BOLT,5/8" - 18 x 2.91", Gr 5

REAR WHEEL RIM MTG

16шт.

406952R1

WASHER

REAR WHEEL RIM MTG BOLT

16шт.

406953R1

NUT

REAR WHEEL RIM MTG BOLT

16шт.

1

3113317R91

WHEEL

ASSY, W14-34 REAR, FOR 14-34 TYRE, INCLUDES: RIMS, DISCS, BOLTS, NUTS AND WASHERS

2шт.

3113464R1

RIM

WHEEL W/LUG W14-34 REAR WHEEL

2шт.

406948R1

WHEEL DISC

REAR

2шт.

406951R1

BOLT,5/8" - 18 x 2.91", Gr 5

REAR WHEEL DISC

16шт.

406952R1

WASHER

REAR WHEEL RIM MTG BOLT

16шт.

406953R1

NUT

REAR WHEEL RIM MTG

16шт.

Выбрано товаров: 27
