Запчасти Case IH 884 (12-092) - OIL FILTER Power

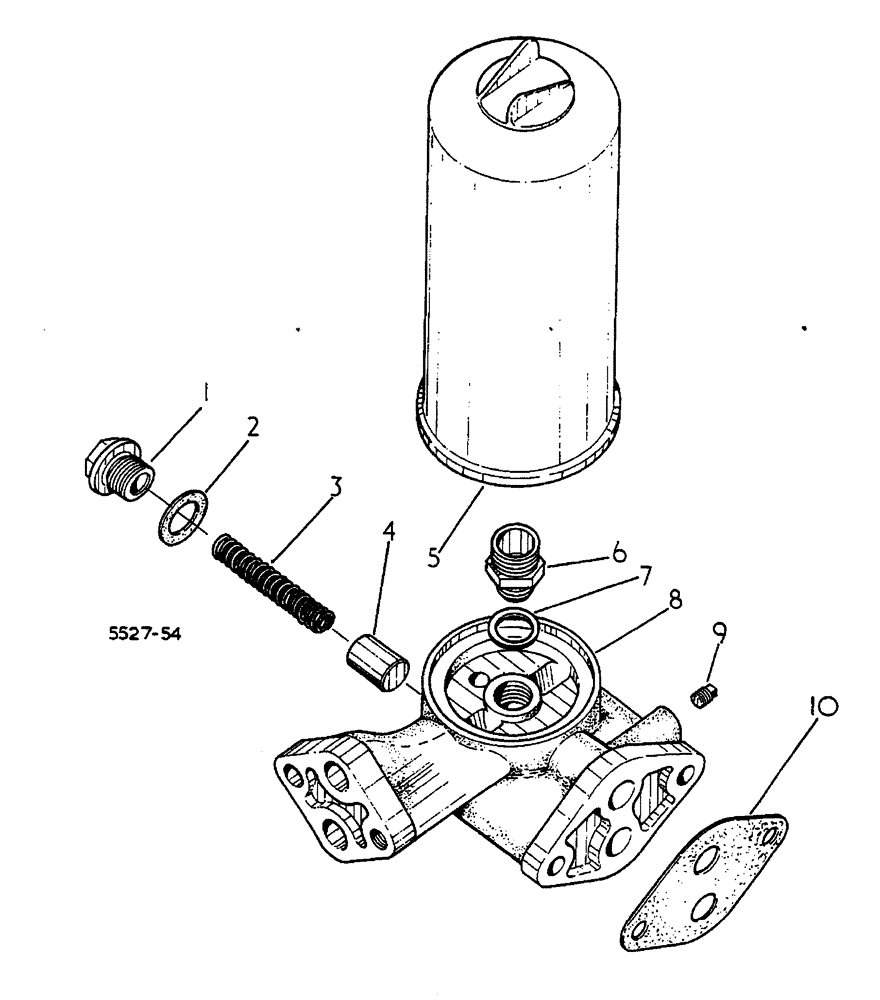

Схема запчастей Case IH 884 - (12-092) - OIL FILTER Power
10
4
6
1
2
7
5
9
3
8

Артикул

Название

Примечание

Количество

1

3138581R1

PLUG

RELIEF VALVE

1шт.

2

3058431R1

COPPER WASHER

RELIEF VALVE PLUG

1шт.

3

279163R1

SPRING

OIL COOLER RELIEF VALVE

1шт.

4

251400R1

VALVE

RELIEF OIL COOLER

1шт.

5

3132737R93

FILTER, ENGINE OIL

FILTER, OIL

1шт.

6

3136308R1

CONNECTOR, ELEC

CONNECTOR THREADED

1шт.

7

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

1шт.

8

3144599R1

BASE

OIL FILTER, INCLUDES: BOLTS AND DISC

1шт.

186285

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2шт.

3144513R1

SPRING WASHER

DISC, SPRING

2шт.

9

NOT APPLICABLE

1шт.

10

3055237R1

GASKET

OIL FILTER SOCKET

1шт.

Выбрано товаров: 12
