Запчасти Case IH 884 (12-070) - VALVE MECHANISM Power

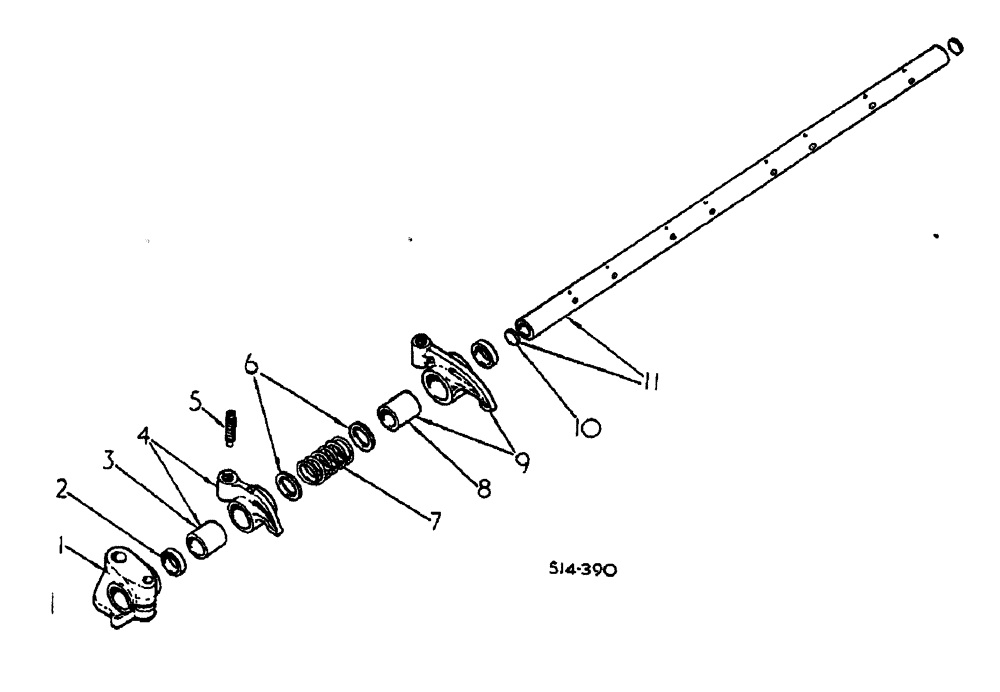

Схема запчастей Case IH 884 - (12-070) - VALVE MECHANISM Power
9
11
2
4
3
1
7
6
8
10
5

Артикул

Название

Примечание

Количество

1

3055077R6

SUPPORT

BRACKET, ROCKER ARM SHAFT, INCLUDES: NUTS, SCREWS AND WASHERS

5шт.

25-118

NUT,1/2"-20, G5

1/2-20 HEX

5шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5шт.

3050129R1

LOCK WASHER

WASHER, LOCK

5шт.

2

3055068R1

BUSHING,22mm ID x 30mm OD x 6.8mm L

DISTANCE

7шт.

3

3132019R1

BUSHING,21.15mm ID x 26.09mm OD x 25.4mm L

4шт.

4

3132293R91

ARM ASSY.

W/BUSHINGS -EXHAUST ROCKER, INCLUDES: NUTS

4шт.

3132138R1

NUT

ROCKER ARM SHAFT

4шт.

5

3132137R1

ADJUSTMENT SCREW

Rocker arm

8шт.

6

3055669R1

THRUST WASHER

THRUST ROCKER ARM

8шт.

7

3055075R2

SPRING

ROCKER ARM

4шт.

8

3132019R1

BUSHING,21.15mm ID x 26.09mm OD x 25.4mm L

4шт.

9

3132292R91

ROCKER

ARM ASSY, W/BUSHINGS -INTAKE, INCLUDES: NUTS

4шт.

3132138R1

NUT

ROCKER ARM SHAFT

4шт.

10

933565R1

PLUG,M14, Conical

EXPANSION 14 MM

2шт.

11

3055070R21

SHAFT HOUSING

ASSY, ROCKER ARM, W/PLUGS

1шт.

Выбрано товаров: 16
