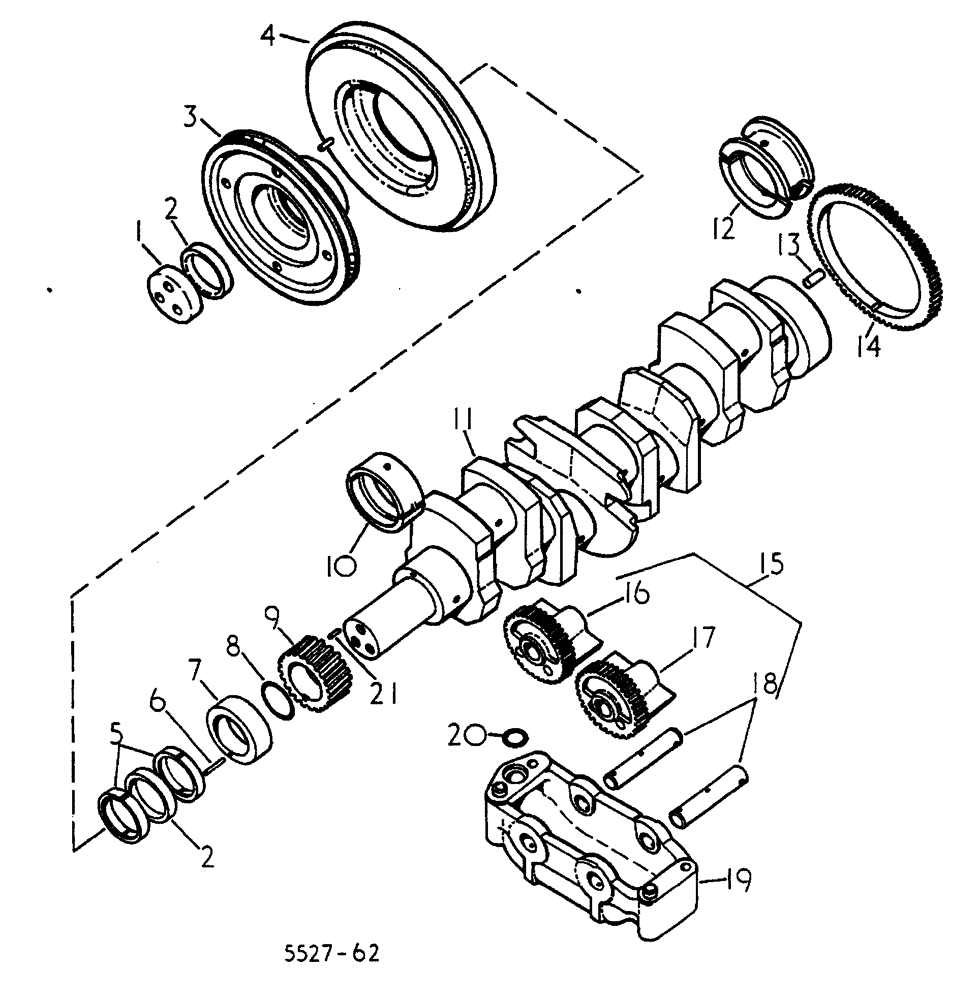

Запчасти Case IH 884 (12-058) - CRANKSHAFT Power

1

3055154R1

WASHER

PRESSURE, INCLUDES: BOLTS

1шт.

308464R1

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8

3шт.

2

3055153R1

SPACER,56.64mm ID x 61.72mm OD x 10.16mm L

PRESSURE

2шт.

3

3136324R11

PULLEY

CRANKSHAFT W/PIN 932338R1, INCLUDES: PIN, BOLTS AND WASHERS

1шт.

932338R1

DOWEL,M4 x 14

DOWEL

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

6шт.

933806R1

WASHER

6шт.

4

3136283R1

DAMPER

VIBRATION

1шт.

5

3055152R91

RING

SPRING, ANNULAR

2шт.

6

932681R1

DOWEL,4mm OD x 24mm L

Pin

1шт.

7

NSS

NOT SOLD SEPARAT

RING, DISTANCE W/PIN 932681R1, ORDER PACKAGE 3228133R91

1шт.

8

713778R1

O-RING,3mm Thk x 55mm ID

1шт.

9

3055028R1

PINION

GEAR, CRANKSHAFT 33 TEETH

1шт.

10

3055130R21

CRANKSHAFT BEARING

BEARING, MAIN STD SIZE

4шт.

10

3056832R21

BEARING ASSY

MAIN 250MM UNDERSIZE, AS REQUIRED

1шт.

10

3056877R21

BEARING ASSY

MAIN 500 MM UNDERSIZE, AS REQUIRED

1шт.

10

3055779R21

BEARING ASSY

MAIN 750MM UNDERSIZE, AS REQUIRED

1шт.

11

3228377R91

BEARING ASSY

250 MM UNDERSIZE CPTE, AS REQUIRED, CONSISTS OF: BEARINGS, GEARS AND PINS

1шт.

3056820R11

BEARING ASSY

1шт.

3056832R21

BEARING ASSY

4шт.

3065834R11

BEARING

4шт.

3144700R1

GEAR

1шт.

3055028R1

PINION

GEAR

1шт.

37-1616

DOWEL,3/8" x 1"

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

1шт.

11

3228376R91

BEARING ASSY

CPTE, STD SIZE, CONSISTS OF: BEARINGS, GEARS AND PINS

1шт.

3055129R21

CRANKSHAFT BEARING

1шт.

3055130R21

CRANKSHAFT BEARING

BEARING

4шт.

3055351R91

BEARING ASSY

4шт.

3144700R1

GEAR

1шт.

3055028R1

PINION

GEAR

1шт.

37-1616

DOWEL,3/8" x 1"

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

1шт.

11

3228378R91

BEARING ASSY

500MM UNDERSIZE CPTE, AS REQUIRED, CONSISTS OF: BEARINGS, GEARS AND PINS

1шт.

3056875R11

BEARING ASSY

1шт.

3056877R21

BEARING ASSY

4шт.

3056879R11

BEARING ASSY

4шт.

3144700R1

GEAR

1шт.

3055028R1

PINION

GEAR

1шт.

37-1616

DOWEL,3/8" x 1"

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

1шт.

12

3055129R21

CRANKSHAFT BEARING

MAIN REAR STD SIZE

1шт.

12

3056820R11

BEARING ASSY

MAIN REAR 250MM UNDERSIZE

1шт.

12

3056875R11

BEARING ASSY

MAIN REAR 500MM UNERSIZE

1шт.

12

3055776R11

BEARING ASSY

MAIN REAR 750MM UNDERSIZE

1шт.

13

37-1616

DOWEL,3/8" x 1"

DOWEL

1шт.

14

3144700R1

GEAR

BALANCER DRIVE

1шт.

15

3144701R91

BALANCER

ASSY CPTE, CONSISTS OF ITEMS 16 THRU 19

1шт.

3228375R91

BALANCER

SET, MATCHED, WEIGHTS ASSY, CONSISTS OF ITEMS 16 AND 17

1шт.

17

3144704R91

WEIGHT

ASSY, DRIVE, ORDER SET 3228375R91

1шт.

18

3144706R91

WEIGHT

ASSY, IDLER, ORDER SET 3228375R91

1шт.

19

3132878R11

PIN,23mm OD x 93mm L

AXLE, BALANCER WEIGHT

2шт.

20

3144702R91

HOUSING

BALANCER WEIGHT W/BUSHINGS, INCLUDES: PINS, BOLTS AND WASHERS

1шт.

932229R1

SPLIT PIN/SAFETY PIN

ROLL 4 X 20 MM

2шт.

932299R1

LOCK PIN,M2.5 x 20, Slotted

Roll

2шт.

179871

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

BOLT, HEX HD 7/16 X 3-1/4

1шт.

179872

BOLT,Hex, 7/16" - 14 x 3 1/2", Gr 5

BOLT, HEX HD 7/16 X 3-1/2

1шт.

3218543R1

LOCK WASHER

LOCK

3шт.

179874

BOLT,Hex, 7/16" - 14 x 4", Gr 5

1шт.

21

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

1шт.

22

932169R2

LARGE PIN

PIN, LARGE ROLL 4 X 10

2шт.

3228133R91

SEAL KIT

SERVICE CRANKSHAFT OIL SEAL W/RING 713778R1, AS REQUIRED

1шт.
