1
3228036R91

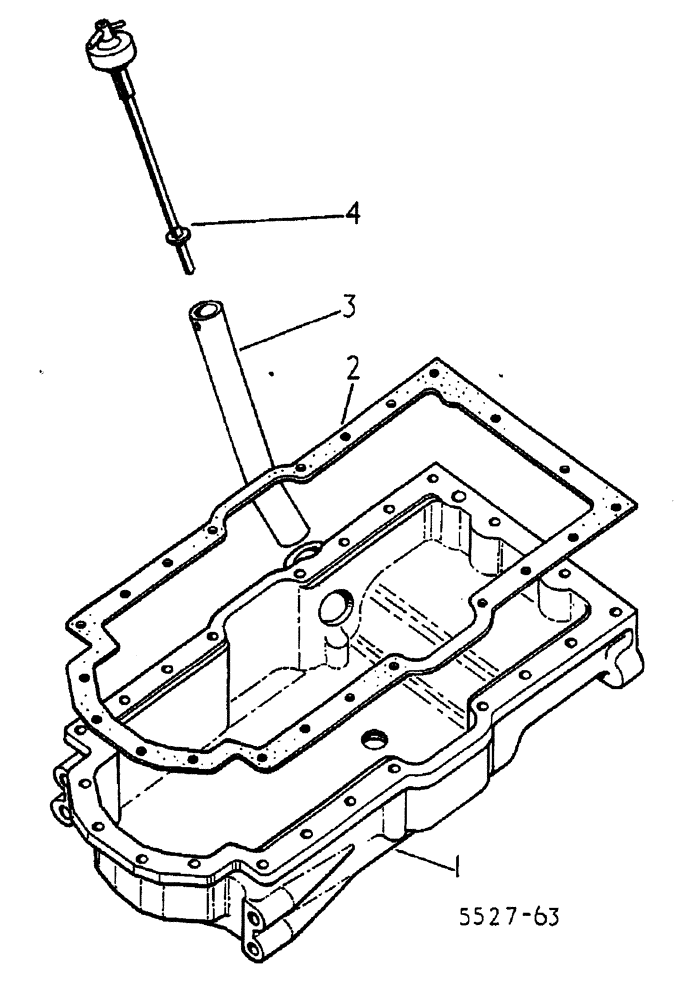

PAN, ENGINE OIL
PAN, OIL ASSY., INCLUDES: SCREWS, WASHERS, PLUG AND RING
1шт.
179819
BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5
4шт.
179818
BOLT,Hex, 5/16" - 18 x 1", Gr 5
13шт.
3050129R1
LOCK WASHER
WASHER, 5/16 MED LOCK
18шт.
3218395R1
BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk
4шт.
186273
BOLT,Hex, 5/16" - 18 x 4 1/4", Gr 5
5/16-18 X 1-1/8 HEX HD CAP
3шт.
186275
BOLT,Hex, 5/16" - 18 x 5 1/2", Gr 5
5/16-18 X 4-1/4 HEX HD CAP
2шт.
3132544R2
PLUG
FILLTER AND DRAIN
1шт.
933608R1
SEALING RING,M26 x 31 x 2
1шт.
2
3144697R1
GASKET
OIL PAN
1шт.
3
3136241R1
TUBE,29.556 mm OD, 250 mm Length
PIPE, OIL FILLING
1шт.
4
3136242R2
DIPSTICK
GAGE ASSY, OIL LEVEL
1шт.
