Запчасти Case IH 884 (12-048) - CRANKCASE SIDE COVER AND BREATHER Power

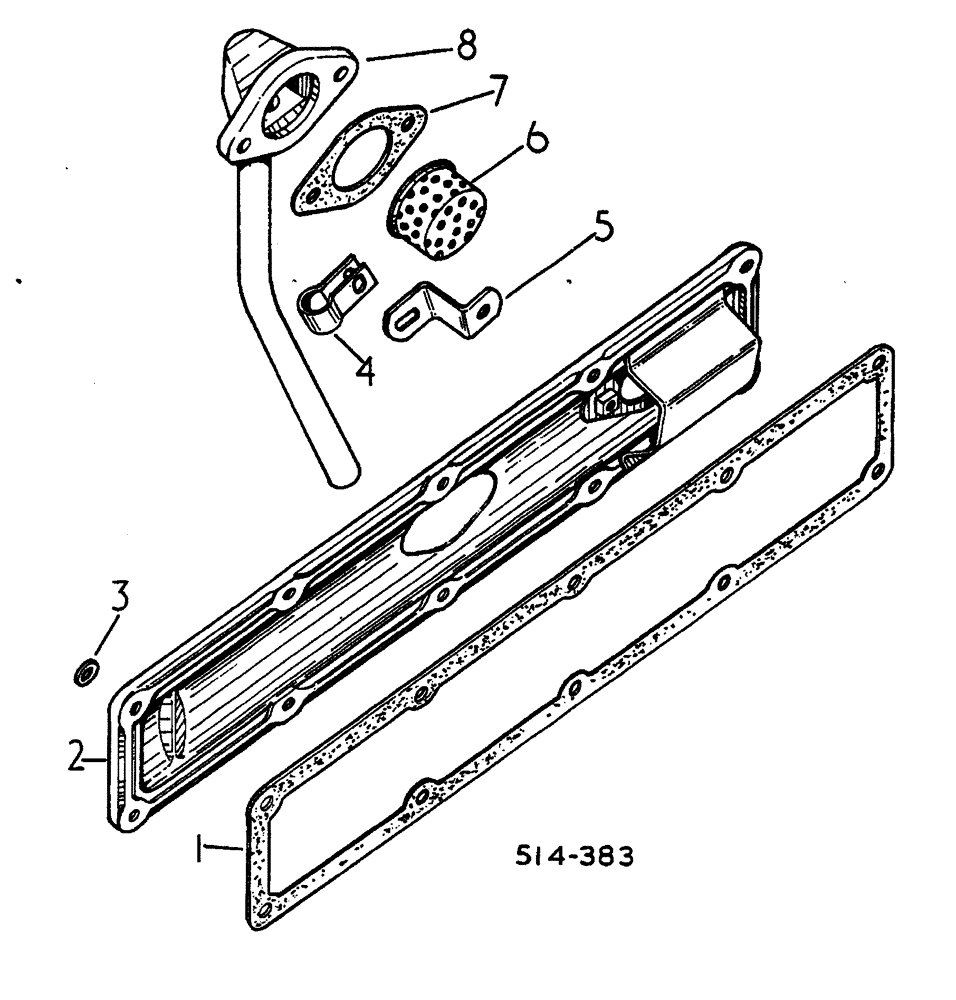

Схема запчастей Case IH 884 - (12-048) - CRANKCASE SIDE COVER AND BREATHER Power
7
5
3
6
2
4
8
1

Артикул

Название

Примечание

Количество

1

3055393R2

GASKET

SIDE COVER

1шт.

1

3136173R1

GASKET

SIDE COVER, OPTIONAL

1шт.

2

3055314R11

COVER ASSY

CRANKCASE SIDE, BOSCH INJECTION, INCLUDES: SCREWS AND WASHERS

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

12шт.

3050129R1

LOCK WASHER

WASHER

12шт.

3

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

335 X 748 X 098

12шт.

4

3144023R1

CLAMP

INCLUDES: SCREW, WASHER AND NUT

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

80681

LOCK WASHER,5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

5

3144022R1

BRACKET

LINK, FIXING, INCLUDES: SCREW AND WASHER

1шт.

179900

BOLT,Hex, 9/16" - 12 x 3/4", Gr 5

5/16-12 X 3/4 HEX HD CAP

1шт.

103324

LOCK WASHER,9/16"

1шт.

6

3055324R92

HYDRAULIC OIL FILTER

ELEMENT ASSY, BREATHER

1шт.

7

3138639R1

GASKET

CRANKCASE BREATHER

1шт.

8

3144020R91

BREATHER ASSY.

CRANKCASE, INCLUDES: SCREWS AND RINGS

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5/16-18 X 3/4 HEX HD CAP

2шт.

3138687R1

RING

PACKING

2шт.

8

3144789R1

COVER

USED W/VALVE COVER ATTACHMENT

1шт.
