Запчасти Case IH 884 (12-032) - FOOT ACCELERATOR - MACHINES NOT FITTED WITH CAB Power

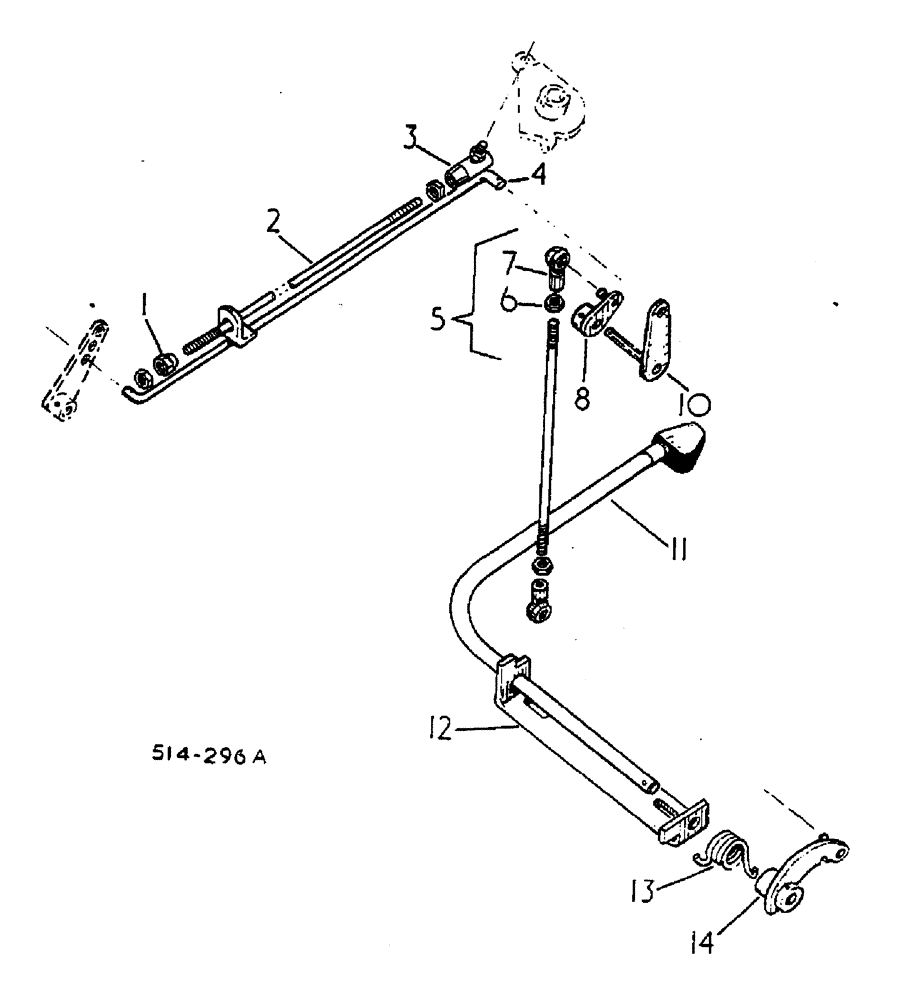

Схема запчастей Case IH 884 - (12-032) - FOOT ACCELERATOR - MACHINES NOT FITTED WITH CAB Power
3
2
11
13
12
8
6
1
4
7
14
5

Артикул

Название

Примечание

Количество

1

528776R1

NUT

FOOT ACCELERATOR PICK-UP ROD SWIVEL, INCLUDES: NUT 1/4-28

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1шт.

2

528775R1

ROD

FOOT ACCELERATOR PICK-UP

1шт.

3

191474

BALL JOINT

1/4 UNF

1шт.

3

192227

BALL JOINT

1/4 UNF

1шт.

3

27258R1

BALL JOINT

1/4 UNF, OPTIONAL , INCLUDES: NUTS AND WASHER

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1шт.

25-114

NUT,1/4"-28, G5

1/4-28 HEX

1шт.

103319

LOCK WASHER,1/4"

1шт.

4

528767R1

ROD ASSY.

BELLCRANK, INCLUDES: PINS

1шт.

NLS

NO LONGER SERVICED

PIN, COTTER 1/16 X 1/2

2шт.

5

532108R1

ROD ASSY.

CONNECTING

1шт.

6

114501

JAM NUT,Jam, 1/4"-20, G5

2шт.

7

3068537R1

TRUNNION

END, CONNECTING ROD

2шт.

8

532104R1

LEVER ASSY.

BELLCRANK INNER

1шт.

9

NOT APPLICABLE

1шт.

10

532100R2

ARM ASSY.

BELLCRANK, INCLUDES: WASHERS, PIN AND SPACER

1шт.

120394

WASHER,3/8", SAE

13/32 X 13/16 X 051

2шт.

19368R1

PIN,5/32" x 1", Coiled

1шт.

754603R1

SPACER

1шт.

11

532096R2

PEDAL ASSY.

FOOT ACCELERATOR

1шт.

12

532093R4

SUPPORT ASSY.

FOOT ACCELERATOR PEDAL, INCLUDES: SCREWS AND NUTS

1шт.

181336

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

2шт.

425-115

NUT,5/16"-24, G5

2шт.

13

532099R1

SPRING

FOOT ACCELERATOR PEDAL RETURN

1шт.

14

532102R1

LEVER ASSY.

BELLCRANK OUTER, INCLUDES: PIN

1шт.

19368R1

PIN,5/32" x 1", Coiled

1шт.

3228040R91

ENGINE

ENGINE, CPTE SERVICE, INTERNATIONAL 884 TRACTORS WITH SM DRIVE AND BOSCH INJECTION PUMP

1шт.

3136799R98

GASKET KIT

PACKAGE, CYLINDER HEAD GASKET, CONSISTS OF

1шт.

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

INJECTION NOZZLE

4шт.

3053133R1

SEALING RING,M8 x 11.5 x 1

PACKING

8шт.

3138642R1

GASKET

VALVE HOUSING COVER

1шт.

3055278R1

MANIFOLD GASKET

INTAKE MANIFOLD

1шт.

3055398R1

GASKET

INTAKE MANIFOLD, OPTIONAL

1шт.

3055306R1

GASKET

WATER COLLECTING PIPE

4шт.

3138638R1

RING,7.5mm ID x 15mm OD x 4mm Thk

DISC VALVE HOUSING COVER

4шт.

3056941R1

SEALING WASHER,6.5mm ID x 12mm OD x 1mm Thk

RING, PACKING

4шт.

3132143R1

GASKET

WATER OUTLET THERMOSTAT

1шт.

3138959R2

GASKET

CYLINDER HEAD

1шт.

3228362R1

CYLINDER HEAD GASKET

CYLINDER HEAD NON TORQUE

1шт.

3132434R1

MANIFOLD GASKET,0.5mm Thk

EXHAUST MANIFOLD

1шт.

3218399R1

PACKAGE

VALVE STEM SEAL

2шт.

3136813R97

GASKET KIT

PACKAGE, CRANKCASE, CONSISTS OF

1шт.

41-3044

PLUG,Exp, 2 3/4"

EXPANSION

1шт.

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

1шт.

710097R2

SEALING RING,14mm ID x 18mm OD x 1.5mm Thk

Packing

1шт.

713778R1

O-RING,3mm Thk x 55mm ID

1шт.

714868R1

SEALING STRIP

SEALING

1шт.

717222R1

O-RING

1шт.

933087R2

SEALING RING,10mm ID x 13.5mm OD x 1mm Thk

Packing

1шт.

933608R1

SEALING RING,M26 x 31 x 2

1шт.

3138687R1

RING

PACKING

2шт.

3055295R91

NUT

RING, TACHOMETER DRIVE SEAL

1шт.

3228348R1

RING,4.75mm Thk x 109.16mm ID

CYLINDER SLEEVE

4шт.

3138640R1

GASKET

INJECTION PUMP COVER

1шт.

3055161R1

GASKET

OIL PAN

1шт.

3055177R1

GASKET

WATER PUMP

1шт.

3055199R1

O-RING

OIL SUCTION PIPE

9шт.

3055215R1

GASKET

CRANKSHAFT SEAL RETAINER

1шт.

3055237R1

GASKET

OIL FILTER BASE

1шт.

3055239R1

GASKET

FRONT PLATE

1шт.

3055260R1

O-RING

WATER PUMP SEAL

1шт.

3138639R1

GASKET

CRANKCASE BREATHER

1шт.

3055384R1

GASKET

FUEL INJECTION PUMP

1шт.

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

3055393R2

GASKET

SIDE COVER, OPTIONAL

1шт.

3055952R2

O-RING

OIL PUMP SEALING

2шт.

3055961R1

GASKET

OIL PUMP

1шт.

3055999R1

GASKET

WATER PUMP CARRIER

1шт.

3132541R1

GASKET

CLOSING COVER

1шт.

933610R1

SEALING RING,M14 x 18 x 1.8

Packing

4шт.

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

3шт.

3055389R2

O-RING,2.5mm Thk x 32mm ID, 70 Duro

1шт.

3132869R1

O-RING

2шт.

933155R1

SEALING RING,M16 x 20 x 1.5

1шт.

3136406R1

GASKET

COVER

1шт.

3136674R2

BLADE

PRODUCT-GRAPHIC

1шт.

Выбрано товаров: 77
