Запчасти Case IH 884 (12-018) - UNDERSLUNG EXHAUST Power

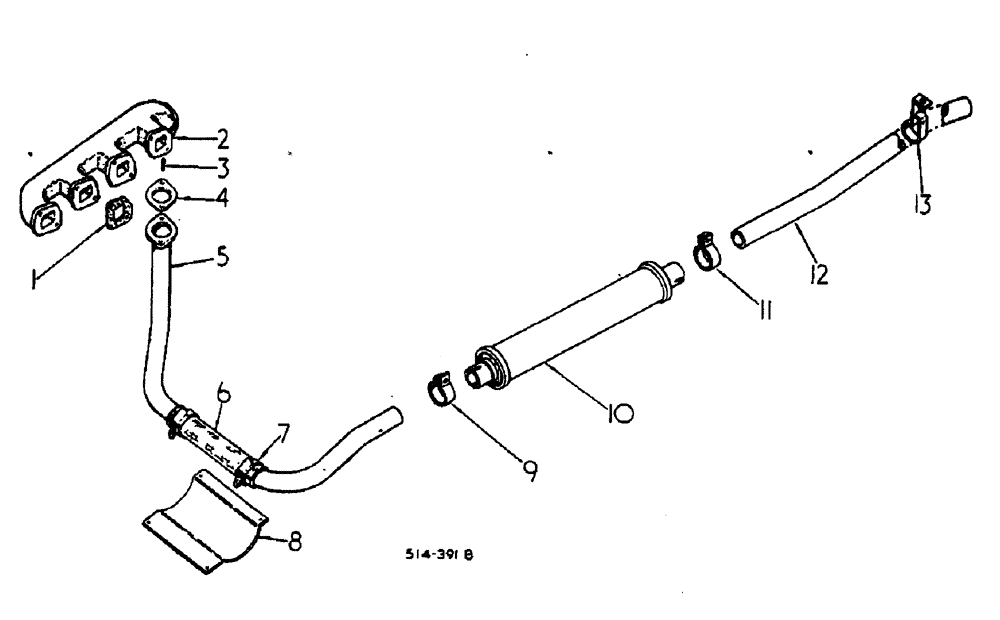

Схема запчастей Case IH 884 - (12-018) - UNDERSLUNG EXHAUST Power
1
2
5
6
12
8
3
4
11
7
9
10
13

Артикул

Название

Примечание

Количество

1

3132434R1

MANIFOLD GASKET,0.5mm Thk

EXHAUST MANIFOLD

4шт.

2

3055276R12

MANIFOLD ASSY

EXHAUST

1шт.

3

3055663R1

STUD

3/8-16 X 1-29/64, INCLUDES: NUTS AND WASHERS

2шт.

103026

NUT,3/8"-24, G5

10шт.

103321

LOCK WASHER,3/8"

2шт.

20285H

WASHER

13/32 X 3/4 X 11 GA

8шт.

4

401486R1

MANIFOLD GASKET

EXHAUST MANIFOLD PIPE

1шт.

5

401485R12

PIPE ASSY.

EXHAUST MANIFOLD

1шт.

6

114614C1

SHIELD

FIBREGLASS HEAT

1шт.

7

279038R91

HOSE CLAMP,#32, 1.56/2.50 Type F Worm

NO 32 HOSE

2шт.

8

401488R1

GUARD

PIPE, INCLUDES: SCREWS AND WASHERS

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

103321

LOCK WASHER,3/8"

4шт.

9

67672C1

CLAMP

MUFFLER, INCLUDES: SCREW, WASHER AND NUT

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

3/8-16 X 1-1/8 HEX HD CAP

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

10

401489R2

MUFFLER

1шт.

11

67672C1

CLAMP

MUFFLER, INCLUDES: SCREW, WASHER AND NUT

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

3/8-16 X 1-1/8 HEX HD CAP

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

12

401490R2

PIPE

TAIL

1шт.

13

3125262R1

SUPPORT

TAIL PIPE REAR, INCLUDES: SCREWS AND WASHER

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

3/8-16 X 1-1/8 HEX HD CAP

1шт.

271714

BOLT,Hex, 5/8" - 11 x 7/8", Gr 5

5/8-11 X 7/8 HEX HD CAP

1шт.

492-11062

BEARING WASHER,5/8"

1шт.

Выбрано товаров: 27
