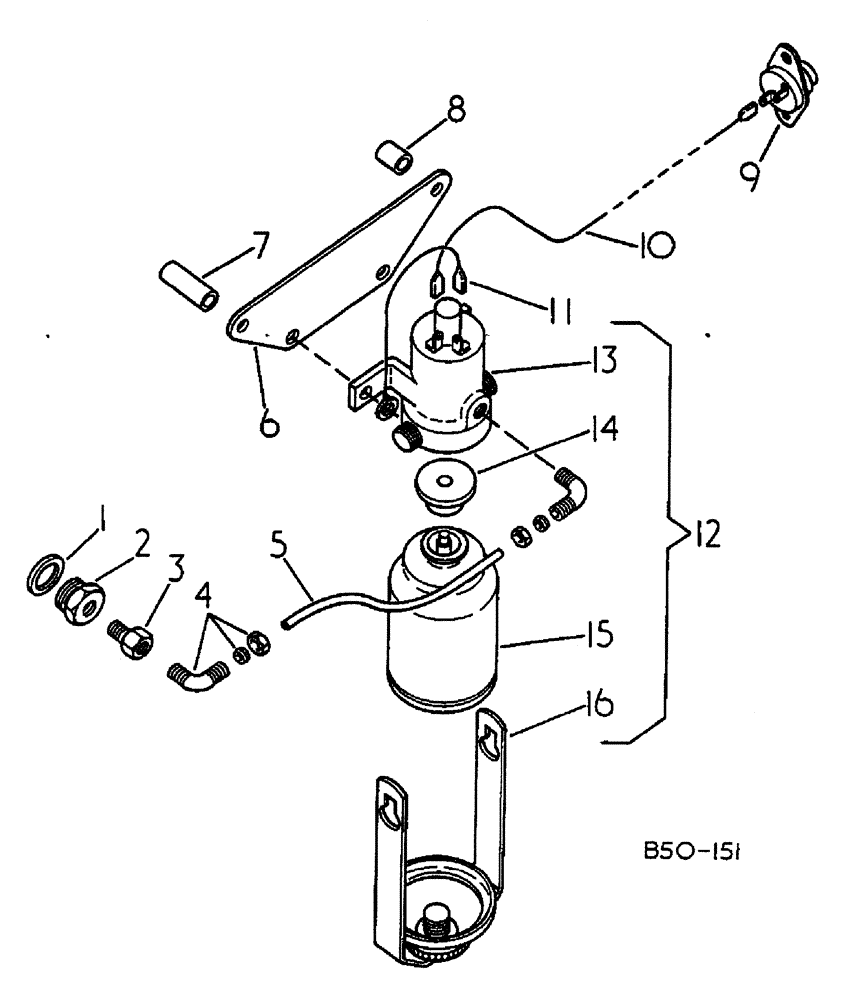

1
933945R1
SEALING RING,M23 x 28 x 2.5
1шт.
2
3116081R1
JET
ADAPTOR, ETHER NOZZLE
1шт.
3
269635R91
NOZZLE CAP
STARTING FLUID
1шт.
4
140304
ELBOW
1/8-27 90 DEG BALL SLEEVE TUBE
2шт.
5
3125260R1
PIPE
INJECTOR FEED
1шт.
6
3125259R1
SUPPORT
SPARE PART INJECTION MOUNTING
1шт.
7
1106106C1
SPACER
INCLUDES: SCREW
1шт.
413-432
BOLT,Hex, 1/4" - 20 x 2", Gr 5
1/4-20 X 2 ZND HEX HD CAP
1шт.
8
301645R1
SPACER
INCLUDES: SCREW
1шт.
87716
BOLT,1/4"-20 x 1-1/4", Cl 5
1шт.
9
397940R93
SWITCH
PUSH BUTTON ETHER, INCLUDES: SCREWS AND NUTS
1шт.
436730
LOCK SCREW,Slotted Pan Hd, #10-24 x 3/8"
10-24 X 3/8 C-Z SLT PAN HD MC
2шт.
120361
NUT,Hex Mach Screw, #10 - 24
2шт.
10
3125261R1
CABLE ASSY.
ETHER SWITCH TO SOLENOID
1шт.
11
3116503R1
CABLE
SPARE PART ETHER SOLENOID TO GROUND
1шт.
12
533231R92
SOLENOID
INJECTOR ASSY, ETHER, CONSISTS OF ITEMS 14 - 17, INCLUDES: SCREWS, WASHERS AND NUTS
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16-18 X 3/4 ZND HEX HD CAP
2шт.
80681
LOCK WASHER,5/16"
2шт.
120376
NUT,5/16"-18, G5
2шт.
13
INJECTOR ASSY., NOT SERVICED SEPARATELY
1шт.
14
395686R1
GASKET
ETHER STARTING INJECTOR
1шт.
15
385064R91
FLUID
ETHER STARTING -12 OZ CAN
1шт.
16
121851C1
RETAINER
ETHER FLUID CANNISTER
1шт.
