Запчасти Case IH 884 (04-012) - BRAKE RESERVOIR AND HOSES SYNCHRO (5.1) - BRAKES

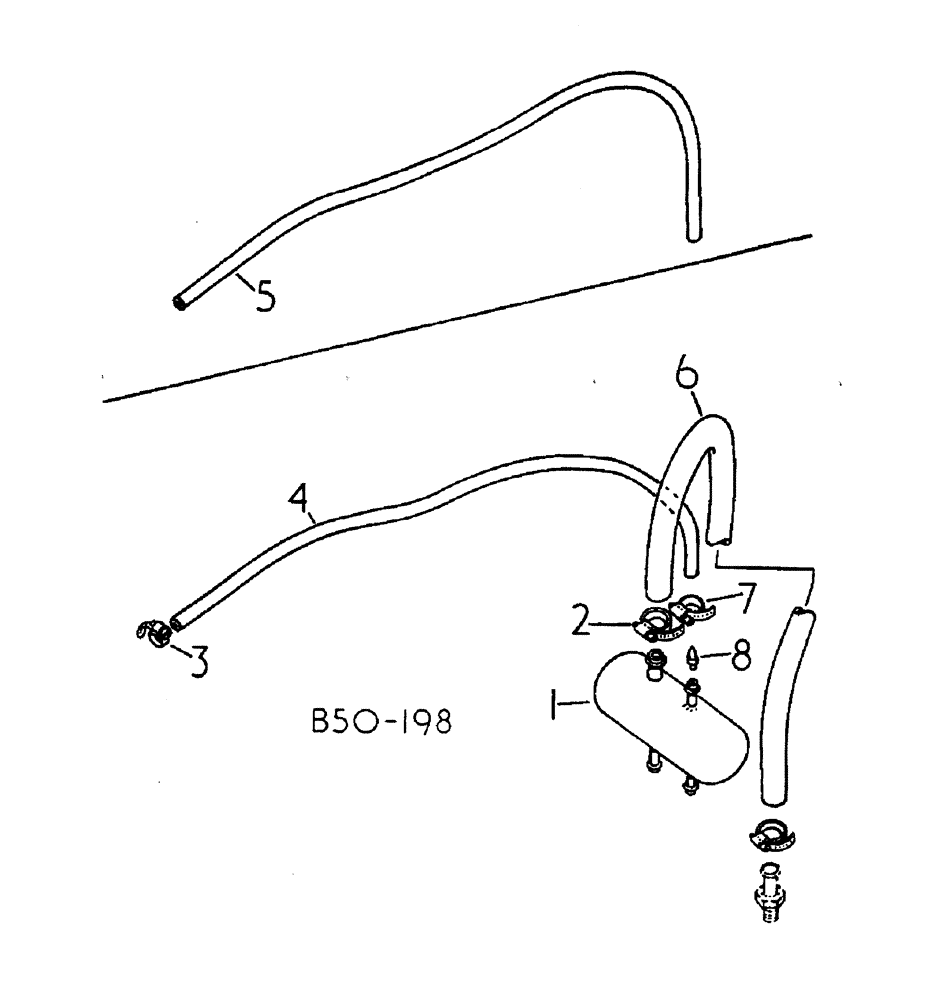

Схема запчастей Case IH 884 - (04-012) - BRAKE RESERVOIR AND HOSES SYNCHRO (5.1) - BRAKES
4
2
7
1
5
6
3
8

Артикул

Название

Примечание

Количество

1

3125839R1

RESERVOIR

brake

1шт.

2

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

NO 10

2шт.

2

3074617R1

CLAMP

hose, optional

2шт.

3

3125239R91

CLAMP, worm drive hose

1шт.

4

3125841R1

HOSE,8.50 mm ID x 580.00 mm, SAE 100R6 Class 14

SUPPLY brake reservoir, machines w/cab

1шт.

5

3125841R1

HOSE,8.50 mm ID x 580.00 mm, SAE 100R6 Class 14

SUPPLY brake reservoir, machines w/out cab

1шт.

6

3125842R1

HOSE,13.50 mm ID x 250.00 mm, SAE 100R6 Class 14

DUMP brake reservoir

1шт.

7

3125239R91

CLAMP, worm drive hose

1шт.

8

537518R1

SCREEN

AND ORIFICE ASSEMBLY, brake

1шт.

Выбрано товаров: 9
