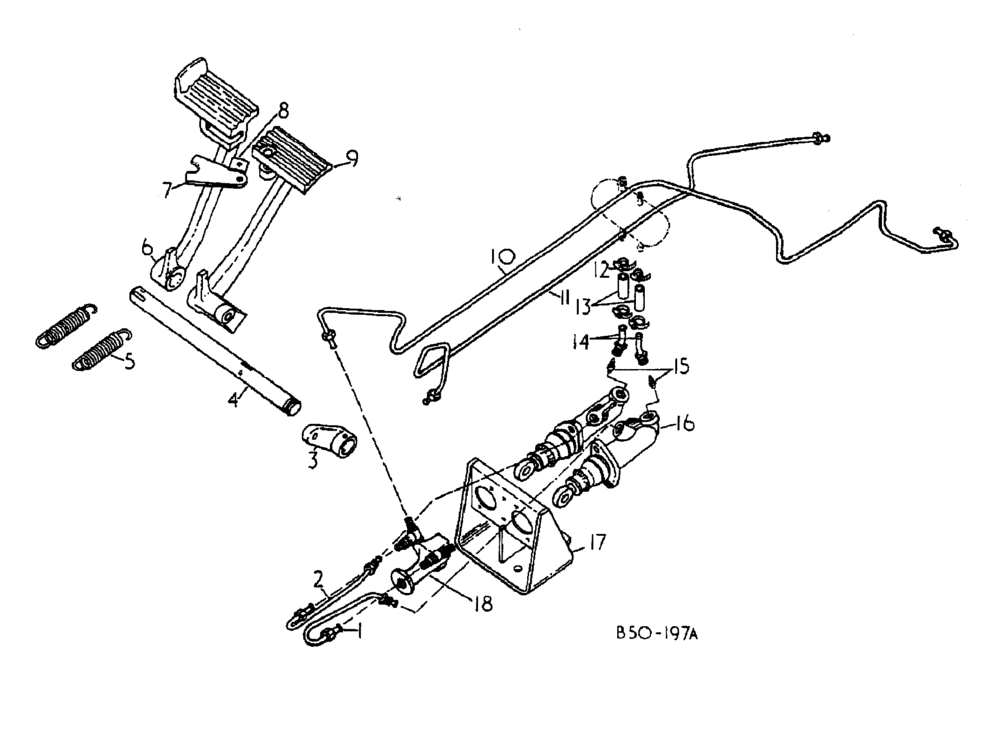

Запчасти Case IH 884 (04-010) - BRAKE CYLINDERS AND CONNECTIONS (5.1) - BRAKES

1

530851R2

TUBE

EQUALISER L. H.

1шт.

2

530852R1

TUBE

EQUALISER R. H.

1шт.

3

3215228R1

ARM, R. H. brake medal, Includes: pin

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

up to s/n 2005 5/16" x 1 1/2", Coiled

1шт.

3

1500755C1

ARM

BRAKE R. H. pedal, Includes: pin and key

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

1/4" x 1 1/2", Coiled

1шт.

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

woodruff, 1/4 x 7/8, S/N 2006 up

1шт.

4

3125229R1

SHAFT

PEDAL SUPPORT, synchromesh drive tractors, to - UP TO S/N 2005

1шт.

4

1500753C1

SHAFT

PEDAL SUPPORT - S/N 2006 UP

1шт.

5

3125230R1

SPRING

RETURN brake pedal

2шт.

6

399741R4

PEDAL

BRAKE R. H., Includes: pin

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

up to s/n 2005 5/16" x 1 3/4", Coiled

1шт.

6

1500752C1

PEDAL

BRAKE R. H., Includes: pin, key, bolt, nut and washer

1шт.

19795

PIN, coiled spring, 1/4 x 1-3/4 HV

1шт.

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

woodruff, 1/4 x 7/8, S/N 2006 up

1шт.

399744R1

BOLT

BOLT, brake pedal adjusting

1шт.

103026

NUT,3/8"-24, G5

1шт.

103321

LOCK WASHER,3/8"

1шт.

7

43751DD

PLATE, brake pedal lock, Includes: rivet

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

1/4 x 1-1/4 SMALL BHD SOLID

1шт.

8

51293D

SPRING

TENSION brake pedal lock

1шт.

9

3125226R91

PEDAL ASSY.

BRAKE L. H., Includes: bolt, nut, washer and fitting

1шт.

Bushing used to mount 3125226R91 pedal is 539834R1 per notes in catalogs

1шт.

399744R1

BOLT

BOLT, brake pedal adjusting

1шт.

103026

NUT,3/8"-24, G5

1шт.

103321

LOCK WASHER,3/8"

1шт.

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

1шт.

10

66093C1

BRAKE LINE

BRAKE, L. H., 884

1шт.

10

3129260R1

TUBE ASSY.

BRAKE, L. H., 885

1шт.

11

66094C1

BRAKE LINE

BRAKE R. H.

1шт.

12

3125239R1

COLLAR

HOSE worm drive

4шт.

13

3125843R1

HOSE,7.925 mm ID x 45.00 mm, SAE 30R6 or SAE 30R7

2шт.

14

3125836R1

TUBE ASSY.,23, 35 mm Length

BRAKE CYL SUPPLY

2шт.

15

537849R2

SCREEN

AND ORIFICE ASSEMBLY BRAKE RESERVOIR SUPPLY

2шт.

16

527542R92

CYLINDER

ASSEMBLY brake master, Includes: hose, insulator and seal kit

2шт.

16

527542R92GV

BRAKE CYLINDER

Value, Brake, Master Cylinder Assy.

2шт.

(P/N 527542R92) - Seal Kit for Brake Master 3125824R1

1шт.

71925C1

HOSE

SPARE PART master brake CYL retainer

1шт.

71926C1

BELLOWS

DUST insulator brake CYL

1шт.

3125824R1

SEAL KIT

KIT, seal, as REQD

1шт.

17

3125224R1

BRACKET

ASSEMBLY, brake CYL mounting, synchromesh drive tractors, Includes: screws, washers, nuts

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

3шт.

181338

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

4шт.

425-115

NUT,5/16"-24, G5

4шт.

103320

LOCK WASHER,5/16"

4шт.

18

530374R92

VALVE

ASSEMBLY, brake equalizer, Includes: washers tees, screws and package - equalizer valve o-ring seal service

1шт.

530373R1

WASHER

equalizer valve

2шт.

9411128

TEE,7/16"-20, 37 Degree x 7/16"-20, O-Ring Run

ADJ STR THRU 90 DEG

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

2шт.

68434C3

SEAL PACKAGE

O-RING equalizer valve seal service

1шт.
