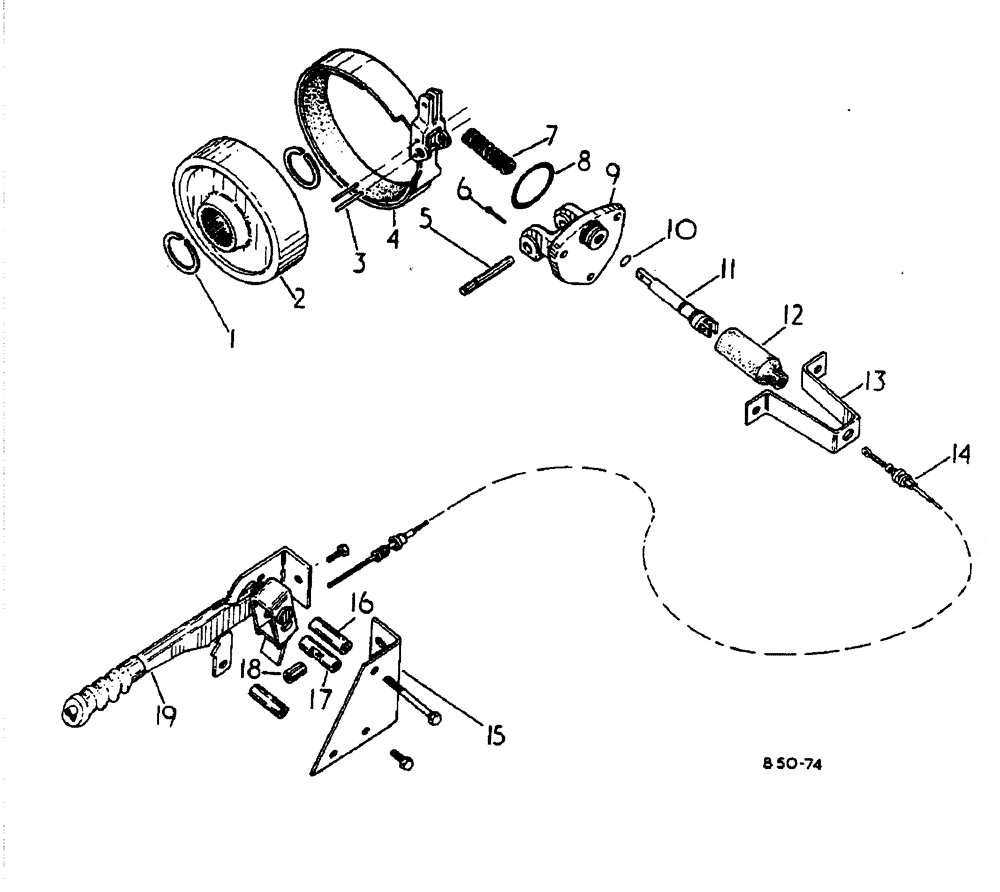

Запчасти Case IH 884 (04-004) - PARK LOCK (5.1) - BRAKES

1

67628C1

CIRCLIP

SHIM, bevel pinion 093

1шт.

1

67568C1

CIRCLIP

SHIM, bevel pinion 066

1шт.

1

67569C1

CIRCLIP

SHIM, bevel pinion 069

1шт.

1

67570C1

CIRCLIP

SHIM, bevel pinion 072

1шт.

1

67571C1

CIRCLIP

SHIM, bevel pinion 075

1шт.

1

66077C1

CIRCLIP

SHIM, bevel pinion 078

1шт.

1

67572C1

CIRCLIP

SHIM, bevel pinion 081

1шт.

1

67573C1

SNAP RING,2.13mm Thk, Ext

SHIM, bevel pinion 084

1шт.

1

67574C1

CIRCLIP

SHIM, bevel pinion 087

1шт.

1

67575C1

CIRCLIP

SHIM, bevel pinion 090, as required, standard machines

1шт.

1

327058R1

RING, SNAP

RING SNAP retaining, 4 wheel drive

2шт.

2

66074C1

HUB

DRUM brake, standard machines

1шт.

2

399828R1

HUB

DRUM brake, Includes: key

1шт.

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

4-Wheel Drive

1шт.

3

535544R1

PIN

ANCHOR

2шт.

4

401992R3

BAND

ASSEMBLY, brake and actuating toggle, Includes: pins

1шт.

16616R1

CLEVIS PIN,5/16" x .940"

rod end, 5/16 x 31/32

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

5

401998R1

PIVOT PIN

PIVOT parking brake

1шт.

6

32-822

COTTER PIN,1/8" x 1 3/8"

1шт.

7

402000R1

SPRING

parking brake return

1шт.

8

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

2-9/16 x 2-3/4 x 3/32

1шт.

9

401997R1

PIVOT

parking brake, Includes: screws and washer

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3шт.

103321

LOCK WASHER,3/8"

1шт.

10

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 x 1/16

1шт.

11

402014R1

PLUNGER

parking brake pivot, Includes: pins and washer

1шт.

702269R1

HEADED PIN,5/16" x 15/16"

5/16 x 15/16 STD HD

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x 051

1шт.

103384

COTTER PIN,1/8" x 3/4"

1шт.

12

402015R1

BOOT

cable protection

1шт.

13

401999R1

SUPPORT

BRACKET, cable HSG anchor lower

1шт.

14

529084R1

NO LONGER SERVICED

CABLE ASSEMBLY, parking brake, order 3129788R2, w/pin 3129789R1 block 3129790R1, and nut 144418H

1шт.

14

3129788R2

CABLE ASSY.

parking brake, Includes: springs and nuts

1шт.

148150

HAIR PIN COTTER,3/8" Retainer

SPRING, retainer 3/8

2шт.

114493

JAM NUT,Jam, 5/16"-24, G5

2шт.

14

3123901R1

CABLE

brake, order 1500021C1, w/pin 3129789R1 block 3129790 and nut 144418H

1шт.

14

1500021C1

CABLE ASSY.

parking brake, super deluxe cab

1шт.

15

3121680R1

BRACKET

ASSEMBLY, hand brake support, Includes: screws, washers and nuts

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

SCREW, hex HD CAP, 3/8-16 x 3

2шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

hex HD, 3/8-16 x 5/8

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

16

11531N

SPACER,3/8" Pipe x 2"

675 x 493 x 20 long

2шт.

17

3121683R1

PIN

CABLE parking brake, Serial Range: up-1260

1шт.

17

3129789R1

PIN,16mm OD x 50mm L

CABLE park brake, 1261 up

1шт.

18

48094K

SPACER

5 x 334 x 938 LONG, Serial Range: up-1260

1шт.

18

3129790R1

BLOCK

CABLE park brake, 1261 up

1шт.

19

3121682R92

LEVER ASSY.

HAND park brake, for details see list of items under park brake hand, lever

1шт.
