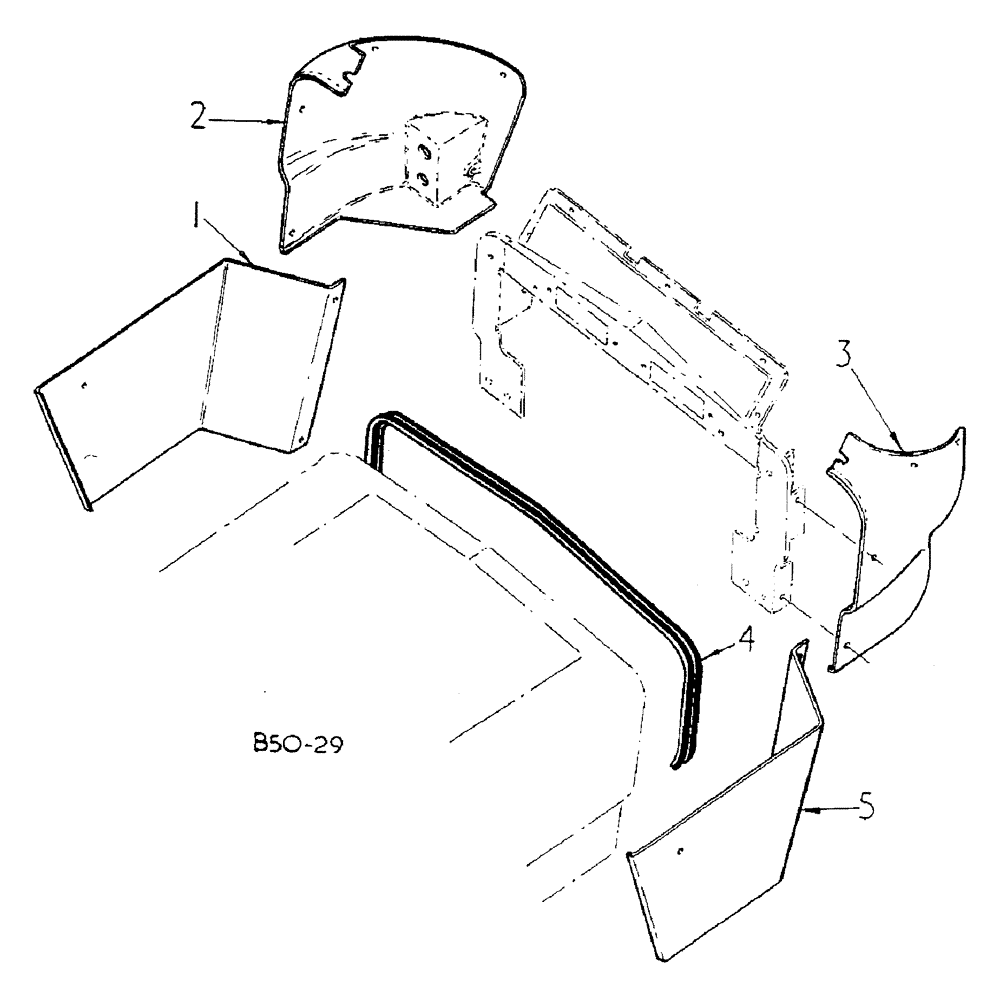

Запчасти Case IH 884 (13-004) - INSTRUMENT PANEL SIDE HOUSING Instruments

1

3121638R1

GUARD

PANEL, LOWER REAR SIDE R H

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

1/4-20 X 5/8 HEX - WASHER - HD CAP, MACHINES NOT FITTED W/CAB, INCLUDES: SCREWS

3шт.

1

3123010R1

PANEL

LOWER REAR SIDE R H, INCLUDES: SCREWS

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

1/4-20 X 5/8 HEX - WASHER - HD CAP

2шт.

3116384R1

SELF-TAP SCREW

NO. 10-16 X 1 HEX SLT HD TAP, MACHINES FITTED W/CAB

2шт.

2

3121710R1

HOUSING

INSTRUMENT PANEL SIDE R H, MACHINES FITTED W/CAB

1шт.

2

3121712R1

HOUSING

INSTRUMENT PANEL SIDE R H, MACHINES NOT FITTED W/CAB, INCLUDES: NUTS AND SCREWS

1шт.

3121715R1

SPRING NUT

REVERSE

3шт.

24394R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

10 X 5/8 PAN HD CR TYPE AB ZND

3шт.

3

3121709R1

HOUSING

INSTRUMENT PANEL SIDE L H, MACHINES FITTED W/CAB

1шт.

3

3121711R1

HOUSING

INSTRUMENT PANEL SIDE L H, MACHINES NOT FITTED W/CAB, INCLUDES: NUTS AND SCREWS

1шт.

3121715R1

SPRING NUT

REVERSE

3шт.

24394R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

10 X 5/8 PAN HD CR TYPE AB ZND

3шт.

4

NSS

NOT SOLD SEPARAT

SEAL, HOOD SHEET - 1160 MM

1шт.

4

3121645R1

SEALING STRIP

RUBBER SEALING STRIP, BULK LENGTH 50 YDS

1шт.

5

3121637R1

GUARD

PANEL, LOWER REAR SIDE L H, INCLUDES: SCREWS

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

1/4-20 X 5/8 HEX - WASHER - HD CAP, MACHINES NOT FITTED W/CAB

3шт.

5

3123009R1

PANEL

SPARE PART LOWER REAR SIDE L H, INCLUDES: SCREWS

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

1/4-20 X 5/8 HEX - WASHER - HD CAP

2шт.

3116384R1

SELF-TAP SCREW

NO. 10-16 X 1 HEX SLT HD TAP, MACHINES FITTED W/CAB

2шт.

1093231R1

PRODUCT GRAPHIC

INSTRUMENT HOUSING L H 884, NOT ILLUSTRATED

1шт.

1093232R1

PRODUCT GRAPHIC

INSTRUMENT HOUSING, R H 884, NOT ILLUSTRATED

1шт.

1135278R1

PRODUCT GRAPHIC

INSTRUMENT HOUSING, L H 885, NOT ILLUSTRATED

1шт.

1135279R1

PRODUCT GRAPHIC

INSTRUMENT HOUSING, R H 885, NOT ILLUSTRATED

1шт.
