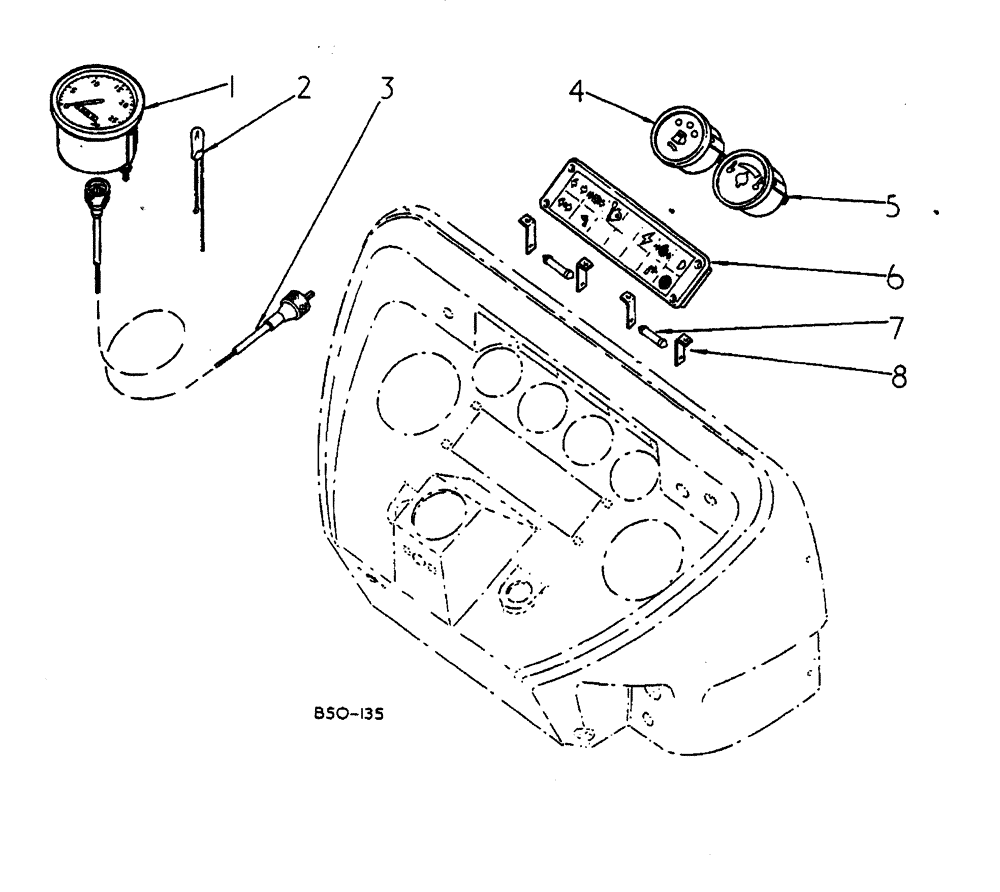

Запчасти Case IH 884 (11-004) - INSTRUMENTS - TACHOMETER Instruments

1

3121926R91

TACHOMETER

1шт.

1

3121927R91

TACHOMETER

1шт.

1

528364R92

TACHOMETER

OPTIONAL , INCLUDES: PRODUCT GRAPHICS

1шт.

1093093R1

DECAL

PRODUCT-GRAPHIC, SPEED CHART M P H, FOR MACHINES W/BT DRIVE TRAIN, ROW CROP

1шт.

1093093R1

DECAL

PRODUCT-GRAPHIC, SPEED CHART M P H, FOR MACHINES W/BT DRIVE TRAIN, ROW CROP

1шт.

1093095R1

DECAL

PRODUCT-GRAPHIC, SPEED CHART MPH, FOR MACHINES W/BT DRIVE TRAIN

1шт.

1093225R1

DECAL

PRODUCT-GRAPHIC, SPEED CHART KPH, FOR MACHINES W/BT DRIVE TRAIN

1шт.

1093226R1

PRODUCT GRAPHIC

SPEED CHART MPH, FOR MACHINES W/DT DRIVE TRAIN

1шт.

1093227R1

PRODUCT GRAPHIC

SPEED CHART MPH, FOR MACHINES W/DT DRIVE TRAIN FOR MACHINES W/16 9/14-30, 13 6/ 12-36, 18 4/15-30, 13 6/12-38, 16 9/14-34, 13 6R36, 13 6R38, 18 4R30

1шт.

1093368R1

PRODUCT GRAPHIC

SPEED CHART MPH, FOR MACHINES W/BR DRIVE TRAIN

1шт.

1093369R1

PRODUCT GRAPHIC

SPEED CHART KPH, FOR MACHINES W/BR DRIVE TRAIN

1шт.

1093370R1

PRODUCT GRAPHIC

SPEED CHART K P H, FOR MACHINES W/AR DRIVE TRAIN

1шт.

1093371R1

PRODUCT GRAPHIC

SPEED CHART K P H, FOR MACHINES W/AR DRIVE TRAIN, 4 WHEEL DRIVE -W/13 6/12-38, 16 9/14-30 16 9/14-34 18 4/15-30 16 9R30 18 4R30 16 9R34 16 6R38 REAR TYRES

1шт.

2

3123661R1

HOLDER

LAMP ASSY, TACHOMETER, INCLUDES: LAMP

1шт.

529233R1

LAMP

12V-3W WEDGE TYPE, INCLUDES: CAPLESS

1шт.

NSS

NOT SOLD SEPARAT

CAPLESS

8шт.

3

529234R1

CABLE,1480.32mm L

CABLE ASSY, TACHO DRIVE, INCLUDES: STRAPS

1шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP Tacho

2шт.

3

537494R91

FLEXIBLE DRIVE SHAFT

CABLE ASSY, TACHO DRIVE, SUPER DE-LUXE CAB

1шт.

4

3121239R1

FUEL GAUGE

ASSY, FUEL, A C DELCO

1шт.

4

3129840R1

FUEL GAUGE

ASSY. ICKNIELD, OPTIONAL

1шт.

5

3121240R1

ELECTRICAL GAUGE

ASSY, WATER TEMP, A C DELCO

1шт.

5

3127959R1

ELECTRICAL GAUGE

ASSY, WATER TEMP, ICKNIELD, OPTIONAL

1шт.

6

3121636R1

HOLDER

WARNING LIGHT BULB, INCLUDES: SCREWS, NUTS AND LAMPS

1шт.

3121718R1

SCREW

NO 6-32 X 5/8 CS HD

4шт.

3121717R1

LOCK NUT

LOKUT

4шт.

529233R1

LAMP

12V-3W WEDGE TYPE CAPLESS

6шт.

7

710196R1

BULB,C5W, 12V, 5W

Festoon

2шт.

8

3121705R1

CONTACT HOUSING

LAMP, INCLUDES SCREWS AND TERMINALS

4шт.

3121704R1

SCREW

NO 4-40 X 5/16 SLT FIL HD

4шт.

3121704R1

SCREW

TERMINAL 1/4 BLADE

4шт.
