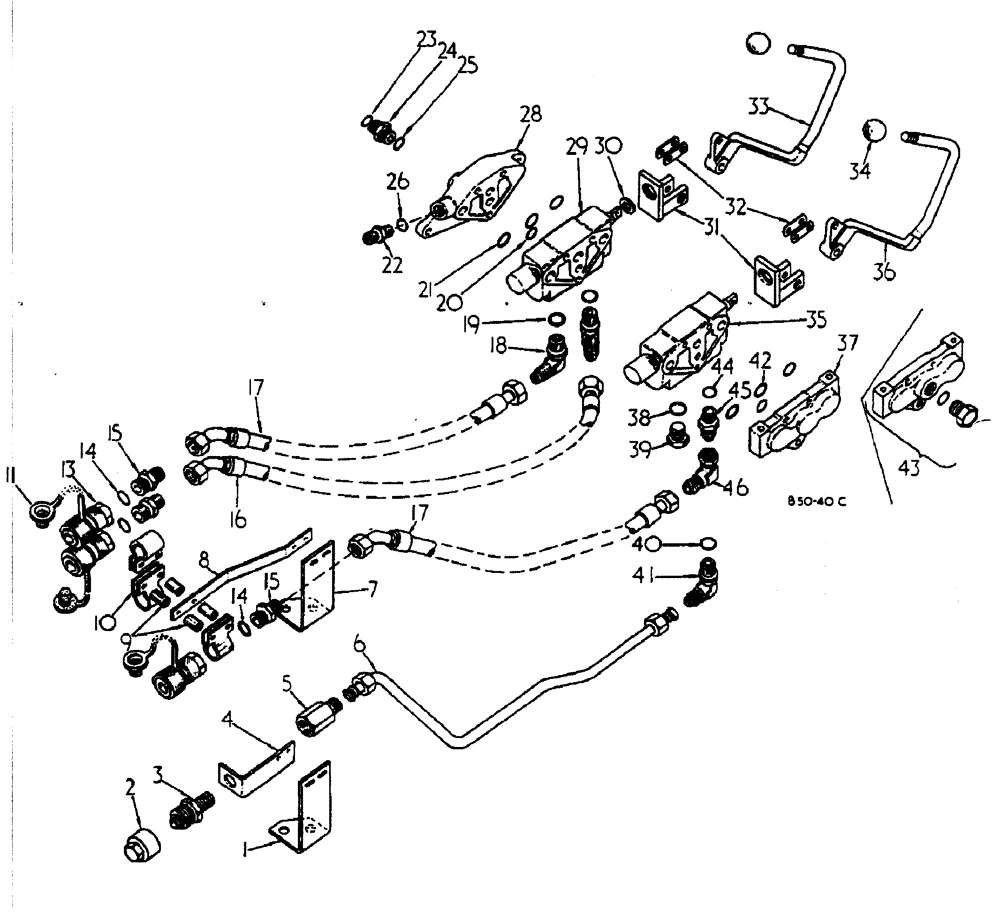

Запчасти Case IH 884 (10-016) - AUXILIARY VALVES (07) - HYDRAULICS

ATTACHMENT, SINGLE AUXILIARY HYDRAULIC VALVE, SINGLE ACTING VALVE AND SELF-SEALING COUPLING, FIRST BANK, CONSISTS OF ALL UNMARKED PARTS AND THOSE MARKED UNIT A

1шт.

ATTACHMENT, SINGLE AUXILIARY HYDRAULIC VALVE, DOUBLE ACTING VALVE AND TWO SELF-SEALING COUPLING, FIRST BANK, CONSISTS OF ALL UNMARKED PARTS AND THOSE MARKED UNIT B+

1шт.

ATTACHMENT, SINGLE AUXILIARY HYDRAULIC VALVE, SINGLE ACTING VALVE MUST BE USED IN CONJUNCTION W/FIRST BANK, SINGLE AUXILIAARY HYDRAULIC VALVE ATTACHMENT SECOND BANK CONSISTS OF ALL UNMARKED PARTS AND THOSE MARKED UNIT C

1шт.

ATTACHMENT, SINGLE AUXILIARY HYDRAULIC VALVE, DOUBLE ACTING VALVE AND MUST BE USED IN CONJUNCTION W/FIRST BANK, SINGLE AUXILIARY HYDRAULIC VALVE ATTACHMENT, SECOND BANK, CONSISTS OF ALL UNMARKED PARTS AND THOSE MARKED UNIT D

1шт.

ATTACHMENT, SINGLE AUXILIARY HYDRAULIC VALVE, SINGLE ACTING VALVE AND ONE SELF-SEALING BREAKAWAY COUPLING, FIRST BANK, CONSISTS OF ALL UNMARKED PARTS AND THOSE MARKED UNIT E

1шт.

ATTACHMENT, SINGLE AUXILIARY HYDRAULIC VALVE, SINGLE ACTING VALVE, SPECIAL FEATURE SCANDINAVIAN MARKET, CONSIST OF ALL UNMARKED PARTS AND THOSE MARKED UNIT F

1шт.

ATTACHMENT, SINGLE AUXILIARY HYDRAULIC VALVE W/DOUBLE ACTING VALVE, FIRST BANK, SPECIAL FEATURE AUSTRALIAN MARKET, CONSISTS OF ALL UNMARKED PARTS AND THOSE MARKED UNIT G

1шт.

ATTACHMENT, SINGLE AUXILIARY HYDRAULIC VALVE, SINGLE ACTING VALVE AND ONE SELF-SEALING BREAKAWAY COUPLING, SECOND BANK, CONSISTS OF ALL UNMARKED PARTS AND THOSE MARKED UNIT H

1шт.

1

533139R1

BRACKET

ASSY, BREAKAWAY COUPLING, UNIT A , INCLUDES: SCREWS AND WASHERS

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2-13 X 2 HEX HD CAP

2шт.

103323

LOCK WASHER,1/2"

2шт.

2

705573R1

SCREW

CAP, SELF-SEALING COUPLING DUST

1шт.

2

3041963R1

CAP

SCREWED SELF-SEALING COUPLING DUST, UNIT A, OPTIONAL

1шт.

3

705579R1

COUPLING

SCREWED SELF-SEALING

1шт.

3

3041962R91

COUPLING, BREAK AWAY

SELF SEALING, UNIT A, OPTIONAL

1шт.

4

533140R1

BRACKET

SCREW COUPLING, UNIT A, INCLUDES: SCREWS, NUTS AND WASHERS

1шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

1/4-20 X 7/8

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

2шт.

95-11028

WASHER,1/4"

9/32 X 5/8 X 051, UNIT A

2шт.

5

529708R1

ADAPTER

AUX VALVE TO COUPLING TUBE, INCLUDES: SEALS

1шт.

704337R1

SEALING WASHER

VALVE TO COUPLING TUBE ADAPTOR, UNIT A

2шт.

6

533138R1

TUBE ASSY.

W/SLEEVE AND NUTS, AUX VALVE TO COUPLING, UNIT A, INCLUDES: NUTS AND SLEEVES

1шт.

9403529

TUBE NUT,37 Degree, 7/8"-14, Type B

7/8-14 C-Z 37 DEG HYD FLARED TUBE

2шт.

9403451

SLEEVE,37 Degree, 5/8" Tube

5/8 C-Z 37 DEG HYD FLARED TUBE

2шт.

7

3113436R91

SUPPORT

BRACKET ASSY, SELF-SEALING COUPLING W/EDGE, UNIT B, E AND G, INCLUDES: SCREWS, WASHERS AND STRIP

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2-13 X 2 HEX HD CAP

2шт.

103323

LOCK WASHER,1/2"

2шт.

3113437R1

STRIP

MOULDING

1шт.

8

533143R1

BAR

BREAKAWAY COUPLING BRACKET, UNIT B, E AND G, SCREWS, WASHERS AND NUTS

1шт.

NLS

NO LONGER SERVICED

1/4-20 X 7/8 HEX HD

2шт.

103319

LOCK WASHER,1/4"

2шт.

95-11028

WASHER,1/4"

PLAIN

2шт.

109084

NUT,1/4"-20, G5

2шт.

9

3123061R1

SPACER

BREAKAWAY COUPLING, UNIT H

4шт.

10

3114106R1

CLAMP

COUPLING, UNIT B AND E

1шт.

10

3114106R1

CLAMP

COUPLING, UNIT B, INCLUDES: SCREWS, NUTS AND WASHERS

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

80681

LOCK WASHER,5/16"

2шт.

10

3114106R1

CLAMP

COUPLING, INCLUDES: SCREWS

1шт.

179830

Unit H

2шт.

11

373220R1

PLUG

SEAL

1шт.

11

401757R11

PLUG

INCLUDES: WASHER

1шт.

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

OPTIONAL, UNITS 2B AND E

1шт.

12

NOT USED

1шт.

13

3067993R91

COUPLING, BREAK AWAY

SELF-SEALING FEMALE, UNIT 2B AND E, INCLUDES: O-RING, WASHER, SEAL AND PLUG

1шт.

3115783R1

O-RING

FEMALE HALF

1шт.

3115782R1

BACK-UP RING

BACK UP

1шт.

373220R1

PLUG

SEAL, BREAKAWAY COUPLING DUST, UNIT 2B AND E

1шт.

401757R11

PLUG

BREAKAWAY COUPLING DUST

1шт.

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

BREAKAWAY COUPLING DUST, UNIT 2B AND E

1шт.

14

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE, UNIT 2B, E, 2G AND H

1шт.

15

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 DEG HYD FLARED, UNIT 2B, E, 2G AND H

1шт.

16

533141R2

HOSE

AUX VALVE TO COUPLING LONG HYD, UNIT B, E AND G

1шт.

16

533142R2

HOSE,12.7mm ID x 610mm L

AUX VALVE TO COUPLING SHORT HYD, UNIT B AND G

1шт.

18

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 C-Z 37 DEG HYD FLARED TUBE, ADJ STR THD 90 DEG, UNIT 2B, E AND 2G

1шт.

19

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE, UNIT 2B, E AND 2G

1шт.

20

3121945R1

O-RING

METRIC UNIT C, D AND H, 2 UNITS A, B E, F AND G

1шт.

21

384578R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

13/16 X 15/16 X 1/16 FOR UNITS C, D AND H, 4 FOR UNITS A, B, E, F AND G

2шт.

22

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 C-Z 37 DEG HYD FLARED TUBE, UNIT A, B, E, F AND G

1шт.

23

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 X 3/4 X 3/32, UNIT A, B, E, F AND G

1шт.

24

529705R1

UNION

CONNECTOR, AUX VALVE, UNIT A, B, E, F AND G

1шт.

25

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE, UNIT A, B, E, F AND G

1шт.

26

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE, UNIT A, B, E, F AND G

1шт.

27

NOT APPLICABLE

1шт.

28

3116012R1

BLOCK

AUX VALVE CONTROL LEVER ADAPTOR, UNIT A, B, E, F AND G, INCLUDES: SCREWS AND WASHERS

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

29

VALVE ASSY, DOUBLE ACTING AUX HYD, UNIT B, D AND G FOR COMPONENTS, SEE LIST OF PARTS UNDER DETAILS OF DOUBLE ACTING AUX HYD VALVE ASSY

1шт.

30

529698R1

SEALING RING,15.88mm ID x 23.8mm OD x 7.54mm Thk

AUX HYD VALVE WIPER

1шт.

31

3121840R1

BRACKET

ASSY, AUX VALVE CONTROL LEVER, INCLUDES: SCREWS

2шт.

186923

HEX SOC SCREW,1/4"-20 x 5/8"

SCREW, 1/4-20 X 5/8 HEX-SOC-HD CAP

4шт.

3121842R1

SCREW

SHOULDER

2шт.

32

529702R1

LINK

CONTROL LEVER CONNECTING, INCLUDES: PINS

4шт.

102776H

CLEVIS PIN,1/4" x 11/16"

Rod end

4шт.

103361

PIN, SPLIT (COTTER)

PIN, COTTER 1/16 X 1/2

4шт.

33

3121846R1

LEVER

ASSY, AUX VALVE, FIRST BANK

1шт.

34

3123087R1

BUTTON

KNOB, AUX VALVE CONTROL LEVER

1шт.

35

VALVE ASSY, SINGLE ACTING AUX HYD, UNITS A-C AND E FOR COMPONENTS, SEE LIST OF PARTS UNDER DETAILS OF SINGLE ACTING AUX HYD VALVE ASSY

1шт.

36

3121843R1

LEVER

ASSY, AUX VALVE, SECOND BANK

1шт.

37

529697R2

PLATE

AUX HYD VALVE END, UNIT A, B, E, F AND G, INCLUDES: SCREWS AND WASHERS

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8-16 X 2-3/4 HEX HD CAP, 2 FOR UNIT A, B, E, F AND G

2шт.

433114

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 5

3/8-16 X 4-1/4 HEX-HD CAP, UNIT A, B, E, F AND G

1шт.

186288

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

3/8-16 X 4-1/2 HEX-HD CAP, 2 FOR UNITS C, D AND H

1шт.

103321

LOCK WASHER,3/8"

3шт.

22344R1

BOLT,Hex, 3/8" - 16 x 5 3/4", Gr 5

3/8-16 X 5-3/4 HEX-HD CAP, UNIT C, D AND H

1шт.

38

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE, UNIT C AND F, 2 FOR UNIT D AND G

1шт.

39

9410360

PLUG

7/8-14 C-Z STR THD O-RING BOSS, UNIT C AND F, 2 FOR UNIT D AND G

1шт.

40

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE, UNIT A

1шт.

41

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 DEG HYD FLARED TUBE ADJ STR THD O-RING 90 DEG, UNIT A

1шт.

42

393349R1

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

7/8 X 1 X 1/16, UNIT C, D AND H, 2 UNIT A, B, E, F AND G

1шт.

43

3123527R91

COVER ASSY

HIGH PRESSURE CARRYOVER, INCLUDES: PLUG, SEAL, ADAPTOR AND O-RING

1шт.

3123528R1

PLUG

3/4 B S P

1шт.

708496R1

SEAL

1шт.

3118797R1

ADAPTER

1шт.

383024R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

11/16 X 13/16 X 1/16, SHIP LOOSE

1шт.

44

364885

O-RING

5/8 OD TUBE, UNIT H

1шт.

45

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 DEG HYD FLARED TUBE 2ND BANK AUX VALVE TO COUPLING TUBE ELBOW, UNIT H

1шт.

46

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

C-Z 37 DEG HYD FLARED TUBE 90 DEG SWIVEL 2ND BANK AUX VALVE TO COUPLING HYD HOSE, UNIT H

1шт.

537080R2

PRODUCT GRAPHIC

CONTROL HANDLE, NOT ILLUSTRATED

1шт.
