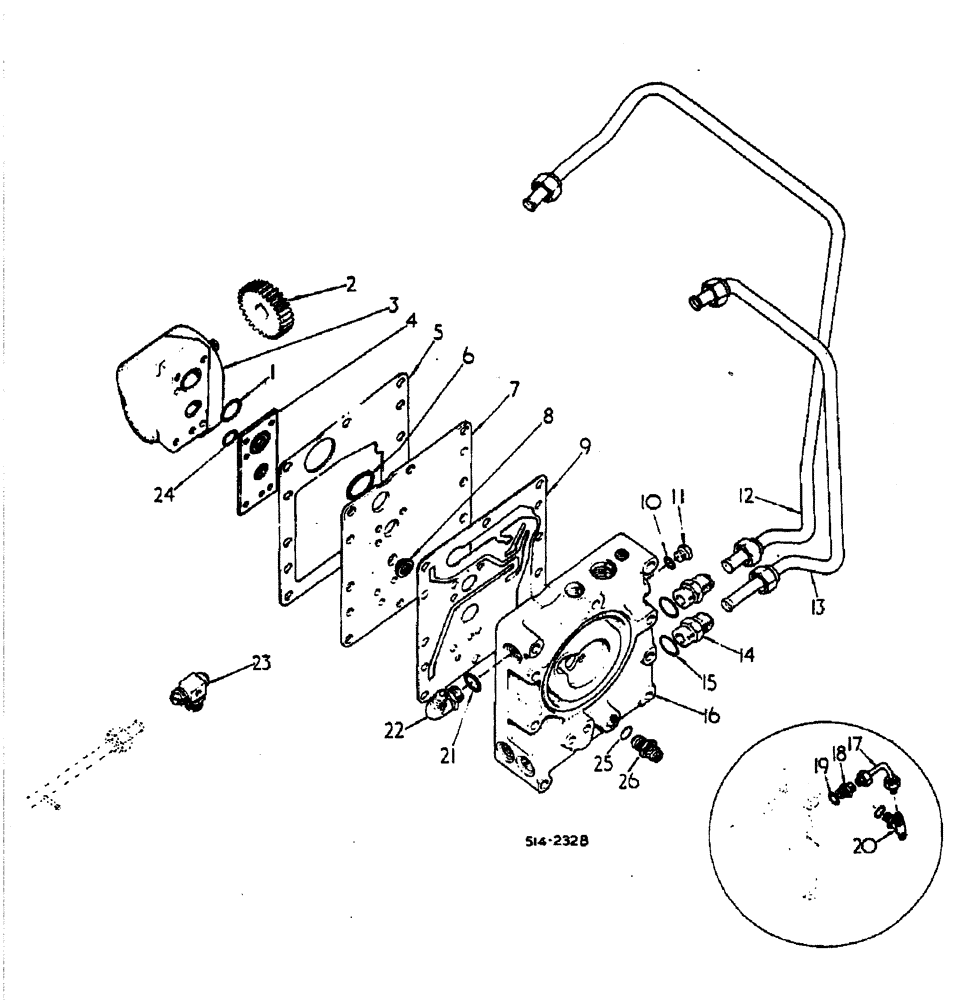

Запчасти Case IH 884 (10-002) - HYDRAULIC POWER SUPPLY AND M.C. VALVE (07) - HYDRAULICS

1

372821R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1-1/16 X 1-1/4 X 3/32, PUMP SUCTION PORT

1шт.

2

59369C1

GEAR

HYD PUMP DRIVEN -23T

1шт.

2

406764R1

PINION

GEAR, HYD PUMP DRIVEN -27T, INCLUDES: NUT

1шт.

19258R1

LOCK NUT,1/2"-20, GB

1/2-20 ESNA STOP

1шт.

3

128180C91

PUMP, HYDRAULIC

ASSY, HYD GEAR -200900LAK- CESSNA, INCLUDES: PACKAGE O-RING AND GASKET

1шт.

3

84573150R

REMAN-HYD PUMP

884 INTERNATIONAL TRACTOR (EUROPE) (1/79-12/81), 885 INTERNATIONAL DIESEL TRACTOR (1/81-12/85), Both (UP TO S/N 3083), ASSY, HYD GEAR -200900LAK- CESSNA, Reman for New PN 128180C91

1шт.

3

84573150C

CORE-HYDRAULIC PUMP

Return Number

1шт.

73234C91

PACKAGE,SERVICE

O-RING AND GASKET SERVICE

1шт.

3

406763R91

PUMP

ASSY, HYD GEAR, PLESSEY, INCLUDES: KEY, SEAL KIT, SCREWS AND WASHERS

1шт.

3

84573150R

REMAN-HYD PUMP

884 INTERNATIONAL TRACTOR (EUROPE) (1/81-12/86), 885 INTERNATIONAL DIESEL TRACTOR (1/81-12/85), All (UP TO S/N 3083), ASSY, HYD GEAR, PLESSEY, Reman for New PN 406763R91

1шт.

3

84573150C

CORE-HYDRAULIC PUMP

Return Number

1шт.

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Pump shaft

1шт.

534262R91

PACKAGE

KIT, SEAL PACK

1шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

2шт.

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

2шт.

382331R1

SEALING WASHER,8.33mm ID x 12.7mm OD x 0.79mm Thk

PUMP MOUNTING BOLT

4шт.

3

66513C91

PUMP, HYDRAULIC

ASSY, HYD GEAR 15 G P M, PLESSEY, INCLUDES: KEY, SEAL KIT, SCREWS AND WASHERS

1шт.

3

84573150R

REMAN-HYD PUMP

884 INTERNATIONAL TRACTOR (EUROPE) (1/79-12/81), 885 INTERNATIONAL DIESEL TRACTOR (1/81-12/85), Both (UP TO S/N 3083), ASSY, HYD GEAR 15 G P M, PLESSEY, Reman for New PN 66513C91

1шт.

3

84573150C

CORE-HYDRAULIC PUMP

Return Number

1шт.

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Pump shaft

1шт.

70230C1

SEAL KIT

KIT

1шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

186271

SCREW,Hex, 5/16" - 18 x 3 3/4", Gr 5

2шт.

382331R1

SEALING WASHER,8.33mm ID x 12.7mm OD x 0.79mm Thk

PUMP MTG BOLT

4шт.

4

NOT USED

1шт.

5

401736R3

GASKET

MULTIPLE CONTROL VALVE HV

1шт.

6

707253R1

O-RING,-222, 70 Duro, 1.484" ID x .139" Thk

1-1/2 X 1-3/4 X 1/8 INLET PORT

1шт.

7

405458R2

LARGE PLATE

PLATE, LARGE MULTIPLE CONTROL VALVE

1шт.

8

387926R2

RING

RECTANGULAR

1шт.

9

65000C2

GASKET

MULTIPLE CONTROL VALVE BODY

1шт.

10

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1/4 OD tube

1шт.

11

9410356

PLUG

7/16-20 STR THD O-RING BOSS

1шт.

12

66761C1

TUBE ASSY.

DRAFT CONTROL RETURN

1шт.

13

66764C1

PIPE

TUBE ASSY, M C VALVE -BY-PASS

1шт.

14

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 C-Z 37 DEG HYD FLARED TUBE SHORT SWIVEL

2шт.

15

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE

2шт.

16

57714C93

VALVE

ASSY, MULTIPLE CONTROL, INCLUDES: SCREWS AND WASHERS

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

9шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8-16 X 3-1/2 HEX HD CAP

1шт.

103321

LOCK WASHER,3/8"

10шт.

17

539835R1

TUBE ASSY.

IPTO PRESSURE, TRACTORS W/IPTO

1шт.

18

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

7/16-20 37 DEG HYD FLARED TUBE SHORT SWIVEL, TRACTORS W/ IPTO

1шт.

19

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1/4 OD tube, Tractors with IPTO

1шт.

20

9411115

TEE,7/16"-20, 37 Degree x 7/8"-14, O-Ring Br

7/16-20 C-Z 37 DEG HYD FLARED TUBE, TRACTORS W/ IPTO

1шт.

9403369

CAP,37 Degree, 7/16"-20

7/16-20 C-Z 37 DEG HYD FLARED TUBE

1шт.

21

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

1шт.

22

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 C-Z 37 DEG HYD FLARED TUBE, ADJ STR THD 90 DEG

1шт.

23

1500561C1

ELBOW

INCLUDES: O-RING

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

1шт.

24

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

11/16 X 7/8 X 3/32, PUMP PRESSURE PORT

1шт.

25

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26

57577C1

CHECK VALVE

1шт.

69355C1

SEAL

HYD PUMP, USED W/PUMP 66513C91, NOT ILLUSTRATED

1шт.

69352C1

SEAL

HYD PUMP, USED W/PUMP 406763R91, NOT ILLUSTRATED

1шт.

3123364R1

SEAL

HYDRAULIC PUMP, USED W/PUMP CESSNA 128180C91 H, NOT ILLUSTRATED

1шт.

69351C1

GLUE

FLUID, ADHESIVE TUBE, NOT ILLUSTRATED

1шт.

59370C1

LARGE PLATE

PLATE, LARGE PUMP MOUNTING, USED W/PUMP 66513C91, NOT ILLUSTRATED

1шт.

537517R1

WASHER

PUMP IDENTIFICATION, NOT ILLUSTRATED

1шт.
