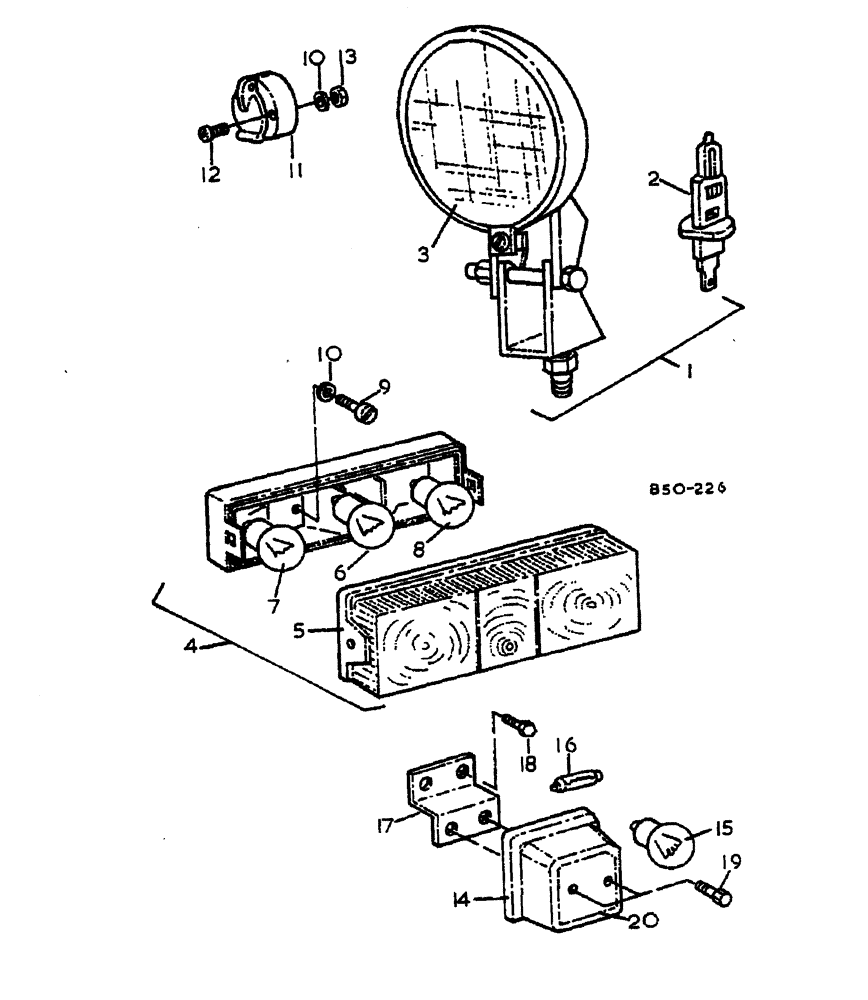

Запчасти Case IH 884 (08-056) - LIGHTS - DE-LUXE CAB (06) - ELECTRICAL

1

3125704R91

INTERIOR LIGHT

CPTE WORK

1шт.

2

3125705R1

BULB

LAMP, 12V 55W IODINE

1шт.

3

3125706R1

LENS

1шт.

4

3125707R91

LAMP, TAIL

LIGHT, TAIL CPTE STOP AND FLASHER L H

1шт.

4

3125708R91

LAMP, TAIL

LIGHT, TAIL CPTE STOP AND FLASHER R H

1шт.

5

3125709R1

LENS

2шт.

6

3125711R1

NO LONGER SERVICED

LAMP, 12V 5W

1шт.

7

3125712R1

LAMP

12V 18W

1шт.

8

3125713R1

NO LONGER SERVICED

LAMP, 12V 21W

1шт.

9

3125667R1

SCREW

M5 X 16 CHEESE HD

2шт.

10

934490R1

LOCK WASHER,Ext Tooth, M5

3/16

5шт.

11

3125714R1

PLUG

TRAILER

1шт.

12

3125715R1

SCREW

M5 X 30 CHEESE HD

3шт.

13

934871R1

NUT,M5, Cl 5

M5

3шт.

14

3121089R91

LIGHT

CPTE SIDE AND FLASHER, SEE DETAIL LIST

2шт.

15

NOT APPLICABLE

1шт.

16

NOT APPLICABLE

1шт.

17

3125716R1

BRACKET

SPARE PART L H

1шт.

17

3125717R1

BRACKET

SPARE PART R H

1шт.

18

3125373R1

SCREW

M5 X 12 SELF TAPPING

4шт.

19

NOT APPLICABLE

1шт.

20

NOT APPLICABLE

1шт.

3125720R1

BRACKET

SPARE PART REFLECTOR, NOT ILLUSTRATED

2шт.

3125721R1

REFLECTOR

NOT ILLUSTRATED

2шт.
