Запчасти Case IH 884 (08-048) - BATTERY TRAY - MACHINES FITTED WITH CAB (06) - ELECTRICAL

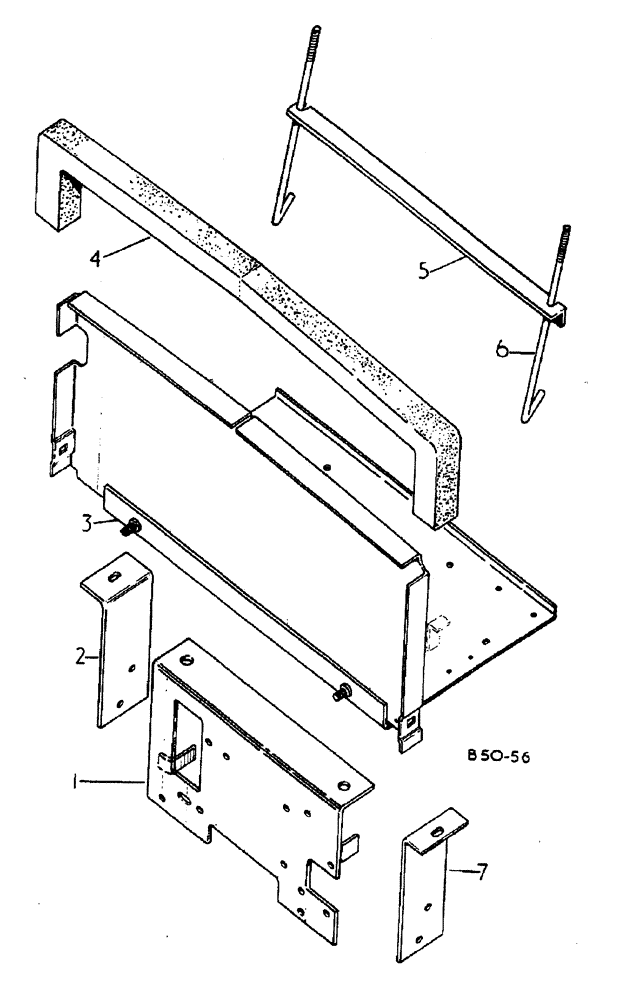

Схема запчастей Case IH 884 - (08-048) - BATTERY TRAY - MACHINES FITTED WITH CAB (06) - ELECTRICAL
2
7
3
6
1
4
5

Артикул

Название

Примечание

Количество

1

3123057R1

SUPPORT

ASSY, BATTERY

1шт.

1

538054R1

SUPPORT

ASSY, BATTERY, INCLUDES: NUTS, SCREWS AND WASHERS

1шт.

3121629R1

NUT

RETAINER, SUPER DE-LUXE CAB

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

2

3116893R1

SUPPORT

SPARE PART BATTERY TRAY R H, INCLUDES: BOLT, NUT AND WASHERS

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

21872R1

WASHER

406 X 625 X 054 PLAIN

1шт.

3

3123055R1

TRAY ASSY.

BATTERY, INCLUDES: SCREW, WASHERS AND NUTS

1шт.

181356

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5

3/8-16 X 5/8 HEX HD CAP

1шт.

103321

LOCK WASHER,3/8"

1шт.

20893R1

WASHER

11/32 X 1 X 120

2шт.

80681

LOCK WASHER,5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

3121629R1

NUT

RETAINER

2шт.

120393

BEARING WASHER,5/16", SAE

344 X 688 X 051

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

103320

LOCK WASHER,5/16"

2шт.

4

402203R1

GASKET

BATTERY HEAT SHIELD

1шт.

5

3121178R1

BRACKET

BATTERY HOLD DOWN

1шт.

6

529968R2

ROD

BATTERY HOLD DOWN, INCLUDES: WASHERS AND NUTS

2шт.

120393

BEARING WASHER,5/16", SAE

11/32 X 11/16 X 051 C-Z

2шт.

120376

NUT,5/16"-18, G5

2шт.

7

3116892R1

SUPPORT

BATTERY TRAY L H, INCLUDES: BOLT, NUT AND WASHERS

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

21872R1

WASHER

406 X 625 X 054 PLAIN

1шт.

8

3125823R1

CLIP

CABLE 19 MM, INCLUDES: BOLT, NUT AND WASHER

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

Located under battery tray ASM

1шт.

103319

LOCK WASHER,1/4"

Not Illustrated

1шт.

109084

NUT,1/4"-20, G5

Power Steering Pipe Clamp, Not Illustrated

1шт.

3125823R1

CLIP

CABLE 19 MM, INCLUDES: BOLT, NUT AND WASHER, NOT ILLUSTRATED

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Not Illustrated

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

Not Illustrated

1шт.

492-11025

LOCK WASHER,1/4"

Located under battery tray ASM, Not Illustrated

1шт.

Выбрано товаров: 41
