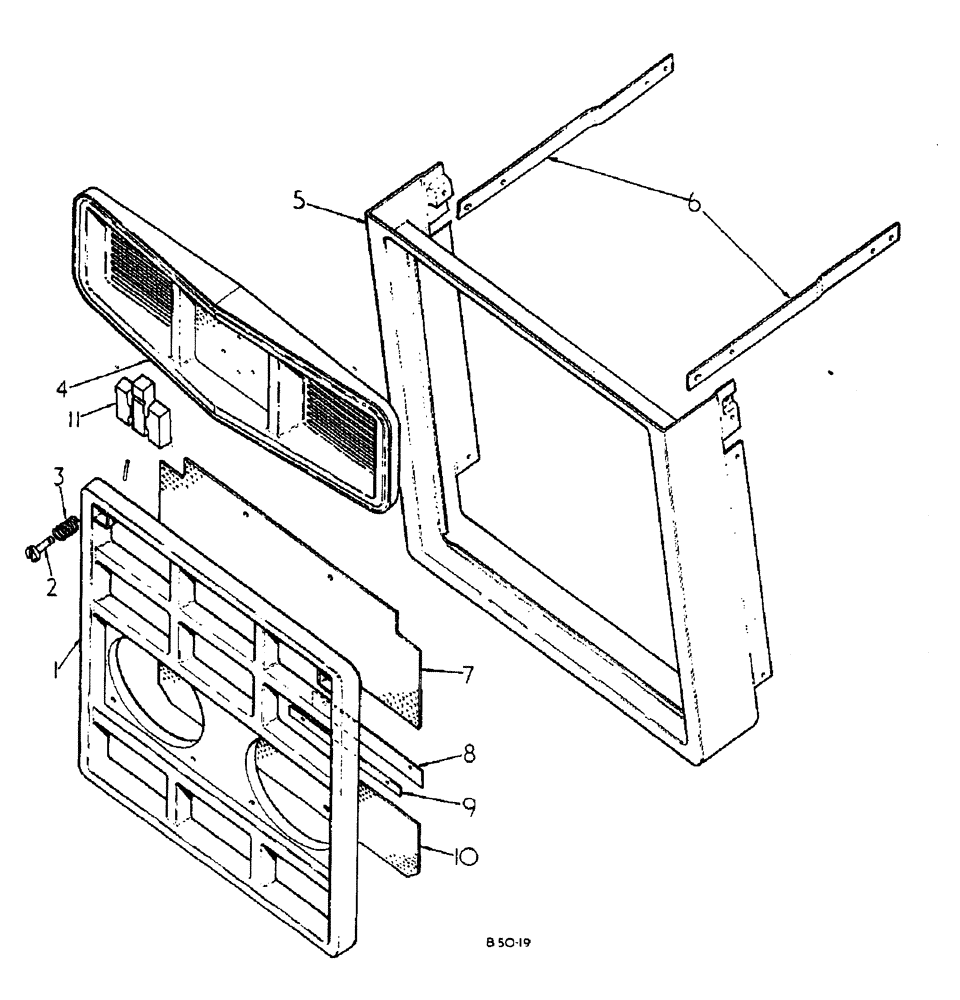

Запчасти Case IH 884 (06-006) - RADIATOR GRILLE Cooling

1

3121668R1

GRILLE ASSY

radiator, standard machines

1шт.

1

3121652R91

GRILLE

radiator, 4 wheel drive, headlight low position

1шт.

1

3121678R1

GRILLE

radiator, standard machines

1шт.

1

3121672R1

GRILLE

radiator, 4 wheel drive headlight high position

1шт.

2

3113470R1

PIN

LATCH, grille, Includes: pins and washers

2шт.

26052R1

PIN,3/16" x 1 1/2", Coiled

2шт.

Q397

WASHER

11/32 x 3/4 x 16 GA

2шт.

3

532180R1

SPRING

grille latch

2шт.

4

3121663R1

SCREEN

GRILLE ASSEMBLY, upper, headlight low position

1шт.

4

3121675R1

GRILLE ASSY

upper, headlight high position, Includes: nuts and washers

1шт.

107377H

LOCK NUT,#10-32, GB

8шт.

120391

WASHER,#10

NO 10 x 50 x 036

8шт.

5

3121233R1

HOUSING

lower grille, standard machines

1шт.

5

3121231R1

HOUSING

LOWER GRILLE, 4 wheel drive, Includes: bolts, washers and nuts

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

495-11053

WASHER,1/2", SAE

531 x 1062 x 074

2шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

4шт.

6

3121234R1

SUPPORT

BAR, grille tie, Includes: bolts, washers, nuts and washers

2шт.

NSS

NOT SOLD SEPARAT

standard machines

2шт.

6

3121232R1

SUPPORT

BAR, grille tie, 4 wheel drive

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

6шт.

103319

LOCK WASHER,1/4"

6шт.

109084

NUT,1/4"-20, G5

2шт.

95-11028

WASHER,1/4"

281 x 625 x 051

2шт.

7

3121669R1

GRILLE

SCREEN, upper, standard machines

1шт.

7

3121655R1

GRILLE

SCREEN, upper, 4 wheel drive, Includes: screws

1шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

hex washer HD tap, 10-24 x 1/2

4шт.

1502019C1

SCREW,Hex Random Sl, #10 - 24 x 1/2"

hex (RANDOM SLTD), 10-24 x 1/2, optional

4шт.

8

3121653R1

BRACKET

grille retaining

1шт.

9

3121654R1

BAR

grille retaining, Includes: screws and washers

1шт.

436750R1

SCREW

10-32 x 1/2 PAN HD SLT MACH

2шт.

23505R1

WASHER

9/32 x 5/8 x 16 GA C Z

2шт.

10

3121656R1

GRILLE

SCREEN, lower, Includes: screws

1шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

hex washer HD tap, 10-24 x 1/2

4шт.

1502019C1

SCREW,Hex Random Sl, #10 - 24 x 1/2"

hex (RANDOM SLTD) 10-24 x 1/2, optional

4шт.

10

3121679R1

SIEVE

SCREEN, grille, standard machines

1шт.

10

3121673R1

SCREEN

grille, 4 wheel drive, Includes: screws

1шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

hex washer HD tap, 10-24 x 1/2

4шт.

1502019C1

SCREW,Hex Random Sl, #10 - 24 x 1/2"

hex (RANDOM SLTD), 10-24 x 1/2, optional, headlight high position

4шт.

11

120397C1

EMBLEM CASE/IH

PRODUCT GRAPHIC I H GRILLE, Includes: washers and screws

1шт.

120391

WASHER,#10

No. 10 plain

4шт.

187-1091

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

No. 10-16 x 3/8 ZND PAN HD CR, recess tap type B, front grille low position

4шт.

260-5458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

No. 10-16 x 1/2 ZND PAN HD CR, recess tap type B, front grille high position

4шт.
