Запчасти Case IH 884 (08-024) - FENDER WIRING AND LIGHTS - TRACTORS WITH CROWN FENDERS (06) - ELECTRICAL

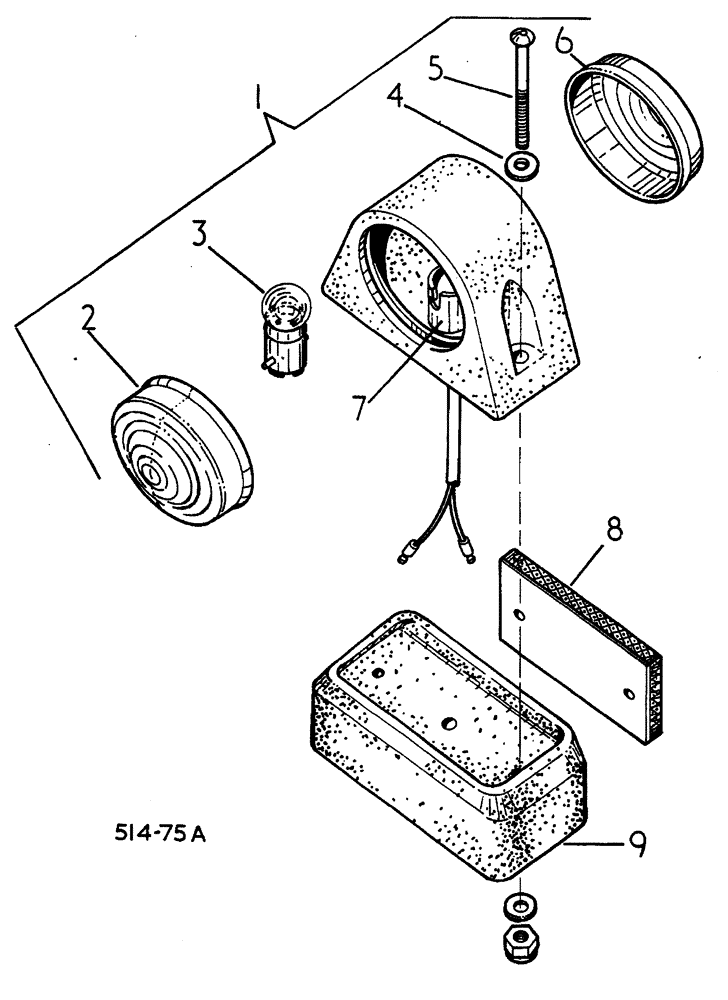

Схема запчастей Case IH 884 - (08-024) - FENDER WIRING AND LIGHTS - TRACTORS WITH CROWN FENDERS (06) - ELECTRICAL
1
8
7
2
9
4
3
6
5

Артикул

Название

Примечание

Количество

1

3123175R91

LIGHT ASSY.

SIDE AND TAIL FENDER

2шт.

2

3113396R1

LENS

CLEAR

2шт.

3

894879H1

BULB

LAMP, 12V 5W SBC

2шт.

4

446152

HYD CONNECTOR

PLAIN

4шт.

5

3121291R1

SCREW

2BA X 2-1/4 PAN HD, INCLUDES: NUTS AND WASHERS

4шт.

3062475R1

NUT

2BA

4шт.

121801

LOCK WASHER,Int Tooth, #10

4шт.

6

3112860R1

LENS

RED

2шт.

7

3074005R91

HOLDER

LAMP BRACKET

2шт.

8

530041R1

REFLECTOR

FENDER

2шт.

9

NSS

NOT SOLD SEPARAT

BASE, FENDER SIDE AND TAIL, NOT SERVICED

2шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 WAY FENDER L H

2шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 WAY FENDER R H

4шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 WAY NO PLATE

1шт.

705896R1

CONNECTOR, ELEC

CONNECTOR 2 WAY NO PLATE

1шт.

3123188R1

HARNESS

FENDER

1шт.

Выбрано товаров: 16
