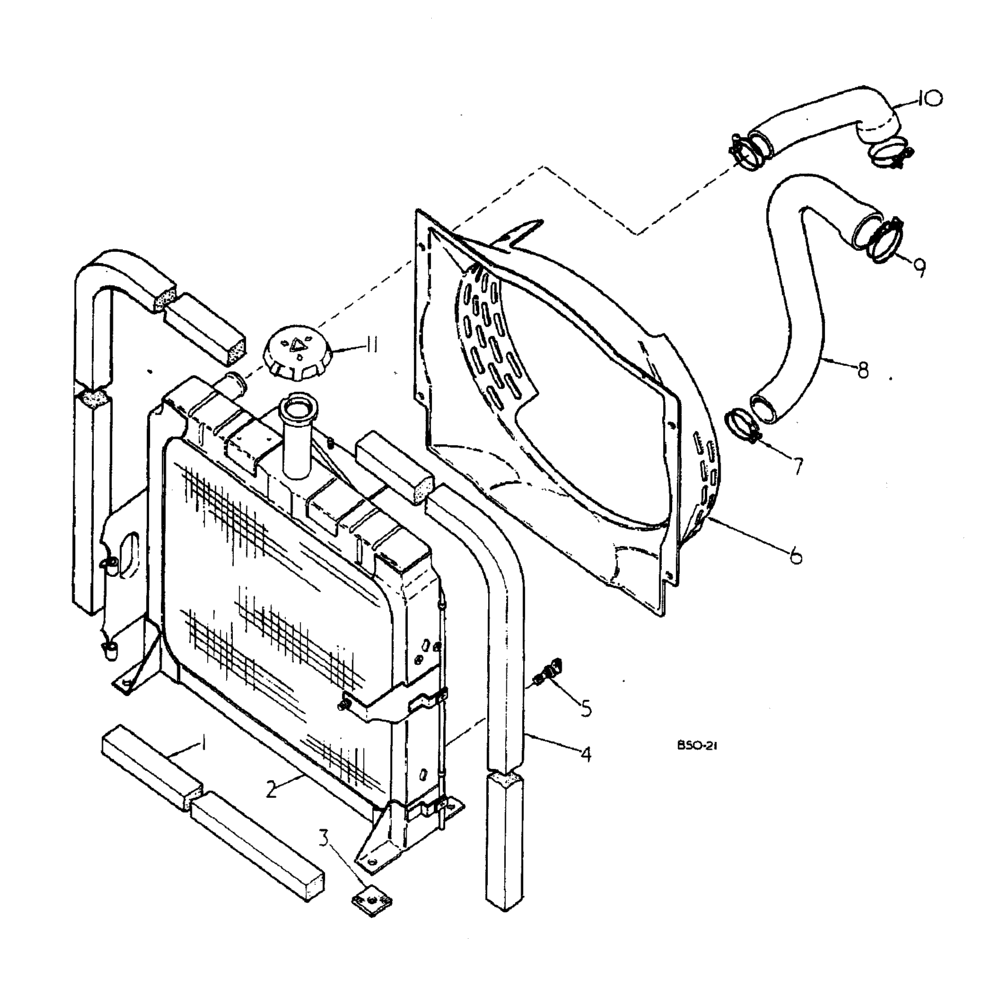

Запчасти Case IH 884 (06-004) - RADIATOR AND CONNECTIONS Cooling

1

537162R1

FILLING STRIP

GASKET, lower radiator

1шт.

2

3121415R91

RADIATOR

ASSEMBLY, synchromesh drive tractors, Includes: screws, washers and nut

1шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

hex HD, 7/16-14 x 1

4шт.

103322

LOCK WASHER,7/16"

4шт.

7500032

BUSHING

5/16-18 ZND

1шт.

3

47240D

PAD

radiator, Includes: washers

4шт.

496-21047

WASHER

469 x 922 x 051 plain

4шт.

4

NSS

NOT SOLD SEPARAT

GASKET, radiator baffle top/side 32 7 IN

2шт.

4

73217C1

FILLING STRIP

GASKET, foam bulk length 4FT

1шт.

5

3113083R1

PLUG, DRAIN

VALVE

1шт.

6

527475R2

HOUSING

SHROUD, fan, Includes: screws and washers

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x 051

4шт.

7

705935R91

HOSE CLAMP

2шт.

7

39149H

HOSE CLAMP

optional

2шт.

8

402205R1

LARGE HOSE,50.80 mm ID x 213.90 mm, SAE 100R2

HOSE,LARGE OUTLET radiator

1шт.

8

402205R1GV

RADIATOR HOSE

Value, Radiator Hose

1шт.

9

706082R91

CLAMP

hose

2шт.

9

39205H

CLAMP

hose optional

2шт.

10

402207R1

LARGE HOSE,50.80 mm ID x 179.83 mm, SAE 20R2

HOSE,LARGE Inlet

1шт.

10

402207R1GV

RADIATOR HOSE

Value, Radiator Hose

1шт.

11

532029R1

CAP ASSY.

radiator

1шт.
