Запчасти Case IH 884 (08-014) - BRAKE LIGHT SWITCH - MACHINES FITTED WITH FLAT TOP, FENDERS OR SAFETY CAB OR SUPER DE-LUXE CAB (06) - ELECTRICAL

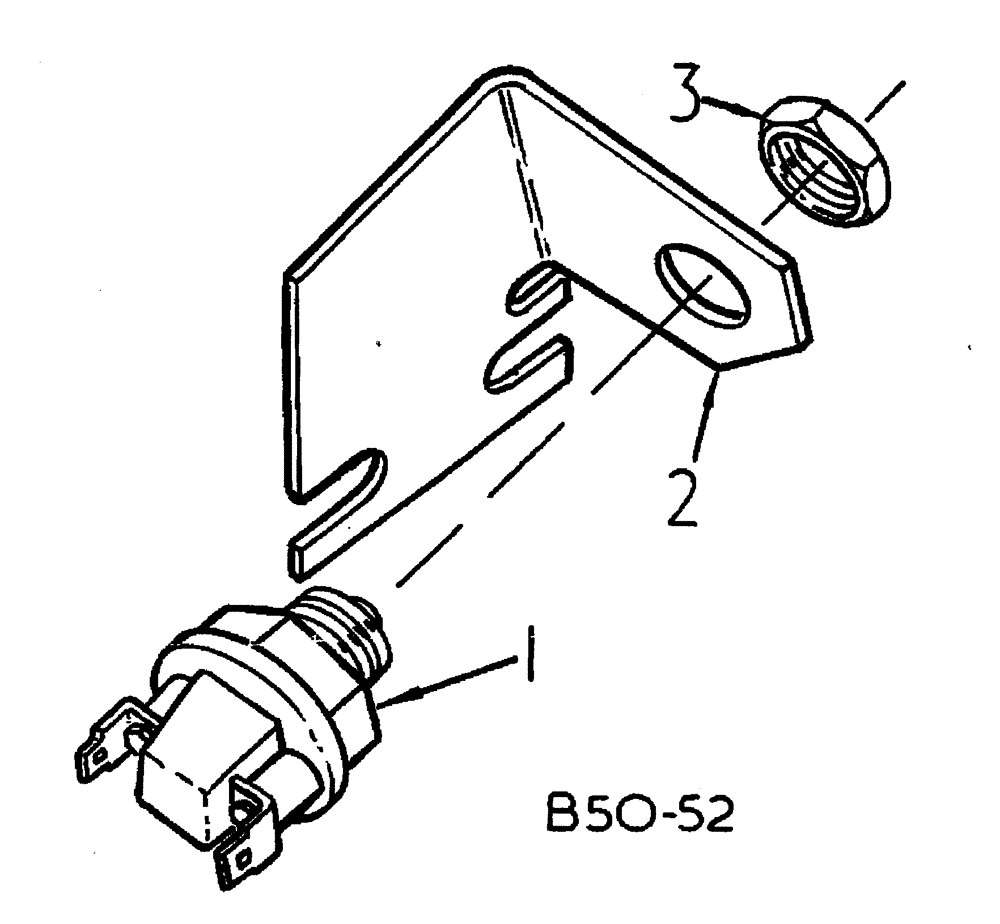

Схема запчастей Case IH 884 - (08-014) - BRAKE LIGHT SWITCH - MACHINES FITTED WITH FLAT TOP, FENDERS OR SAFETY CAB OR SUPER DE-LUXE CAB (06) - ELECTRICAL
2
1
3

Артикул

Название

Примечание

Количество

1

3106565R91

SWITCH

BRAKE LIGHT

1шт.

2

531634R2

BRACKET

BRAKE LIGHT SWITCH, INCLUDES: SCREWS AND WASHERS

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051)

2шт.

4

3121758R1

LOCK NUT

3/4-10 HEX

1шт.

Выбрано товаров: 6
