Запчасти Case IH 884 (08-008) - ALTERNATOR AND CONNECTIONS (06) - ELECTRICAL

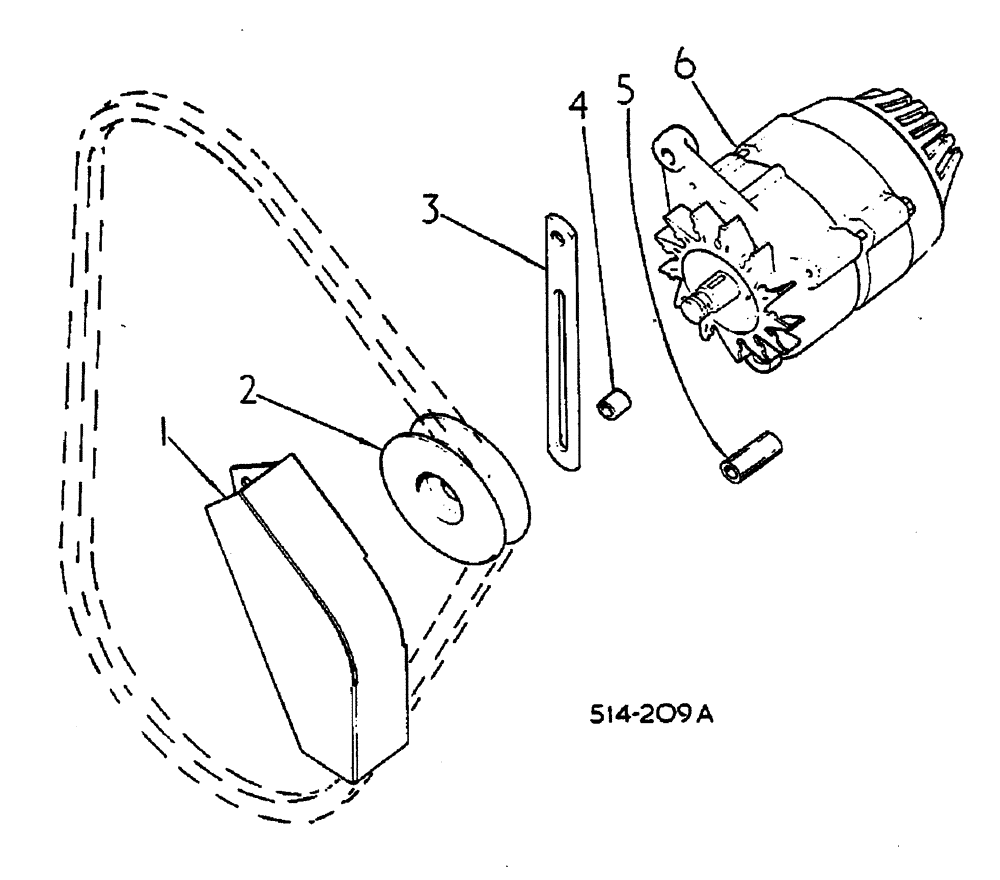

Схема запчастей Case IH 884 - (08-008) - ALTERNATOR AND CONNECTIONS (06) - ELECTRICAL
6
4
3
2
5
1

Артикул

Название

Примечание

Количество

1

3129852R3

SHIELD

CPTE, ALTERNATOR

1шт.

2

3113672R1

PULLEY

ALTERNATOR

1шт.

3

3113336R1

BRACE

ALTERNATOR, LUCAS ALTERNATORS

1шт.

3

3129076R1

CLIP

BRACE, ALTERNATOR, AC DELCO ALTERNATOR, INCLUDES: SCREW AND WASHERS

1шт.

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

SCREW, M8 X 20 PLN MACH

1шт.

103320

LOCK WASHER,5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

11/32 X 11/16 X 065

1шт.

4

U13039

SPACER

ALTERNATOR BRACE

1шт.

4

190123

HOSE

SPACER, ALTERNATOR BRACE, OPTIONAL, INCLUDES: BOLTS

1шт.

186273

BOLT,Hex, 5/16" - 18 x 4 1/4", Gr 5

Alternator Brace

1шт.

413-568

BOLT,Hex, 5/16" - 18 x 4-1/4", Gr 5

BOLT, ALTERNATOR BRACE, OPTIONAL

1шт.

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

For use w/ spacer 894870H1

1шт.

5

3113678R1

SPACER

ALTERNATOR MOUNTING

1шт.

6

3129851R91

ALTERNATOR

LUCAS 18 ACR LESS FAN, LUCAS NO 23765, INCLUDES: BOLTS, BOX ASSY., BRACKETS, CAPACITOR, COVER, RECTIFIERS, KITS, REGULATOR, RING SLIP, ROTOR ASSY. SET BRUSH AND STATOR

1шт.

6

K956426

ALTERNATOR

Alternator

1шт.

6

104020A1GV

ALTERNATOR

Value, 12V, 26A

1шт.

6

104020A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 26 AMP Alternator

1шт.

6

104020A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 26 AMP Alternator

1шт.

6

104020A1RGV

ALTERNATOR

REMANUFACTURED 12 VOLT, 26 AMP ALTERNATOR

1шт.

3116095R1

BOLT

FIXING

3шт.

3116094R91

BRUSH HOLDER

HOLDER, BRUSH BOX ASSY.

1шт.

3116089R91

BRACKET

ASSY.

1шт.

3116092R1

BRACKET

S R E

1шт.

3125297R1

CAPACITOR

1шт.

3116086R1

COVER

1шт.

231-1446

NUT,3/8" - 16, Gr 5

Rectifier Assy

1шт.

1502048C91

KIT, ALTERNATOR REPA

D/E BEARING

1шт.

1502049C91

KIT, ALTERNATOR REPA

S R E BEARING

1шт.

3116090R91

KIT

SPARE PART SUNDRY PARTS

1шт.

3116088R1

RECTIFIER

1шт.

1502053C1

REGULATOR

1шт.

1502054C1

RING

SLIP

1шт.

3125133R91

ROTOR ASSY.

1шт.

1502051C91

SET, BRUSH

1шт.

1502050C1

STATOR

STATOR

1шт.

6

1500560C91

ALTERNATOR, LUCAS 18 ACR W/FAN AND PULLEY

1шт.

6

1500541C91

ALTERNATOR

MOTOROLA W/PULLEY

1шт.

6

NSS

NOT SOLD SEPARAT

ALTERNATOR, LUCAS 18 ACR W/FAN, LUCAS NO 54021461, NOT SERVICED, SERVICE PARTS ARE AS 3129851R91, EXCEPT AS SHOWN

1шт.

1502055C1

FAN

1шт.

3116087R2

REGULATOR

1шт.

3125134R1

STATOR

SPARE PART

1шт.

272392

NUT,Hex, 5/16" - 18 x 4 3/4", Gr 5

5/16 X 4-3/4 HEX HEAD

1шт.

80681

LOCK WASHER,5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

11/32 X 11/16 X 065

1шт.

Выбрано товаров: 44
