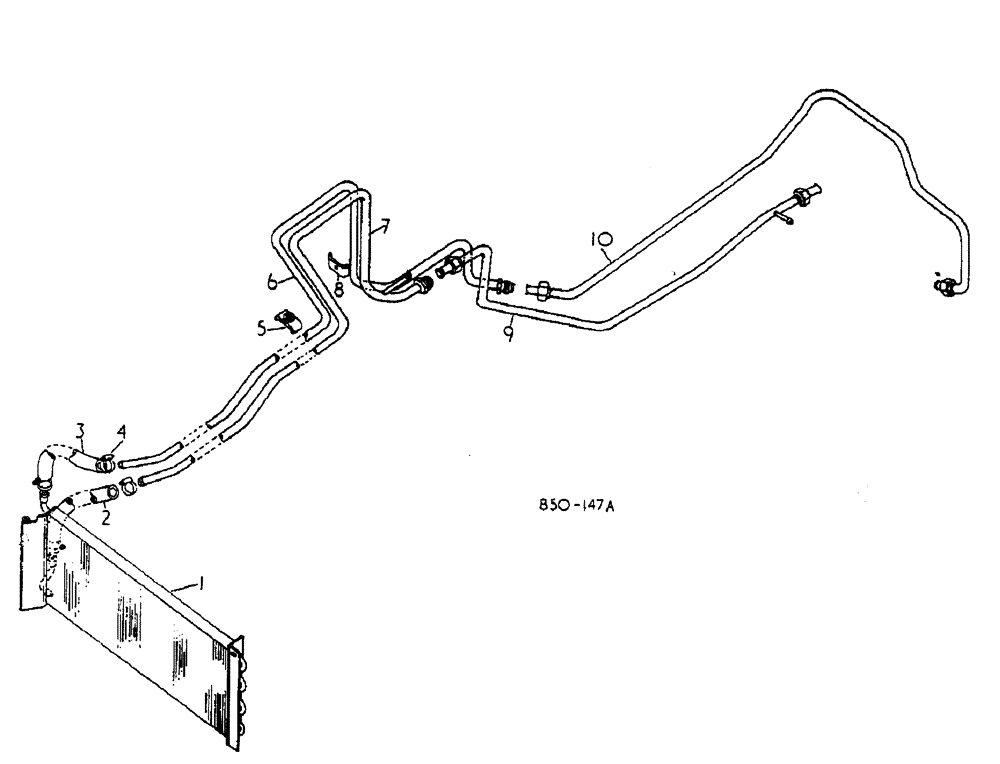

Запчасти Case IH 884 (06-002) - COOLER - OIL - SYNCHROMESH DRIVE TRACTORS Cooling

1

539560R1

COOLER

oil, Includes: pins

1шт.

Q663

HEADED PIN,5/16" x 1 7/8"

5/16 x 1-7/8 STD HD

2шт.

103384

COTTER PIN,1/8" x 3/4"

2шт.

2

3125980R1

LARGE HOSE

HOSE,LARGE oil cooler outlet, bulk length

1шт.

3

3125980R1

LARGE HOSE

HOSE,LARGE oil cooler inlet, bulk length

1шт.

4

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

oil cooler

4шт.

4

3074617R1

CLAMP

HOSE oil cooler, optional

4шт.

5

529644R11

CLAMP

ASSEMBLY, oil cooler tube, Includes: screw and washer

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

hex HD CAP, 1/4-20 x 7/8

1шт.

103319

LOCK WASHER,1/4"

1шт.

6

3125113R1

TUBE ASSY.,12.7 mm OD, 1137.16 mm Length

INLET oil cooler

1шт.

7

3125114R2

TUBE ASSY.

OUTLET oil cooler

1шт.

8

381448R1

CLAMP

TUBE oil cooler, Includes: screw and washer

1шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

1шт.

9

66096C2

TUBE ASSY.

oil cooler return rear

1шт.

10

66095C2

TUBE ASSY.

oil cooler rear 884

1шт.

10

3129259R1

PIPE

TUBE ASSEMBLY, oil cooler rear, 885

1шт.
