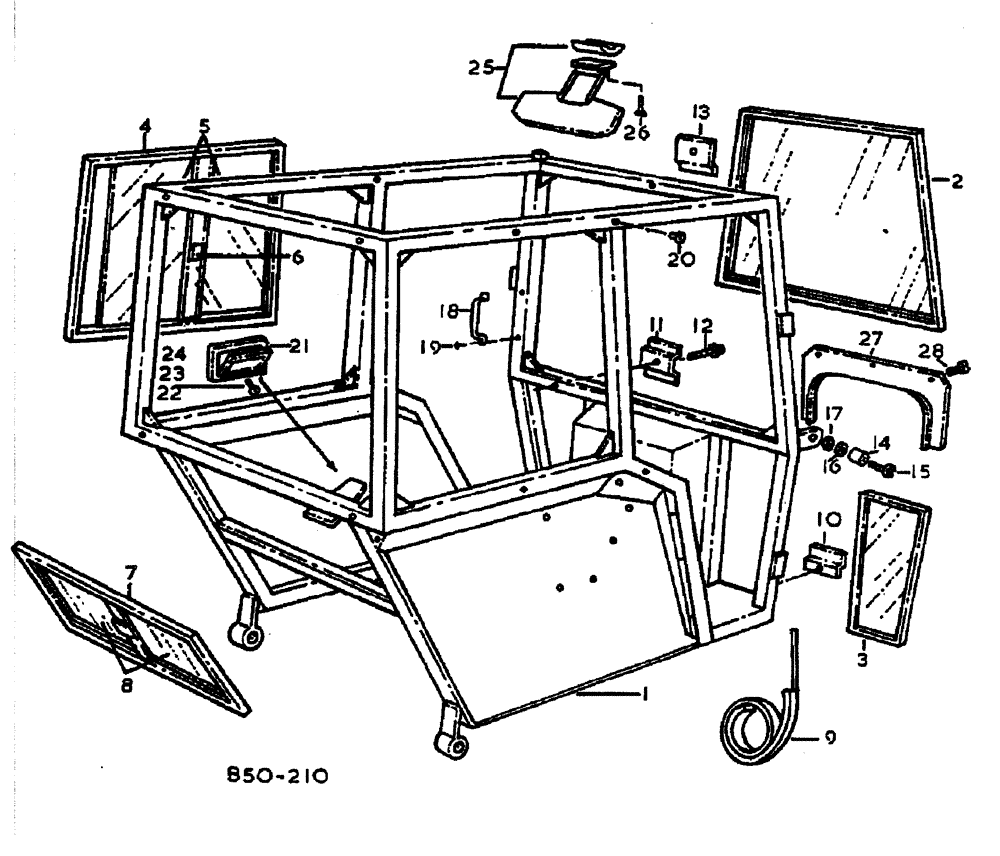

Запчасти Case IH 884 (13-070) - FRAME AND WINDOWS (05) - SUPERSTRUCTURE

1

3125385R1

FRAME

CAB MAIN

1шт.

2

3125386R1

WINDSHIELD

1шт.

3

3125387R1

WINDOW

PLOUGH L H

1шт.

3

3125388R1

WINDOW

PLOUGH R H

1шт.

4

3125389R1

WINDOW

SLIDING L H

1шт.

4

3125390R1

WINDOW

SLIDING R H

1шт.

5

3125391R1

GLASS

SLIDING - WINDOW STRAIGHT

2шт.

5

3125392R1

GLASS

SLIDING - WINDOW SLANTING

2шт.

6

3125393R1

HANDLE

SLIDING - WINDOW 1 SET

1шт.

7

3125394R1

WINDOW

REAR SLIDING

1шт.

8

3125395R1

GLASS

REAR SLIDING WINDOW, SLIDING GLASS

1шт.

8

3125396R1

GLASS

REAR SLIDING WINDOW, FIXED GLASS

1шт.

9

3125397R1

STRIP

SEALING

1шт.

10

3125398R1

CLIP

WINDOW - SINGLE

10шт.

11

3125399R1

CLIP

WINDOW - DOUBLE

2шт.

12

3125373R1

SCREW

M5 X 12 SELF TAPPING

12шт.

13

3125400R1

CLIP

WINDOW

1шт.

14

3125401R1

HOLDER

DOOR

2шт.

15

3125402R1

SCREW

SPARE PART M6 X 20 CHEESE HD

2шт.

16

933346R1

WASHER,M6 x 12 x 1.6

1/4

2шт.

17

30208R1

NUT,M6, Cl 10

M6

2шт.

18

3125403R1

HANDLE

GRAB

2шт.

19

3125404R1

SCREW

M5 X 16 SELF TAPPING

4шт.

20

3125405R1

STOP

4шт.

21

3125406R1

TRAY

ASH

1шт.

22

3125407R1

SCREW

SPARE PART M4 X 25 CHEESE HD

2шт.

23

934490R1

LOCK WASHER,Ext Tooth, M5

3/16

2шт.

24

3125408R1

NUT

SPARE PART M4

2шт.

25

3123867R1

VISOR, SUN

1шт.

26

3125409R1

SCREW

SELF TAPPING

3шт.

27

3125410R1

PLATE

FRONT

1шт.

28

3125373R1

SCREW

M5 X 12 SELF TAPPING

7шт.

2754343R1

PRODUCT GRAPHIC

ILLUSTRATED, NOT ILLUSTRATED

1шт.

1093182R1

CAUTION DECAL

PRODUCT-GRAPHIC, CAUTION, NOT ILLUSTRATED

1шт.
