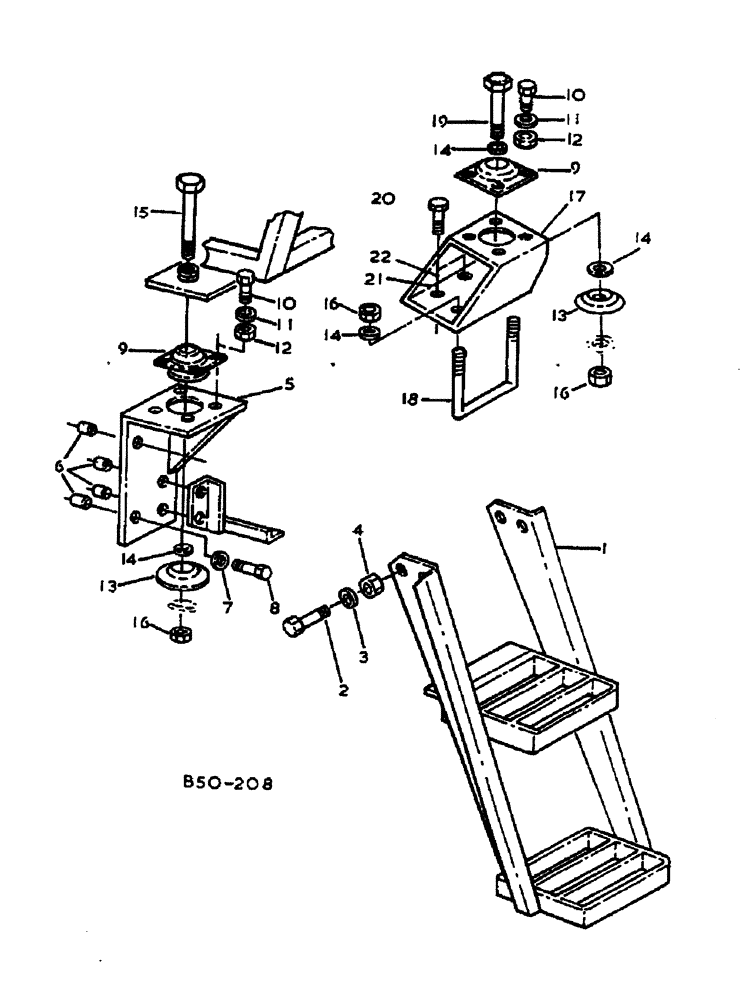

Запчасти Case IH 884 (13-066) - FOOTSTEPS AND MOUNTINGS (05) - SUPERSTRUCTURE

1

3125347R1

STEP

SPARE PART FOOT L H

1шт.

1

3125348R1

STEP

SPARE PART FOOT R H

1шт.

2

931618R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

Set

4шт.

3

114605

LOCK WASHER,Ext Tooth, 5/16"

4шт.

4

3125349R1

BRACKET

SPARE PART FOOTSTEP

2шт.

5

3125350R1

BRACKET

FRONT L H

1шт.

5

3125351R1

BRACKET

FRONT R H

1шт.

6

3125352R1

SPACER

8шт.

7

114610

LOCK WASHER,Ext Tooth, 3/4"

8шт.

8

3125353R1

BOLT

3/4 X 2-1/2

8шт.

9

3125354R1

SHOCK ABSORBER

4шт.

10

931143R1

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

SET M10 X 20

16шт.

11

178551

WASHER

3/8 TOOTHED

16шт.

12

100016

NUT,M10 x 1.5, Cl 8

16шт.

13

3125355R1

PLATE

CHECK

4шт.

14

3125356R1

WASHER

BEVELLED

12шт.

15

931730R1

BOLT,Hex, M16 x 2 x 100mm, Cl 8.8

BOLT, M16 X 100

2шт.

16

717444R1

NUT

M16 SELF LOCKING

4шт.

17

3125357R1

BRACKET

SPARE PART REAR L H

1шт.

17

3125358R1

BRACKET

SPARE PART REAR R H

1шт.

18

3125359R1

BOLT

U

2шт.

19

30078R1

BOLT,Hex, M16 x 2 x 130mm, Cl 10.9

BOLT, M16 X 130

2шт.

20

3125360R1

BOLT

SPARE PART 1 2 X 1-1/4

4шт.

21

3125361R1

WASHER

1/2 BEVELLED

4шт.

22

178591

LOCK WASHER,Ext-Int Tooth, 1/2"

1/2 TOOTHED

4шт.
