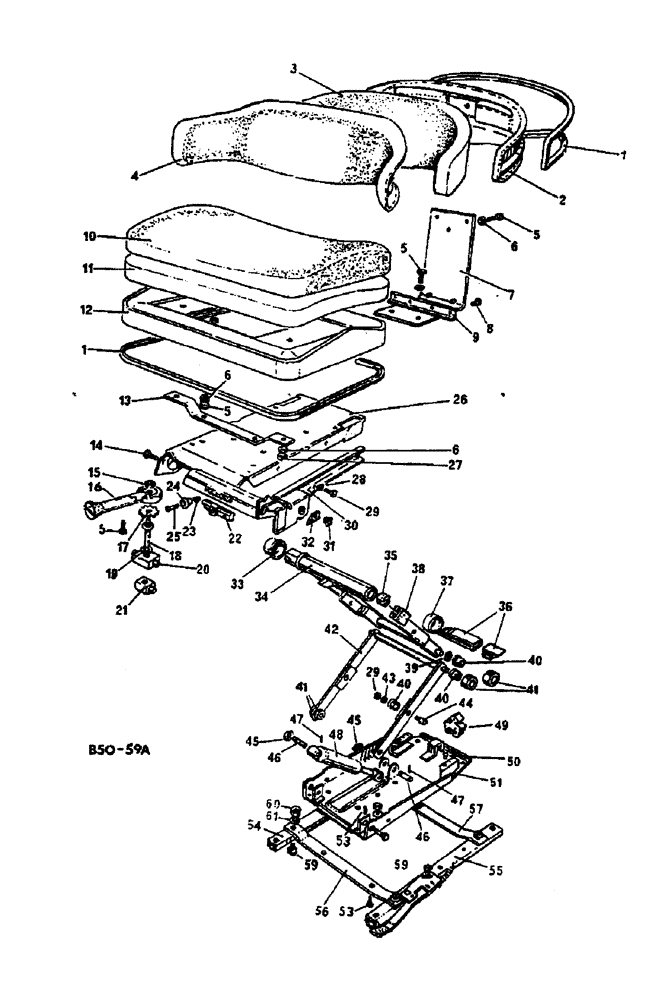

Запчасти Case IH 884 (13-062) - SUSPENSION SEAT - SUPER DE-LUXE CAB (05) - SUPERSTRUCTURE
№
Артикул
Название
Примечание
Количество
3121422R91
DRIVER SEAT
ASSY, SUSPENSION, FABRIC, BOSTROM
1шт.
3123337R1
BACKREST
CUSHION ASSY, FABRIC, CONSISTS ITEMS 1-4 INCL
1шт.
1
STRIP, EDGING, NOT SERVICED SEPARATELY
1шт.
2
PAN, SEAT BACK, NOT SERVICED SEPARATELY
1шт.
3
CUSHION, FOAM SEAT BACK, NOT SERVICED SEPARATELY
1шт.
4
COVER, SEAT BACK CUSHION - FABRIC, NOT SERVICED SEPARATELY
1шт.
5
30001R1
BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd
M8-16
9шт.
6
112723
LOCK WASHER,5/16"
11шт.
7
3123331R1
SUPPORT
SEAT BACK
1шт.
8
3125163R1
RIVET
POP
4шт.
9
3125164R1
BRACKET
INCLUDES: CUSHION ASSY.
1шт.
3123333R1
CUSHION, SEAT
ASSY, FABRIC, CONSISTS ITEMS 1, 10-12 INCL
1шт.
10
COVER, SEAT - FABRIC, NOT SERVICED SEPARATELY
1шт.
11
CUSHION, FOAM SEAT, NOT SERVICED SEPARATELY
1шт.
12
PAN, SEAT, NOT SERVICED SEPARATELY
1шт.
13
3123334R1
SUPPORT
BRACKET, SEAT TILT
1шт.
14
3123312R1
SCREW
M8 X 1 25 X 16 TAPTITE
1шт.
15
3123326R1
NUT
CLAMP
1шт.
16
3123327R1
HANDLE
ASSY.
1шт.
17
538570R1
GEAR
1шт.
18
3123325R1
BOLT
ADJUSTER
1шт.
19
3123322R1
THRUST WASHER
1шт.
20
3123323R1
TRUNNION
ADJUSTER - LARGE
1шт.
21
3123324R1
TRUNNION
ADJUSTER - SMALL
1шт.
22
3123307R1
SLIDE
SEAT ADJ
1шт.
23
3123330R1
SPRING
SLIDER
1шт.
24
3123309R1
BUTTON
KNOB, SLIDER
1шт.
25
3220548R1
SCREW
M6 X 25
1шт.
26
3123313R1
SEAT PLATE
TOP
1шт.
27
3120608R1
NUT
M8
4шт.
28
933965R1
LOCK WASHER,M10
2шт.
29
3123317R1
BOLT
2шт.
30
3123314R1
SHROUD ASSY.
R H
1шт.
31
538695R1
PLUG
END
1шт.
32
3220525R1
INDICATOR
1шт.
33
3123316R1
BUSHING
BEARING, 4 MM
1шт.
34
3123315R1
LEVER
CENTRE
1шт.
35
3220529R1
RETAINER
1шт.
36
3129922R1
BAR
TORSION - SET OF 5
1шт.
37
3109331R1
FLANGED BEARING
1шт.
38
3220519R1
STOP
LIMIT
2шт.
39
538565R1
WASHER
4шт.
40
3123319R1
BUSHING
8шт.
41
3123320R1
ROLLER BEARING
4шт.
42
3220517
LEVER, OUTER
1шт.
43
934309R1
LOCK WASHER,M8
2шт.
44
3123321R1
PIVOT PIN
2шт.
Выбрано товаров: 47
