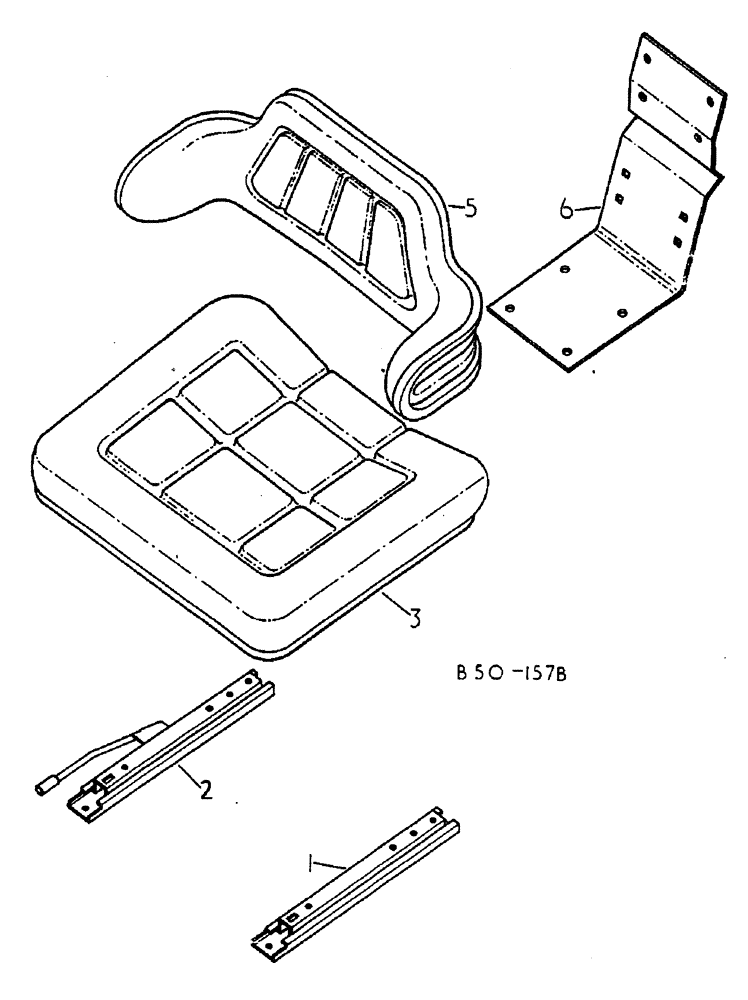

Запчасти Case IH 884 (13-058) - SEAT AND SLIDES - GRAMMER (05) - SUPERSTRUCTURE

3121423R91

DRIVER SEAT

ASSY, SUSPENSION - P V C

1шт.

3121424R91

SEAT

ASSY, SUSPENSION - CLOTH, BRAMMER, ORDER 3121423R92 OR 3121424R92

1шт.

3121423R92

SEAT

ASSY, SUSPENSION - P V C, BRAMMER REF 113182

1шт.

3121424R92

SEAT ASSY.

SUSPENSION - CLOTH, BRAMMER REF 113183

1шт.

3123562R1

SPACER

SEAT

4шт.

3123563R1

SCREW

5/16 X 1-1/2

4шт.

3123564R1

LOCK WASHER

5/16

4шт.

1

3224898R1

SLIDE GUIDE

RAIL; ADJUSTABLE

1шт.

934895R1

SCREW,Slotted Cheese, M8 x 16mm, Cl 8.8

M8 X 15

2шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

Front

1шт.

934676R1

LOCK WASHER,M8

REAR, RAIL TO PLATE

1шт.

934894R1

SCREW,M8 x 20mm, Cl 8.8

M8 X 20

2шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

2шт.

934674R1

WASHER,M10.5 x 30 x 2.5

2шт.

705424R1

WASHER

SPARE PART RAIL TO SEAT

2шт.

2

3224897R1

RAIL

ADJUSTABLE W/HANDLE

1шт.

934895R1

SCREW,Slotted Cheese, M8 x 16mm, Cl 8.8

M8 X 15

2шт.

934675R1

WASHER,M8 x 16 x 1.6

FRONT, RAIL TO PLATE

1шт.

934894R1

SCREW,M8 x 20mm, Cl 8.8

2шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

2шт.

905424R1

WASHER,M10.5 x 25 x4

REAR

1шт.

934674R1

WASHER,M10.5 x 30 x 2.5

2шт.

3

3125773R1

CUSHION, SEAT

P V C

1шт.

3

3125774R1

CUSHION, SEAT

SPARE PART CLOTH GRAMMER

1шт.

3

3125997R1

CUSHION, SEAT

P V C, FITTED TO SEAT CPTE 113182

1шт.

3

3125999R1

CUSHION, SEAT

CLOTH, FITTED TO SEAT CPTE 113183

1шт.

3129992R1

WASHER

NUT

4шт.

4

NOT APPLICABLE

1шт.

3125775R1

BACKREST

1шт.

3125776R1

BACKREST

GRAMMER

1шт.

5

3125996R1

BACKREST

CUSHION, BACK - P V C, FITTED TO SEAT CPTE 113182

1шт.

5

3125998R1

BACKREST

CUSHION, BACK - CLOTH, FITTED TO SEAT CPTE 113183

1шт.

3125777R1

FRAME

GRAMMER

1шт.

6

3125999R1

CUSHION, SEAT

FRAME FITTED TO SEAT CPTE 113182, FITTED TO SEAT CPTE 113183

1шт.
