Запчасти Case IH 884 (13-038) - SAFETY CAB (05) - SUPERSTRUCTURE

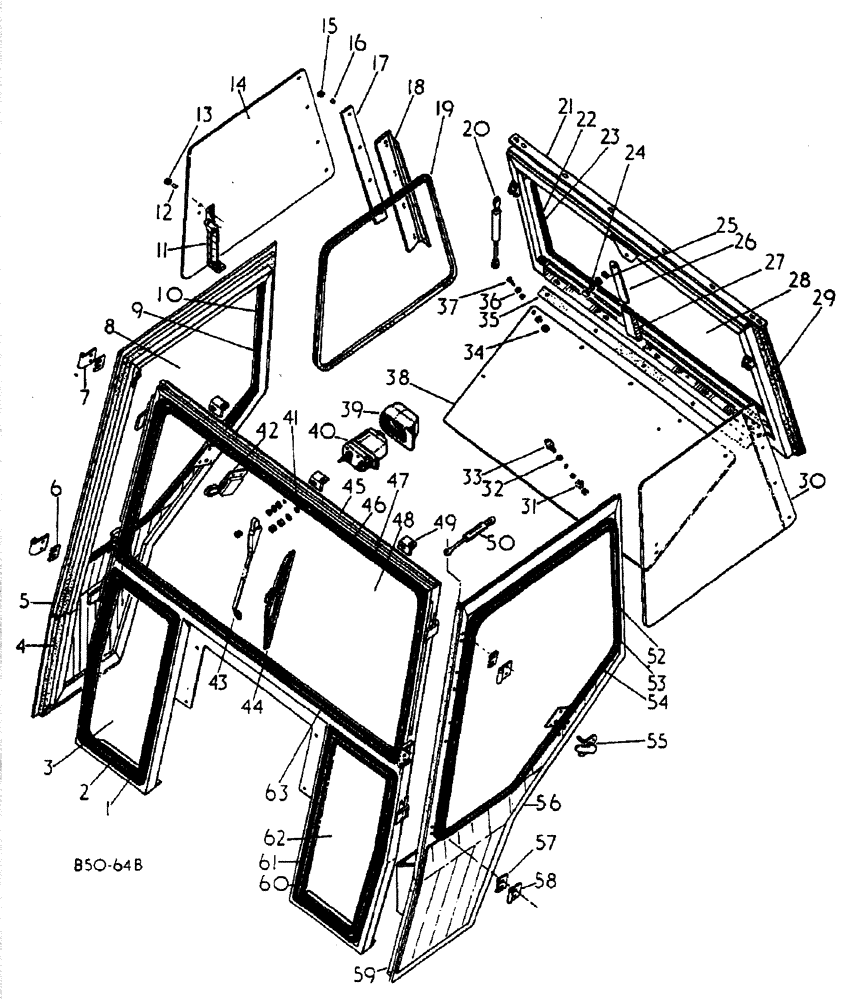

Схема запчастей Case IH 884 - (13-038) - SAFETY CAB (05) - SUPERSTRUCTURE
52
33
24
27
48
28
58
49
53
35
42
32
2
59
25
21
18
16
54
41
61
13
39
55
31
30
38
29
40
3
7
26
60
34
47
19
22
63
56
50
46
11
62
5
14
10
12
17
15
43
45
44
6
4
1
23
57
8
37
9
36
20

Артикул

Название

Примечание

Количество

1

3113560R1

SEAL

LOWER -R H

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL, FILLER -930MM, LOWER SCREEN HSG AND BOTTOM

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL, FILLER -709MM, LOWER SCREEN OUTSIDE

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL, FILLER -267MM, LOWER SCREEN TOP

1шт.

2

3123731R1

FILLING STRIP

SEAL, FILLER STRIP, BULK LENGTH 30 METRES

1шт.

3

3118695R1

GLASS

LOWER

1шт.

4

3123064R1

SEAL

DOOR FLANGE UPPER - 25 4 INS

1шт.

4

3123065R1

SEAL ASSY.

DOOR FLANGE REAR - 63 0 INS

1шт.

4

3123066R1

DOOR SEAL

DOOR FLANGE LOWER - 13 4 INS

1шт.

4

3123067R1

SEAL

DOOR FLANGE FRONT - 58 0 INS

1шт.

5

3123024R93

DOOR

CPTE, -R H

1шт.

3123026R3

DOOR

ASSY, R H, ON ORDER FOR R92 OR R2 ORDER, 3123024R93 OR 3123026R3 W/TWO PIVOT 3118418R1, RETAINER, 3125246R1 AND CLIP 3053111R1

1шт.

6

3116641R1

BAR

DOOR HINGE, AS REQUIRED 2 MAX PER HINGE

1шт.

7

3116642R1

SUPPORT

HINGE, INCLUDES: WASHERS, NUTS AND BOLTS

2шт.

120392

WASHER,1/4", SAE

281 X 625 X 051 PLN

4шт.

3116643R1

LOCK NUT

1/4 PHILIDAS PLASTIC CAP

4шт.

179795

TILLAGE BLADE

1/4 UNC X 3/4 HEX HD

4шт.

8

3123032R1

GLASS

DOOR -R H

1шт.

9

3123034R1

SEAL

CAB WINDOW R H DOOR

1шт.

10

NSS

NOT SOLD SEPARAT

STRIP, FILLER -637 5MM, DOOR VERTICAL

1шт.

10

NSS

NOT SOLD SEPARAT

STRIP, FILLER -430 5MM, DOOR ANGLE

1шт.

10

NSS

NOT SOLD SEPARAT

STRIP, FILLER -328 5MM, DOOR BOTTOM

1шт.

10

3123731R1

FILLING STRIP

SEAL, BULK LENGTH 30 METRES

1шт.

11

3123051R1

LEVER ASSY.

WINDOW LOCKING - R H, ILLUSTRATED

1шт.

11

3123050R1

LEVER ASSY.

WINDOW LOCKING -L H, INCLUDES: SCREWS, WASHERS AND NUTS

1шт.

23927R1

SCREW

1/4-20 X 3/4 PAN HD CR REC

4шт.

120392

WASHER,1/4", SAE

281 X 625 X 051 PLN

4шт.

3116643R1

LOCK NUT

1/4 UNC W/PLASTIC CAP

4шт.

12

3123049R1

SPACER

4шт.

13

3118661R1

GROMMET

4шт.

14

3123043R1

GLASS

SIDE WINDOW

1шт.

15

3118661R1

GROMMET

8шт.

16

3123047R1

SPACER

8шт.

17

3123048R1

RUBBER SEAL

RUBBER

2шт.

18

3123046R1

HINGE

SIDE WINDOW -R H, ILLUSTRATED

1шт.

18

3123045R1

HINGE

SIDE WINDOW -L H, INCLUDES: WASHERS, NUTS AND SCREWS

1шт.

23927R1

SCREW

1/4-20 X 3/4 PAN HD CR REC

8шт.

120392

WASHER,1/4", SAE

281 X 625 X 051 PLAIN

16шт.

3116643R1

LOCK NUT

1/4 UNC - W/PLASTIC CAP

8шт.

167084

SEAL PROTECTION

10-24 X 1/2 PAN HD CR REC TAP

10шт.

19

NSS

NOT SOLD SEPARAT

SEAL, WINDOW -2260MM

1шт.

19

3123060R1

SEAL

WINDOW -L H AND R H WINDOW, BULK LENGTH 150 FEET

1шт.

20

3123040R1

GAS STRUT,283.5mm Extended, 191.3mm Compressed

SPRING, INCLUDES: PINS, WASHERS AND RINGS

1шт.

3118431R1

CLEVIS PIN

CLEVIS

2шт.

3118432R1

WASHER

4шт.

3053111R1

RING, SNAP,M10, Ext

RING SNAP RETAINING

4шт.

21

3123721R92

GLASS

PANEL CPTE, REAR WINDOW, INCLUDES: WASHERS AND SCREWS

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

120393

BEARING WASHER,5/16", SAE

344 ID X 688 OD X 051 PLN

6шт.

103320

LOCK WASHER,5/16"

6шт.

22

3112496R1

SEAL

1шт.

23

NSS

NOT SOLD SEPARAT

STRIP, FILLER -2192MM, REAR WINDOW TOP AND SIDES

1шт.

23

NSS

NOT SOLD SEPARAT

STRIP, FILLER -1003MM, REAR WINDOW BOTTOM

1шт.

23

3123731R1

FILLING STRIP

SEAL, BULK LENGTH 30 METRES

1шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Latch Plate, Incl. Cover and Nut

1шт.

3121174R1

CAP

COVER, BOLT REAR WINDOW

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

25

536847R1

BELLEVILLE WASHER

BELLEVILLE

1шт.

26

3118655R1

HANDLE

PLATE, LATCH

1шт.

27

3118656R1

GRIP

LATCH

1шт.

28

3118697R1

GLASS

1шт.

29

3112498R1

SEAL, GLASS

REAR WINDOW

2шт.

30

3123043R1

GLASS

SIDE WINDOW

1шт.

31

3118685R1

LOCK NUT

6 MM PHILIDAS W/PLASTIC CAP

1шт.

32

3118659R1

GROMMET

1шт.

33

3118658R1

DAMPER

RUBBER, INCLUDES: WASHER

1шт.

120392

WASHER,1/4", SAE

281 X 625 X 051 PLN

1шт.

34

3119440R1

LOCK NUT

1/4 UNC PHILIDAS

5шт.

35

3118662R1

RUBBER SEAL

RUBBER

1шт.

36

3118661R1

GROMMET

1шт.

37

3118660R1

BOLT

SHOULDER, INCLUDES: WASHERS

5шт.

120392

WASHER,1/4", SAE

281 X 625 X 051 PLN

5шт.

120394

WASHER,3/8", SAE

406 X 812 X 051 PLN

5шт.

38

3118657R1

GLASS

LOWER REAR WINDOW

1шт.

39

3124465R1

PROTECTOR

GUARD, HEAD RUBBER UP TO 602

1шт.

39

3124465R1

PROTECTOR

GUARD, RUBBER HEAD 603 UP

1шт.

40

3125203R91

WIPER MOTOR

MOTOR, WIPER WINDSCREEN, UP TO 602, ORDER MOTOR 2125203R91, GUARD 3124465R1, ARM 3125204R91, BLADE 3125205R91, LEAD 3125206R1 AND 3125207R1

1шт.

40

3125203R1

MOTOR HOUSING

CPTE WINDSCREEN, INCLUDES: CABLE

1шт.

3125206R1

CABLE

FLYING LEAD

1шт.

3125207R1

CABLE

FLYING LEAD -EARTH, 603 UP

1шт.

41

3112426R1

GROMMET

WIPER ENTRY

1шт.

42

3112461R91

HANDLE

AND LATCH ASSY, INSIDE -R H, ILLUSTRATED

1шт.

42

3112460R91

HANDLE

AND LATCH ASSY, INSIDE -L H, INCLUDES: WASHERS AND SCREWS

1шт.

178716

SCREW,#10 - 32 x 3/8"

10-32 X 3/8 TAP

8шт.

120391

WASHER,#10

10-1/2 X 036 ZND

8шт.

43

3125204R91

ARM

WIPER, UP TO 602

1шт.

43

3125204R91

ARM

WIPER, 603 UP

1шт.

44

NSS

NOT SOLD SEPARAT

BLADE, UP TO 602

1шт.

44

3125205R91

BLADE

WIPER, 603 UP

1шт.

45

3112425R1

SEAL

WINDSCREEN TOP

1шт.

46

3113555R1

SEAL

1шт.

47

NSS

NOT SOLD SEPARAT

STRIP, FILLER -2372MM, WINDSCREEN TOP AND SIDES

1шт.

47

NSS

NOT SOLD SEPARAT

STRIP, FILLER -1153MM, WINDSCREEN BOTTOM

1шт.

47

3123731R1

FILLING STRIP

SEAL, STRIP, BULK LENGTH 30 METRES

1шт.

48

3118694R1

GLASS

UPPER

1шт.

49

3113566R1

ANGLE

WINDSCREEN MOUNTING, INCLUDES: WASHERS AND SCREWS

3шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

103320

LOCK WASHER,5/16"

3шт.

120393

BEARING WASHER,5/16", SAE

344 ID X 688 OD X 051 PLN, ANGLE TO WINDSCREEN

3шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

103320

LOCK WASHER,5/16"

3шт.

120393

BEARING WASHER,5/16", SAE

344 ID X 688 OD X 051 PLN, ANGLE TO TOP FRAME

3шт.

50

3123040R1

GAS STRUT,283.5mm Extended, 191.3mm Compressed

SPRING, DOOR, INCLUDES: WASHERS, RETAINERS AND CLIPS

2шт.

3123042R1

WAVE WASHER

11 5 X 15 0 WAVE

2шт.

3125246R1

RETAINER

2шт.

3053111R1

RING, SNAP,M10, Ext

RING SNAP CLIP, RETAINING, DOORS FITTED W/CIRCLIP AND RETAINER 120 DEG OPENING

2шт.

50

3123040R1

GAS STRUT,283.5mm Extended, 191.3mm Compressed

SPRING, DOOR, INCLUDES: WASHERS, NUTS, SCREWS, BRACKETS AND BOLTS

2шт.

3123041R1

SET SCREW

5/16-18 SHOULDER SET

4шт.

80681

LOCK WASHER,5/16"

4шт.

3123042R1

WAVE WASHER

11 5 X 15 0 WAVE

8шт.

114502

JAM NUT,Jam, 5/16"-18, G5

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

3123039R1

BRACKET

DOOR STRUT

2шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

80682

LOCK WASHER,1/4"

Doors fitted w/strut and 90 deg opening

4шт.

51

NOT USED

1шт.

52

3123032R1

GLASS

DOOR -L H

1шт.

53

3123033R1

SEAL

L H

1шт.

54

NSS

NOT SOLD SEPARAT

STRIP, FILLER -637 5MM, DOOR VERTICAL

1шт.

54

NSS

NOT SOLD SEPARAT

STRIP, FILLER -430 5MM, DOOR ANGLE

1шт.

54

NSS

NOT SOLD SEPARAT

STRIP, FILLER -328 5MM, DOOR BOTTOM

1шт.

54

3123731R1

FILLING STRIP

SEAL, BULK LENGTH 30 METRES

1шт.

55

3113466R91

HANDLE

OUTSIDE, INCLUDES: WASHERS, NUTS AND SCREWS

2шт.

3112458R1

SCREW

2BA X 5/8 CSK HD

4шт.

120217

LOCK WASHER,#10

4шт.

3112459R1

NUT

2BA

4шт.

56

3123023R93

DOOR

COMPLETE -L H, INCLUDES: DOOR ASSY.

1шт.

3123025R3

DOOR

ASSY, L H ON ORDERS FOR R92 OR R2 ORDER 3123023R93 OR 3 12025R3 W/TWO PIVOT 3118418R1, RETAINER 3125246R1 AND CLIP 3053111R1

1шт.

57

3116641R1

BAR

AS REQUIRED 2 MAXIMUM PER HINGE

1шт.

58

3116642R1

SUPPORT

HINGE, INCLUDES: WASHERS, NUTS AND BOLTS

2шт.

120392

WASHER,1/4", SAE

281 X 625 X 051 PLN, AS REQUIRED

1шт.

3116643R1

LOCK NUT

1/4 UNC W/PLASTIC CAP

4шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4 UNC X 3/4 HEX HD

4шт.

59

3123064R1

SEAL

DOOR FLANGE -UPPER- 25 4 INS

1шт.

59

3123065R1

SEAL ASSY.

DOOR FLANGE -REAR- 63 0 INS

1шт.

59

3123066R1

DOOR SEAL

DOOR FLANGE -LOWER- 13 4 INS

1шт.

59

3123067R1

SEAL

DOOR FLANGE -FRONT- 58 0 INS

1шт.

60

3113559R1

SEAL

LOWER -L H

1шт.

61

NSS

NOT SOLD SEPARAT

STRIP, FILLER -930MM, LOWER SCREEN OUTSIDE BOTTOM

1шт.

61

NSS

NOT SOLD SEPARAT

STRIP, FILLER -1153MM, WINDSCREEN BOTTOM

1шт.

61

NSS

NOT SOLD SEPARAT

STRIP, FILLER -267MM, LOWER SCREEN TOP

1шт.

61

3123731R1

FILLING STRIP

SEAL, BULK LENGTH 30 METRES

1шт.

62

3118695R1

GLASS

LOWER

1шт.

63

3123013R91

X

WINDSHIELD, CPTE, INCLUDES: FRAME, WASHERS, NUTS AND SCREWS

1шт.

3123014R1

FRAME

WINDSCREEN ASSY

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

4шт.

120394

WASHER,3/8", SAE

406 ID X 812 OD X 051 PLN

4шт.

3112426R1

GROMMET

RUBBER, WINDSCREEN TO LOWER FRAME

2шт.

1092996R1

PRODUCT GRAPHIC

CAB WARNING, NOT ILLUSTRATED

1шт.

1093182R1

CAUTION DECAL

PRODUCT-GRAPHIC, CAUTION, NOT ILLUSTRATED

1шт.

1093189R1

PRODUCT GRAPHIC

DOOR L H, NOT ILLUSTRATED

1шт.

1093190R1

PRODUCT GRAPHIC

DOOR R H, NOT ILLUSTRATED

1шт.

1093191R1

DECAL

SPARE PART PRODUCT-GRAPHIC, A-PILLAR L H, NOT ILLUSTRATED

1шт.

1093192R1

DECAL

SPARE PART PRODUCT-GRAPHIC, A-PILLAR R H, NOT ILLUSTRATED

1шт.

1093193R1

PRODUCT GRAPHIC

C-PILLAR L H, NOT ILLUSTRATED

1шт.

1093194R1

PRODUCT GRAPHIC

C-PILLAR R H, NOT ILLUSTRATED

1шт.

2754343R1

PRODUCT GRAPHIC

INTERNATIONAL, NOT ILLUSTRATED

1шт.

Выбрано товаров: 159
