Запчасти Case IH 884 (02-002) - REAR WHEEL WEIGHTS Accessories & Attachments / Miscellaneous

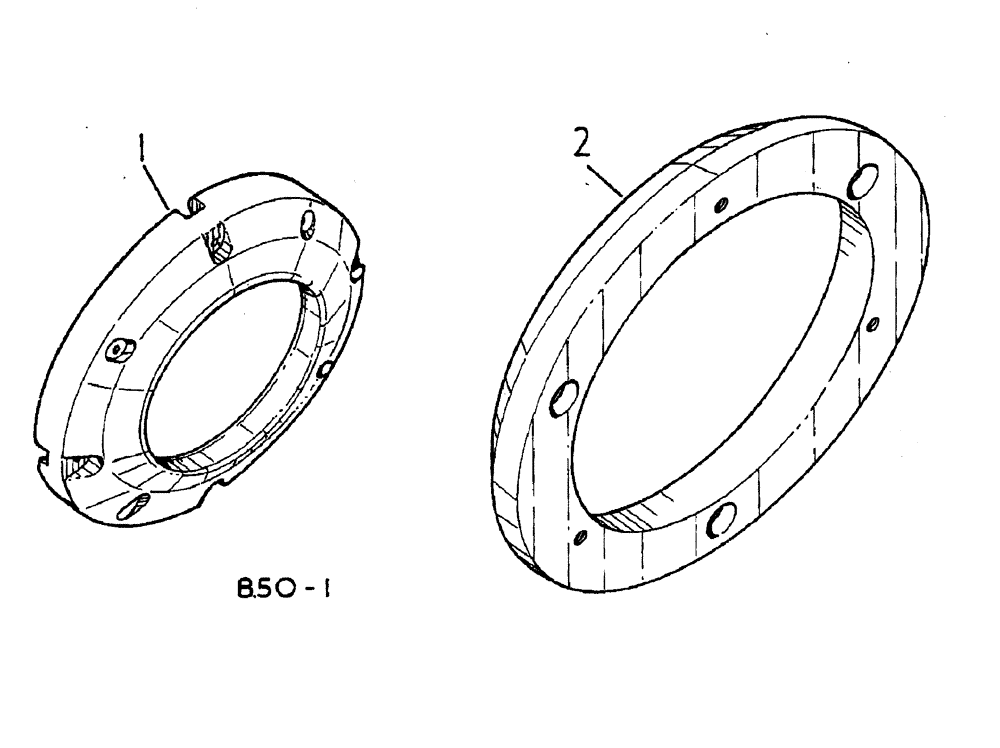

Схема запчастей Case IH 884 - (02-002) - REAR WHEEL WEIGHTS Accessories & Attachments / Miscellaneous
1
2

Артикул

Название

Примечание

Количество

1

406857R3

WEIGHT

WHEEL rear, APPROX 120 LBS, used w/wheels 28, 30, 32, 34 IN, for first set, Includes: screws, washers, nuts and spacers

2шт.

181151

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

hex HD, 7/16-14 x 3-1/4, cap

8шт.

21029R1

WASHER

15/32 x 1 x 11 GA C Z

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

8шт.

271501

SOCKET

hex, 7/16-14

8шт.

537133R1

SPACER

TAPER

8шт.

1

406857R3

WEIGHT

WHEEL rear, APPROX 120 LBS, used w/wheels 28, 30, 32, 34 IN, for second set, Includes: screws, washers and nuts

4шт.

189652

BOLT,Hex, 7/16" - 14 x 4 3/4", Gr 5

hex HD, 7/16-14 x 4-3/4 PHC, cap

8шт.

21029R1

WASHER

15/32 x 1 x 11 GA C Z

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

8шт.

NLS

NO LONGER SERVICED

hex, 7/16-14

8шт.

181151

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

hex HD, 7/16-14 x 3-1/4 PHC, cap

8шт.

Tractor with additional weights

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

8шт.

Tractor with additional weights

1шт.

2

406858R1

WEIGHT

WHEEL rear, APPROX 170 lbs, used w/wheels 36.38 IN, for first set, Includes: screws, washers, nuts

2шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, hex HD, 5/8-11 x 1-1/4 ZND, cap

6шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 x 1-5/16 x 074 C Z

12шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

hex, 5/8-11 C Z

6шт.

2

406858R1

WEIGHT

WHEEL rear, APPROX 170 LBS, Includes: screws, washers, and nuts

4шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

hex HD CAP, 5/8-11 x 5 ZND

6шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 x 1-5/16 x 074 C Z

6шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

hex, 5/8-11 C Z

6шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, hex HD, 5/8-11 x 1-1/4 ZND, cap

6шт.

Tractor with additional weights

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 x 1-5/16 x 074 C Z

6шт.

Tractor with additional weights

1шт.

Выбрано товаров: 27
