Запчасти Case IH 884 (13-026) - STEERING SUPPORT (05) - SUPERSTRUCTURE

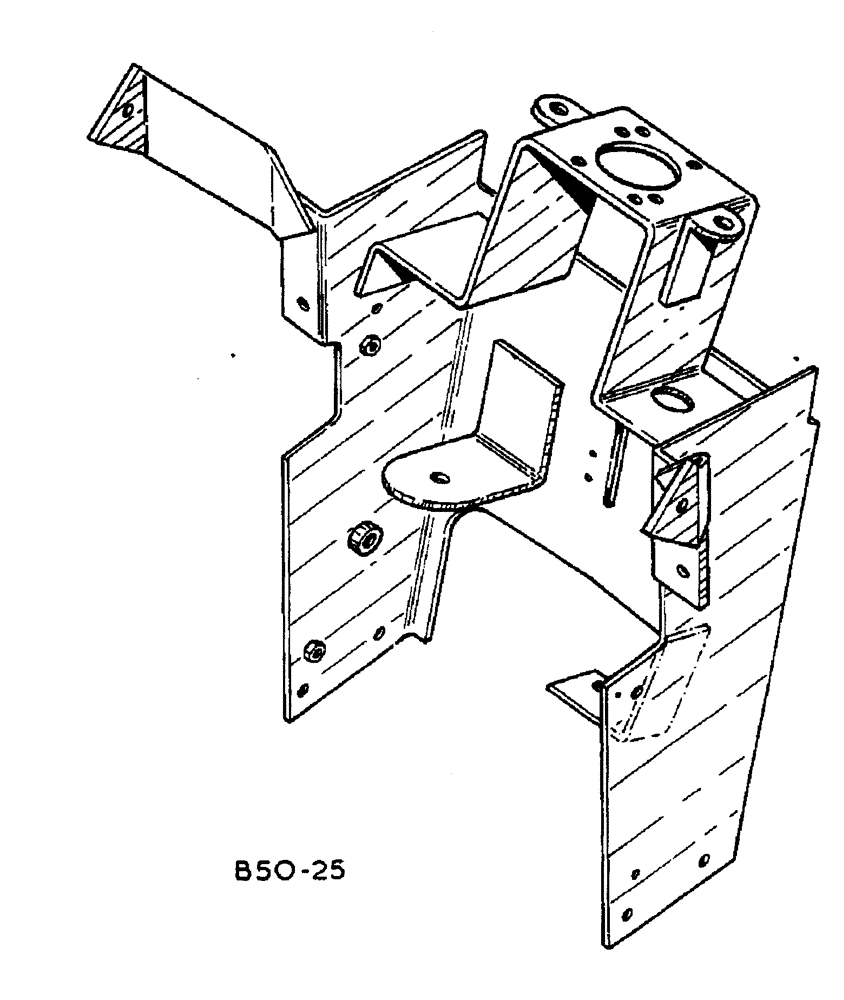

Схема запчастей Case IH 884 - (13-026) - STEERING SUPPORT (05) - SUPERSTRUCTURE

Артикул

Название

Примечание

Количество

1

3121632R2

SUPPORT ASSY.

STEERING, MACHINE NOT FITTED W/CAB, SUPER DE-LUXE CAB, INCLUDES: SCREWS

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

4шт.

1

3123011R2

SUPPORT ASSY, STEERING, MACHINE FITTED W/CAB, SYNCHROMESH DRIVE TRACTORS, INCLUDES: SCREWS AND WASHERS

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

Moulding, Edge -328 5MM

2шт.

3121114R1

ROLL

SEAL, EDGING, BULK LENGTH 100FT

1шт.

Выбрано товаров: 6
