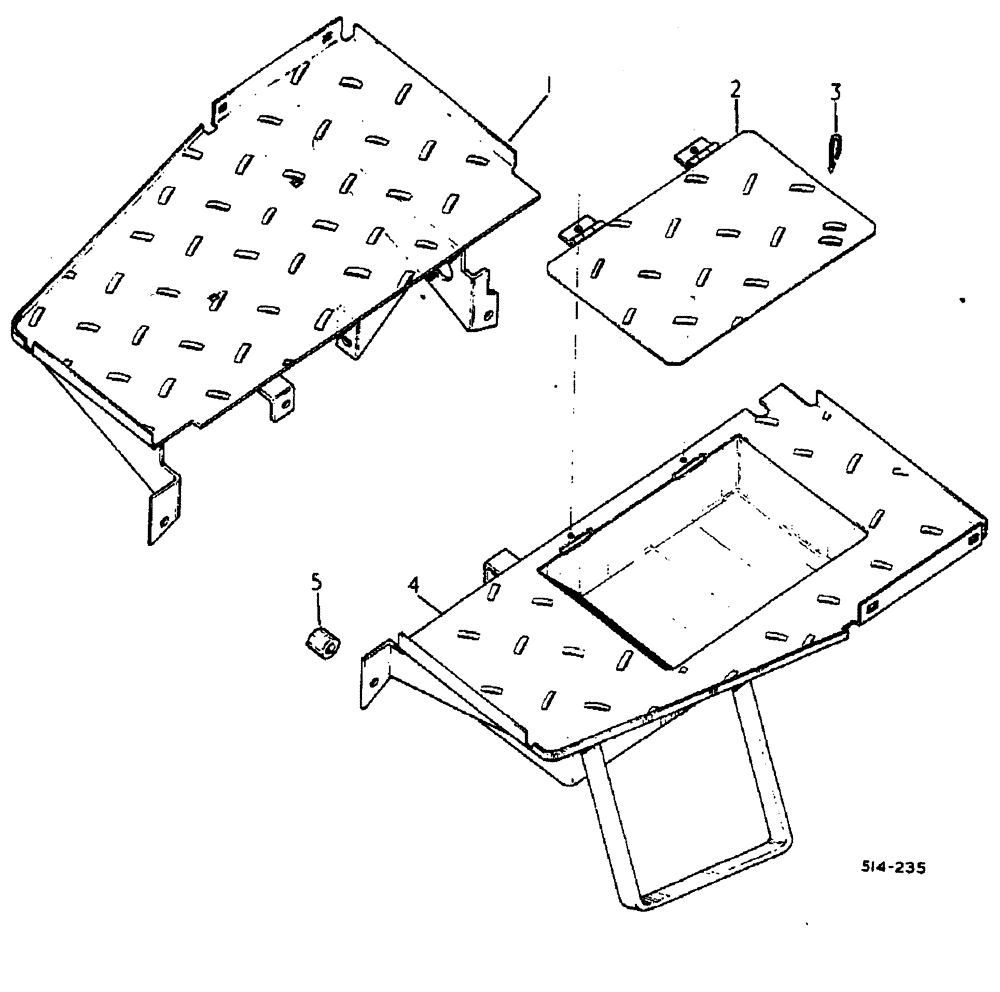

Запчасти Case IH 884 (13-020) - PLATFORM, MOUNTING STEP AND TOOLBOX - MACHINE NOT FITTED, WITH CAB (05) - SUPERSTRUCTURE

1

528523R2

STEP

PLATFORM ASSY, R H, STANDARD MACHINES

1шт.

1

3121556R1

PLATFORM ASSY.

SPARE PART R H, 4 WHEEL DRIVE, INCLUDES: BOLTS, NUTS, SCREWS AND WASHERS

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8-16 X 3/4 SHORT SQ NK CRG

2шт.

102635

NUT,3/8"-16, G5

2шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

103323

LOCK WASHER,1/2"

2шт.

103321

LOCK WASHER,3/8"

3шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051)

2шт.

2

538421R1

COVER ASSY

TOOL

1шт.

3

528917R1

RING

FINGER PULL

1шт.

4

528910R2

PLATFORM ASSY.

L H, INCLUDES: BOLTS, NUTS, SCREWS AND WASHERS

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8-16 X 3/4 SHORT SQ NK CRG

2шт.

102635

NUT,3/8"-16, G5

2шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

103323

LOCK WASHER,1/2"

2шт.

103321

LOCK WASHER,3/8"

3шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051)

2шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4-20 X 5/8 C-Z SLT PAN HD

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

5

528909R1

SPACER

L H PLATFORM

1шт.
