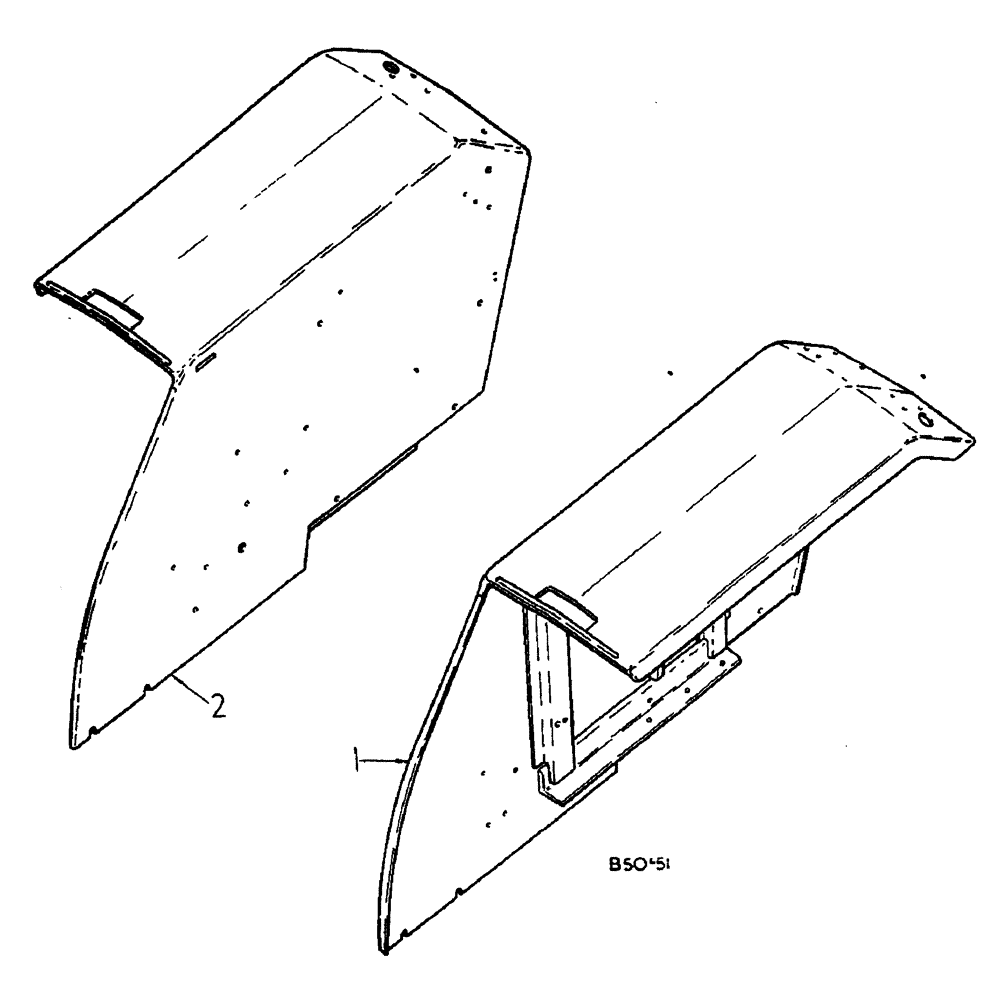

Запчасти Case IH 884 (13-018) - REAR FENDERS - FLAT TOP (05) - SUPERSTRUCTURE

1

3123100R2

FENDER ASSY.

L H W/PRODUCT-GRAPHIC

1шт.

2

3123101R2

FENDER ASSY.

R H, INCLUDES: SCREWS AND WASHERS

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

80681

LOCK WASHER,5/16"

6шт.

180085

SPRING

5/16-18 X 1-3/4 HEX HD CAP, TO REAR TOP COVER

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

To transmission shift control housing or draft control housing

2шт.

181163

SCREW,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 HEX HD CAP

4шт.

116121

LOCK WASHER,1/2"

To axle carrier

4шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8-16 X 5/8 HEX HD CAP

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

To parking brake bracket

3шт.

3112888R1

PLUG

PLOUGH LIGHT BLANKING, NOT ILLUSTRATED

1шт.

3125820R1

SLEEVE

PVC, FOR USE W/FENDER ASSY'S, NOT ILLUSTRATED

8шт.
