Артикул
Название
Примечание
Количество

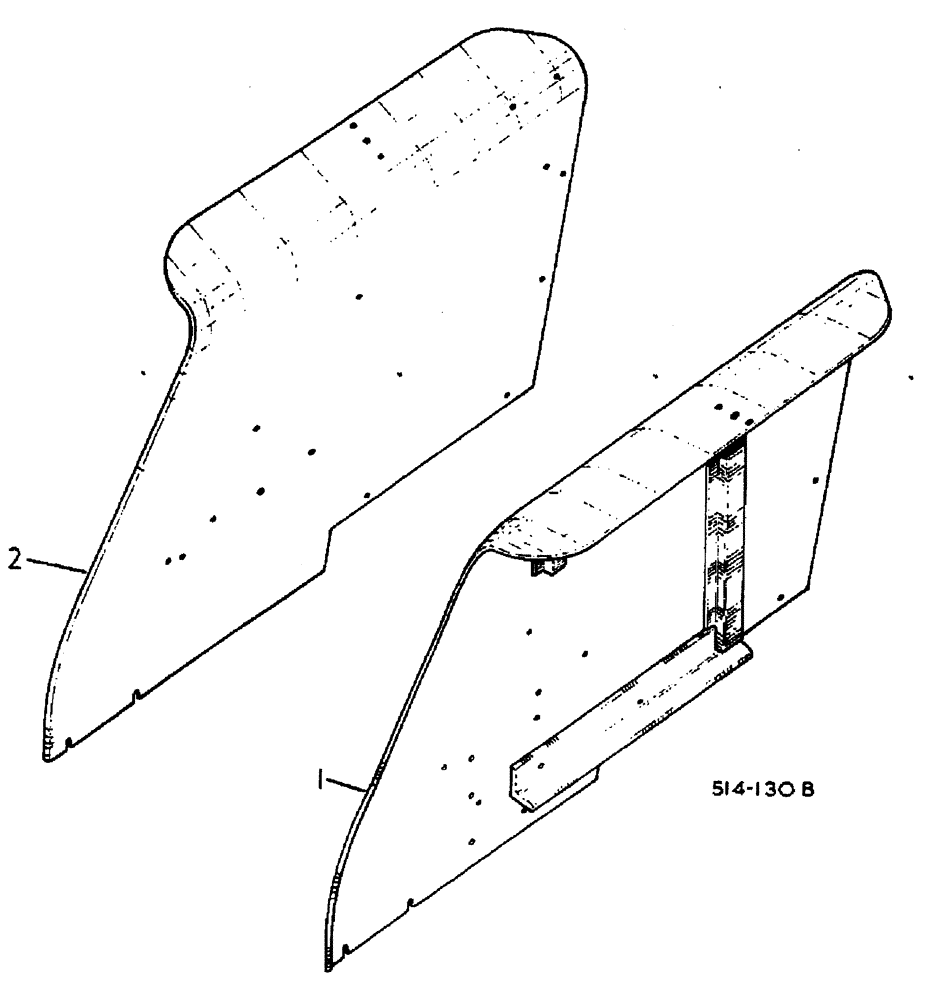

1
538641R4
FENDER ASSY.
L H W/PRODUCT-GRAPHIC
1шт.
2
530015R5
FENDER
R H, INCLUDES: NUTS, SCREWS AND WASHERS
1шт.
88574
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd
6шт.
80681
LOCK WASHER,5/16"
To rear top cover
6шт.
88574
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd
2шт.
80681
LOCK WASHER,5/16"
2шт.
120376
NUT,5/16"-18, G5
To transmission shift control housing or draft control housing
2шт.
181163
SCREW,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2-13 X 1-1/4 HEX HD CAP
4шт.
116121
LOCK WASHER,1/2"
To axle carrier
4шт.
180118
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5
3/8-16 X 5/8 HEX HD CAP
2шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
To parking brake bracket
3шт.
3113657R1
PLUG
SIDE AND TAIL LIGHT BLANKING, NOT ILLUSTRATED
4шт.
3113430R1
PLUG
SIDE AND TAIL LIGHT BLANKING, NOT ILLUSTRATED
2шт.
3112888R1
PLUG
BLANKING HOLE 1/2, NOT ILLUSTRATED
1шт.
531625R1
GROMMET
NOT ILLUSTRATED
2шт.
3125820R1
SLEEVE
PVC, FOR USE W/FENDER ASSY'S, NOT ILLUSTRATED
1шт.
Выбрано товаров: 17
