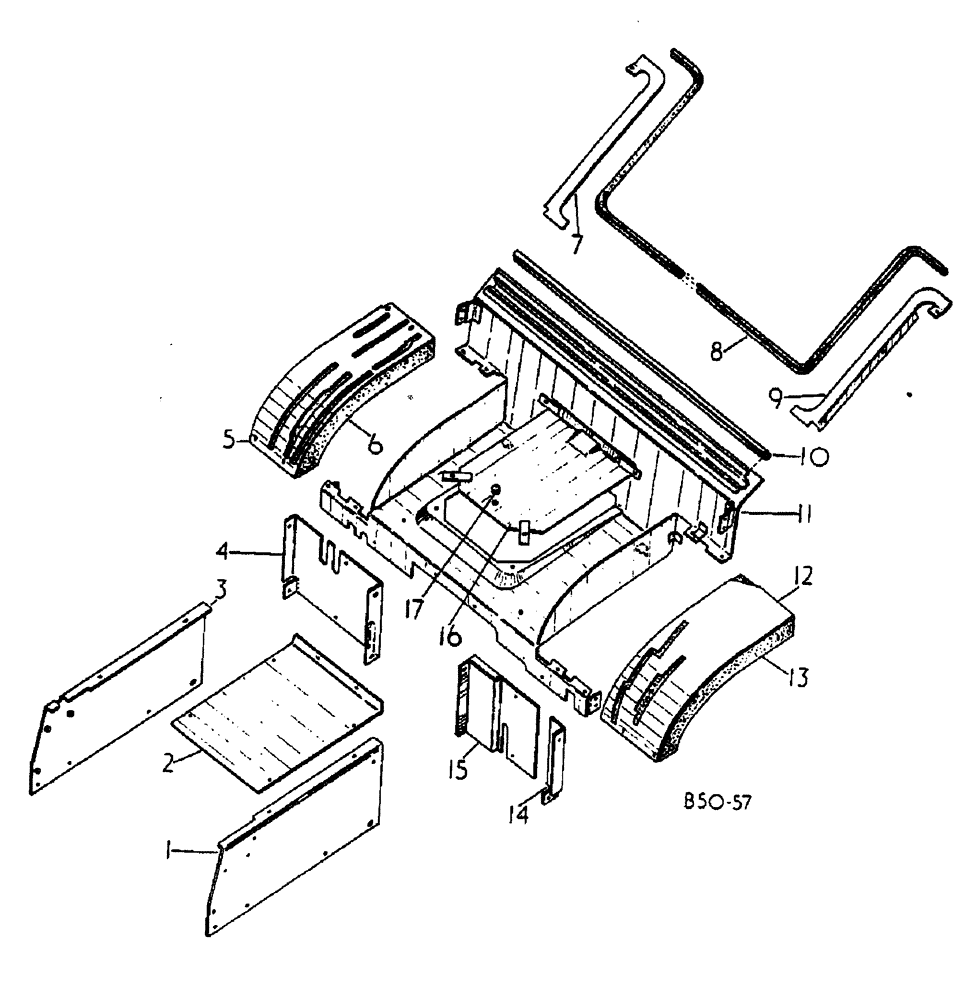

Запчасти Case IH 884 (13-010) - REAR PANELS - 884 - MACHINES FITTED WITH CAB (05) - SUPERSTRUCTURE

1

3116174R2

PLATE

PLATE ASSY, TRANS SIDE - L H, INCLUDES: INSULATOR, NUTS, SCREWS, WASHERS AND SPACERS

1шт.

3123771R1

INSULATOR

SPARE PART TRANS SIDE PLATE L H

1шт.

3112992R1

NUT

INSERT 1/4-20

4шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

3шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

3шт.

103319

LOCK WASHER,1/4"

Plate to steering support

3шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

103319

LOCK WASHER,1/4"

4шт.

139280H1

SPACER

SPARE PART PLATE TO PLATFORMS

3шт.

2

3116183R1

PLATE

TRANS COVER, INCLUDES: INSULATOR, SCREWS AND WASHERS

1шт.

3123769R1

INSULATOR

TRANS COVER PLATE

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

6шт.

103319

LOCK WASHER,1/4"

Plate to side plates, plate to seat platform

6шт.

3

3116176R1

PLATE ASSY.

SPARE PART TRANS SIDE -R H, INCLUDES: INSULATOR, NUTS, WASHERS, SPACERS AND SCREWS

1шт.

3123773R1

INSULATOR

TRANS SIDE PLATE R H

1шт.

3112992R1

NUT

INSERT 1/4-20

4шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

3шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

3шт.

103319

LOCK WASHER,1/4"

3шт.

139280H1

SPACER

SPARE PART PLATE TO STEERING SUPPORT

3шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

103319

LOCK WASHER,1/4"

Plate to platforms

4шт.

4

3116171R1

CHANNEL

REAR -R H, INCLUDES: SCREWS, WASHERS, SCREWS AND NUT

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

103319

LOCK WASHER,1/4"

4шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

CHANNEL TO SEAT PLATFORM, CHANNEL TO SIDE PLATES, CHANNEL TO PLATFORMS

4шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

1шт.

103319

LOCK WASHER,1/4"

1шт.

109084

NUT,1/4"-20, G5

Channel to fender

1шт.

5

3116173R3

HOUSING

HITCH CONTROL, STANDARD MACHINES

1шт.

5

3121852R2

HOUSING ASSY, HITCH CONTROL, 4 WHEEL DRIVE, INCLUDES: SCREWS AND WASHERS

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

103319

LOCK WASHER,1/4"

4шт.

6

3116807R3

INSULATOR

HITCH CONTROL, STANDARD MACHINES

1шт.

6

3121583R2

INSULATOR

HITCH CONTROL, 4 WHEEL DRIVE

1шт.

7

3118650R2

SUPPORT

SEAL -R H, INCLUDES: SCREWS, NUTS AND WASHERS

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

2шт.

120392

WASHER,1/4", SAE

2шт.

23985R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL, LOWER -865MM

1шт.

8

3118678R1

SEAL

LOWER -BULK LENGTH 150 FT

1шт.

9

3118649R2

SUPPORT

SEAL -L H, INCLUDES: SCREWS, NUTS AND WASHERS

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

2шт.

120392

WASHER,1/4", SAE

2шт.

23985R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL, UPPER -1872MM

1шт.

10

3118678R1

SEAL

UPPER -BULK LENGTH 150 FT

1шт.

11

3116157R2

PLATFORM

CPTE, SEAT, INCLUDES: NUTS, SCREWS AND WASHERS

1шт.

31188431

INSERT 1/4-20

16шт.

3112951R1

NUT

INSERT 5/16-18

4шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

109084

NUT,1/4"-20, G5

8шт.

103319

LOCK WASHER,1/4"

8шт.

120392

WASHER,1/4", SAE

8шт.

12

3116165R2

HOUSING

CPTE, TRANS SHIFT PATTERN, SYNCHROMESH TRACTORS, INCLUDES: SCREWS AND WASHERS

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

103319

LOCK WASHER,1/4"

4шт.

13

3116803R1

INSULATOR

TRANS SHIFT PATTERN HOUSING

1шт.

14

3116810R1

CHANNEL

REAR VERTICAL OUTER -L H, INCLUDES: SCREWS, WASHERS AND NUT

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

103319

LOCK WASHER,1/4"

1шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

281 ID X 625 OD X 051 PLN, REAR CHANNEL TO PLATFORM

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

1шт.

103319

LOCK WASHER,1/4"

1шт.

109084

NUT,1/4"-20, G5

Rear channel to fenders

1шт.

15

3116927R2

CHANNEL

VERTICAL INNER -L H, INCLUDES: SCREWS AND WASHERS

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

103319

LOCK WASHER,1/4"

Rear channel to seat platform, Rear channel to side plate, Rear channel to platforms

4шт.

16

3116161R1

PLATE

SPARE PART CPTE, HOUSING COVER, INCLUDES: SCREW AND WASHERS

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

103319

LOCK WASHER,1/4"

4шт.

17

538239R1

PLUG

GROMMET, HOUSING COVER PLATE

1шт.

3125820R1

SLEEVE

PVC FOR USE W/PLATFORM CPTE, SEAT

4шт.
