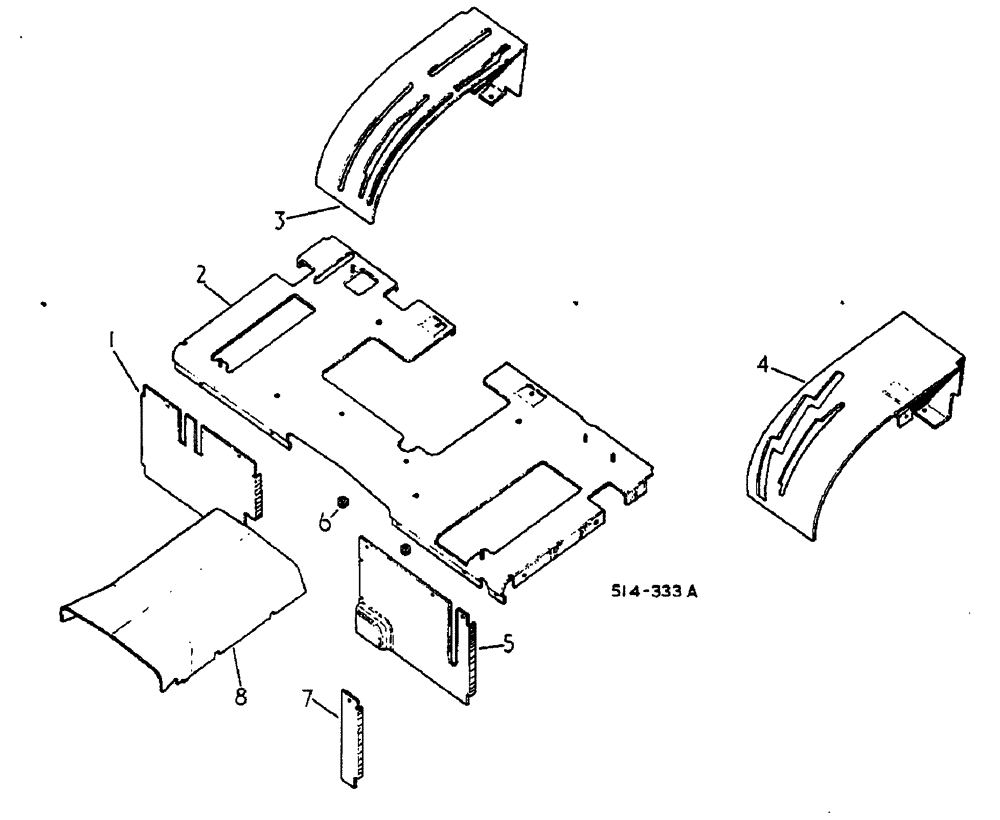

Запчасти Case IH 884 (13-006) - REAR PANELS - 884 - MACHINES NOT FITTED WITH CAB (05) - SUPERSTRUCTURE

1

527858R3

CHANNEL

ASSY, REAR VERTICAL R H, INCLUDES: SCREWS

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW, 1/4-20 X 1/2 C-Z HEX HD TAP

2шт.

2

528640R4

COVER ASSY

PLATFORM ASSY, SEAT, INCLUDES: NUTS AND WASHERS

1шт.

120368

NUT,5/16"-24, G5

5шт.

80681

LOCK WASHER,5/16"

5шт.

3

529457R61

COVER ASSY

HITCH CONTROL LEVER, STANDARD MACHINES

1шт.

3

3121558R1

HOUSING

COVER ASSY, HITCH CONTROL LEVER, 4 WHEEL DRIVE

1шт.

4

529384R21

HOUSING ASSY.

TRANS SHIFT, SYNCHROMESH DRIVE

1шт.

5

528638R2

PROTECTION PLATE

CHANNEL ASSY, REAR VERTICAL L H, INCLUDES: SCREWS

1шт.

180018

CONNECTING LINK

SCREW, 1/4-20 X 5/8

3шт.

6

401941R1

SPACER

MOUNTING SHORT

2шт.

6

3121756R1

SPACER

MOUNTING SHORT

2шт.

6

401941R1

SPACER

MOUNTING SHORT, INCLUDES: NUTS

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

Seat deck, Super de-luxe cab

2шт.

7

NOT APPLICABLE

1шт.

8

66290C1

COVER

ASSY, CLUTCH HOUSING, INCLUDES: SCREWS

1шт.

445957

INDICATOR

1/4-20 X 3/8 C-Z SLT-PAN-HD MACH

4шт.

3125820R1

SLEEVE

PVC, FOR USE W/PLATFORM CPTE, SEAT, NOT ILLUSTRATED

6шт.
