Запчасти Case IH 884 (13-002) - HOOD AND PANEL (05) - SUPERSTRUCTURE

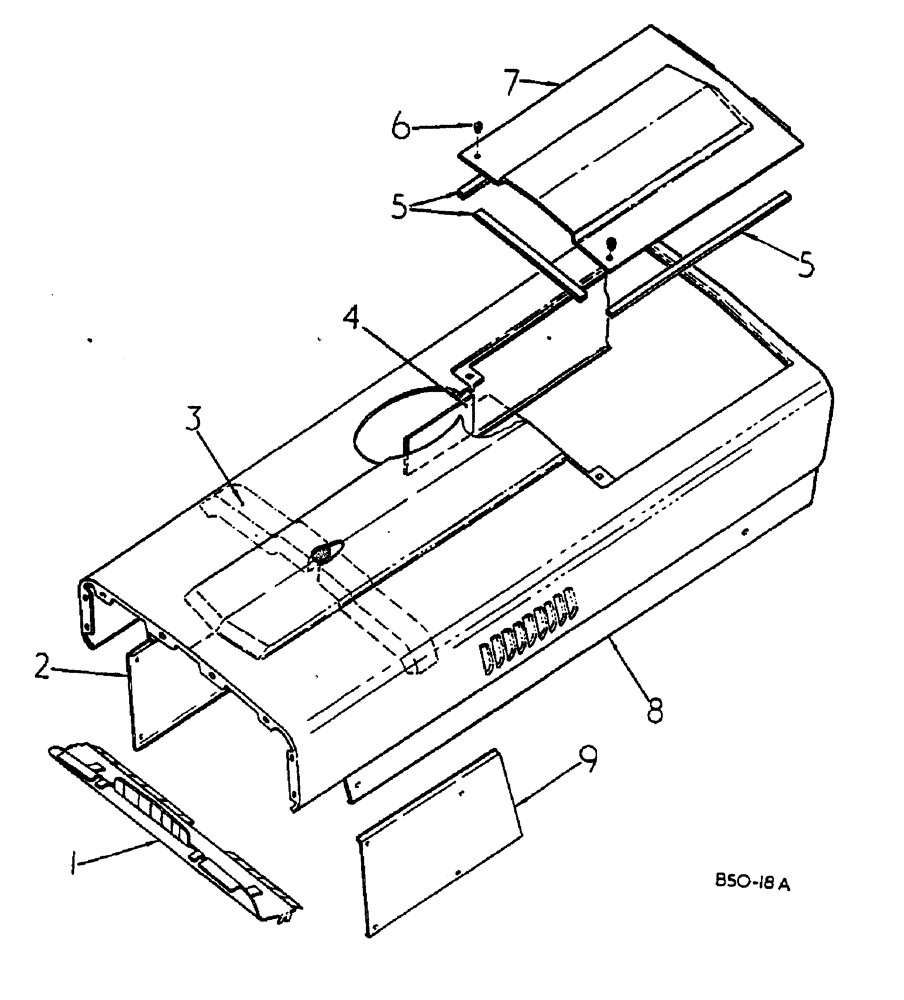

Схема запчастей Case IH 884 - (13-002) - HOOD AND PANEL (05) - SUPERSTRUCTURE
5
6
1
3
9
4
5
8
7
2

Артикул

Название

Примечание

Количество

1

3121397R2

BAFFLE

UPPER, INCLUDES: WASHERS AND NUTS

1шт.

95-11028

WASHER,1/4"

281 X 625 X 051

4шт.

103319

LOCK WASHER,1/4"

4шт.

109084

NUT,1/4"-20, G5

4шт.

2

3121399R1

PANEL

SIDE R H, STANDARD MACHINES

1шт.

2

3121396R1

PANEL

SIDE R H, 4 WHEEL DRIVE

1шт.

3118624R1

SCREW

5/16"-18 C-Z Hex Washer Hd

4шт.

3

NSS

NOT SOLD SEPARAT

GASKET, 15 IN

2шт.

3

3125487R1

GASKET

FOAM, BULK LENGTH 4 FT

1шт.

4

3121377R1

SHIELD

HEAT

2шт.

5

NSS

NOT SOLD SEPARAT

SEAL, REAR HOOD COVER -16FT

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL, REAR HOOD COVER -50FT

2шт.

5

3121163R1

SEAL

REAR HOOD COVER, BULK LENGTH 25 FT

1шт.

6

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

2шт.

6

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

OPTIONAL, INCLUDES: WASHERS

2шт.

376787R1

WASHER

2шт.

7

3121393R91

COVER ASSY

REAR HOOD

1шт.

8

3121383R91

HOOD

ASSY. TRACTOR W/VERTICAL EXHAUST, STANDARD MACHINES, DE-LUXE CAB -

1шт.

8

3123989R91

HOOD

ASSY., SWEDEN

1шт.

8

3121381R91

HOOD ASSY.

4 WHEEL DRIVE

1шт.

8

3121389R91

HOOD ASSY.

TRACTOR W/UNDERSLUNG EXHAUST, INCLUDES: NUTS, WASHERS AND SCREWS

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 CAGE

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

80681

LOCK WASHER,5/16"

2шт.

3121721R1

SCREW

5/16-18 HEX WASHER HD

4шт.

9

3121398R1

PANEL

SIDE L H, STANDARD MACHINES

1шт.

9

3121395R1

PANEL

SIDE L H, 4 WHEEL DRIVE, INCLUDES: BOLTS

1шт.

3118624R1

SCREW

5/16"-18 C-Z Hex Washer Hd

4шт.

Выбрано товаров: 28
