Запчасти Case IH 884 (07-118) - DIFFERENTIAL - 4 WHEEL DRIVE - Z F 4 WHEEL DRIVE - 3230285R1 (04) - Drive Train

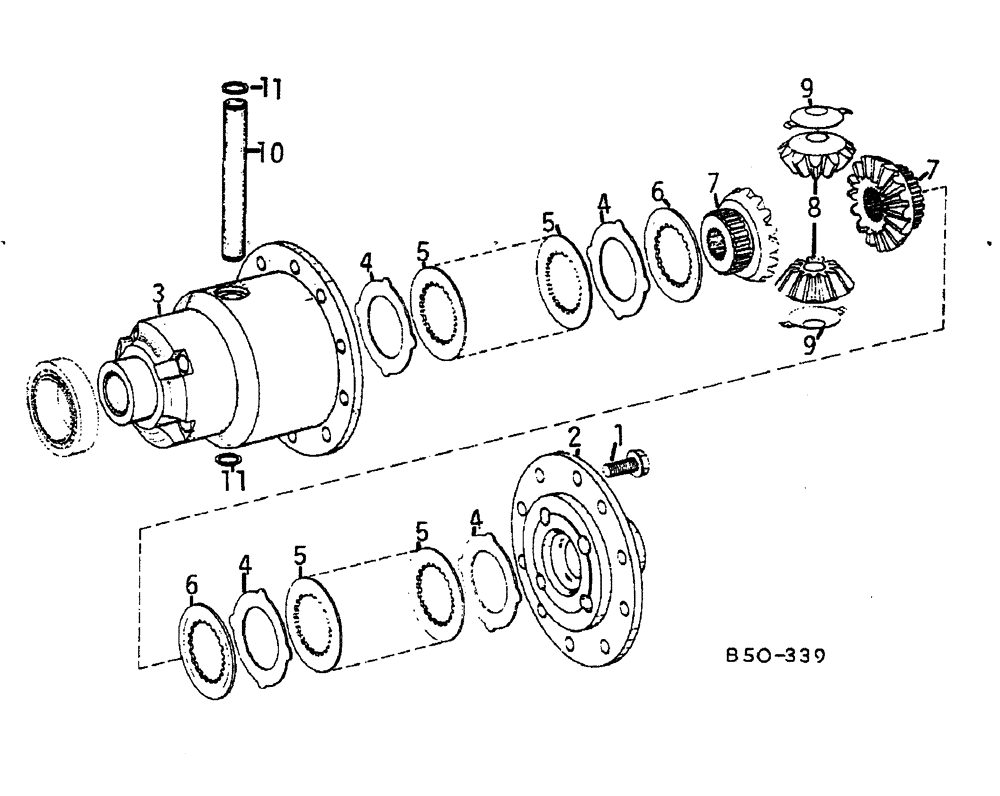

Схема запчастей Case IH 884 - (07-118) - DIFFERENTIAL - 4 WHEEL DRIVE - Z F 4 WHEEL DRIVE - 3230285R1 (04) - Drive Train
9
4
5
2
5
5
7
11
6
11
1
8
4
10
9
6
4
4
3
5
7

Артикул

Название

Примечание

Количество

1

3230285R1

BOLT

M10 X 22 LOCKING

10шт.

2

NSS

NOT SOLD SEPARAT

CASE, DIFFERENTIAL I

1шт.

3

NSS

NOT SOLD SEPARAT

CASE, DIFFERENTIAL II

1шт.

4

3223459R1

SHIM

PLATE, DRIVEN

10шт.

5

3223460R1

DRIVE PLATE

8шт.

6

3223463R1

FIN

PLATE, THRUST 2 8 MM

2шт.

6

3223462R1

PLATE, THRUST

2 9 MM

2шт.

6

3223461R1

WASHER

PLATE, THRUST 3 0 MM

2шт.

7

3230283R1

GEAR

DIFFERENTIAL SIDE

2шт.

8

3230284R1

GEAR

DIFFERENTIAL PINION

2шт.

9

3147204R1

WASHER, THRUST

THRUST

2шт.

10

NSS

NOT SOLD SEPARAT

SHAFT, DIFFERENTIAL

1шт.

11

3139039R1

RING, SNAP

RING SNAP

2шт.

Выбрано товаров: 13
