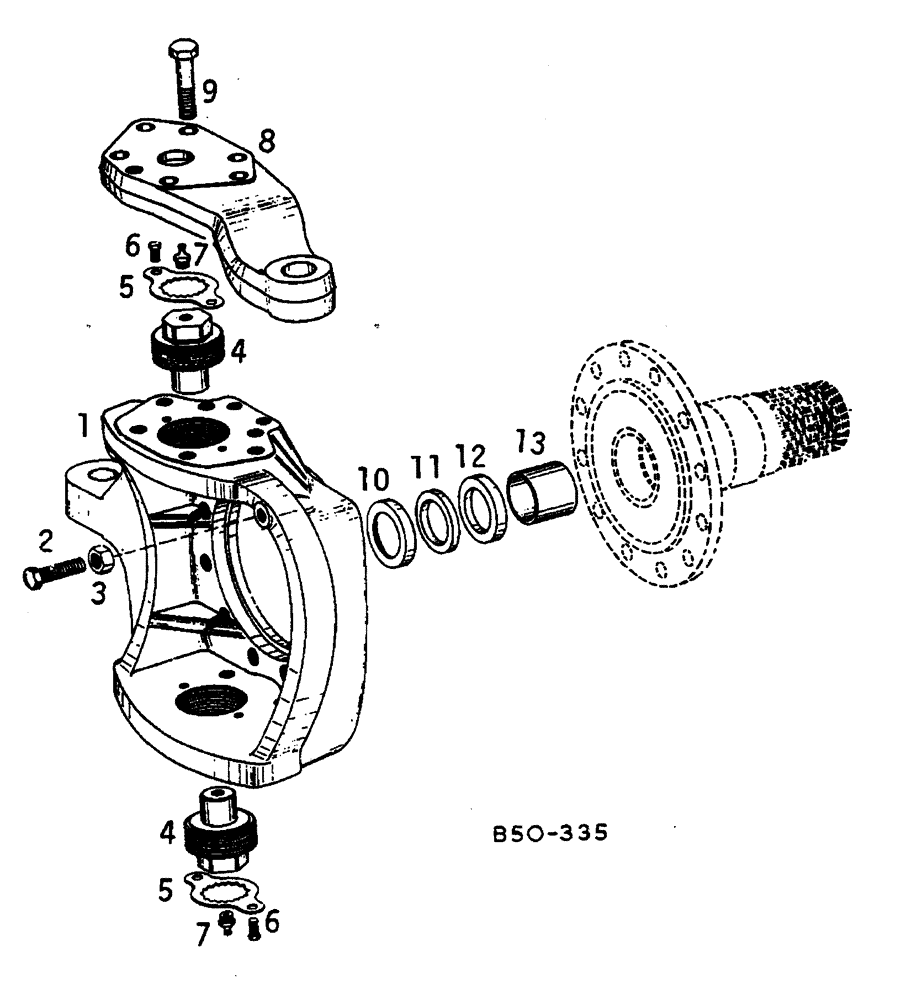

Запчасти Case IH 884 (07-110) - STEERING KNUCKLE ASSY - 4 WHEEL DRIVE - Z F 4 WHEEL DRIVE (04) - Drive Train

1

3230955R1

HOUSING

STEERING KNUCKLE R H

1шт.

1

3230954R1

HOUSING

STEERING KNUCKLE L H

1шт.

2

3134225R1

BOLT

M12 X 40

4шт.

3

934652R1

THIN NUT,Thin, M12 x 1.5, Cl 05

HEX M12

4шт.

4

3216588R1

LARGE PIN

PIN, LARGE AXLE KING

4шт.

5

3216589R1

PLATE, LOCKING

4шт.

6

930107R1

BOLT,Hex, M6 x 1 x 10mm, Cl 8.8, Full Thd

M6 X 10, INCLUDES: COVER, KING PIN

8шт.

7

NOT APPLICABLE

1шт.

3230953R1

COVER

KING PIN

1шт.

9

1502271C1

STRAP

ARM, STEERING

1шт.

10

3279114R1

SCREW, M14 X 50, INCLUDES: SCREWS

6шт.

280264

BOLT,Hex, M14 x 50mm, Cl 8.8

4шт.

11

3226008R1

HOLDER

4шт.

12

3226009R1

SEALING RING

FELT

4шт.

13

3226006R1

OIL SEAL

4шт.

14

3216585R1

BUSHING,28mm ID x 32mm OD x 30mm L

4шт.
