Запчасти Case IH 884 (15-09A) - REAR WHEEL WEIGHTS, SPLIT TYPE Wheels & Traction

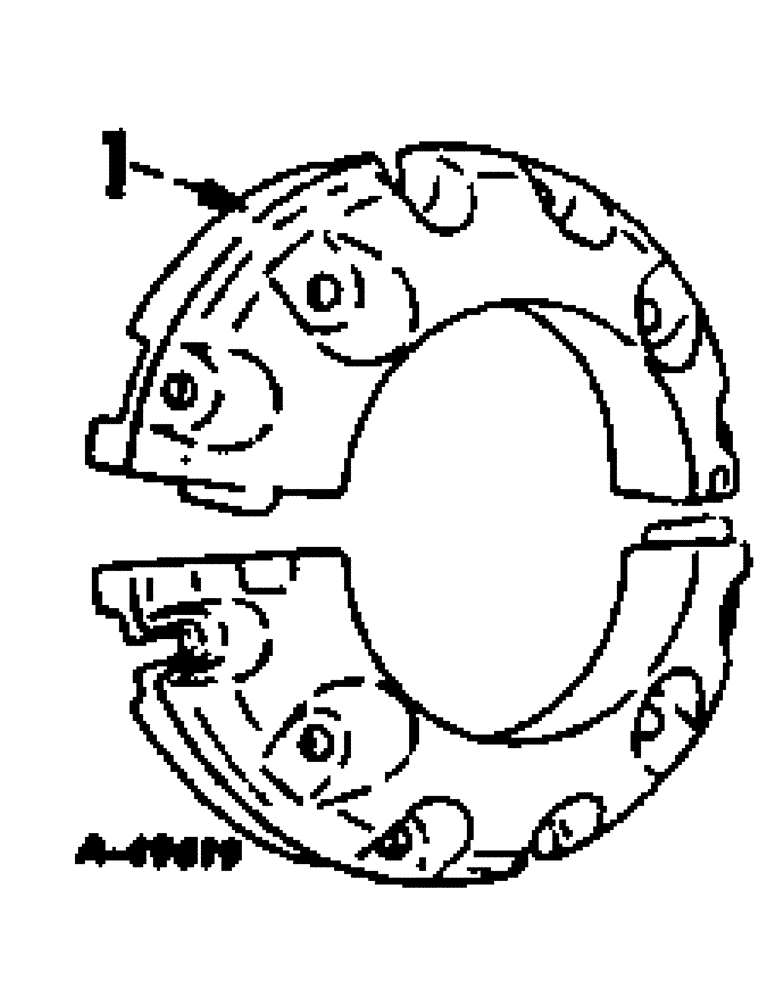

Схема запчастей Case IH 884 - (15-09A) - REAR WHEEL WEIGHTS, SPLIT TYPE Wheels & Traction
1

Артикул

Название

Примечание

Количество

1

365321R2

WEIGHT

rear wheel, 75 lbs, used w/28 or 30 in. wheel, first position

4шт.

365333R1

BOLT,Sht Sq Nk, 5/8" - 11 x 3"

rear wheel weight mounting

8шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8 jam type 5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

1

365321R2

WEIGHT

rear wheel, 75 lbs, used w/28 or 30 in. wheel, second position

4шт.

365332R2

SQUARE BOLT

BOLT, rear wheel weight mounting

8шт.

124847

COLLAR

5/8 jam type 5

8шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

1

369509R1

WEIGHT

rear wheel, 75 lbs, used w/24 or 26 in. attached clamp or power adj. rear wheels, first position

4шт.

366646R1

BOLT,Sht Sq Nk, 5/8" - 11 x 3 3/4", Gr 2

rear wheel weight mounting

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

16шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

131140

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

1

369509R1

WEIGHT

rear wheel, 75 lbs, used w/24 or 26 in. attached clamp or power adj. rear wheels, second position

4шт.

369508R1

BOLT,5/8" - 11 x 5 3/4"

rear wheel weight mounting

8шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8 jam type 5

8шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

1

366645R1

WEIGHT

rear wheel, 75 lbs, used w/26 in. wheels, first position

4шт.

366646R1

BOLT,Sht Sq Nk, 5/8" - 11 x 3 3/4", Gr 2

rear wheel weight mounting

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

16шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

131140

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

1

366645R1

WEIGHT

rear wheel, 75 lbs, used w/26 in. wheels, second or third position

4шт.

366647R1

BOLT,Sq Hd, 5/8" - 11 x 5 1/2"

rear wheel weight mounting

8шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

1

400078R2

WEIGHT

rear wheel, 75 lbs, used w/38 or 42 in. wheels, first position

4шт.

367125R1

BOLT,Sq Hd, 3/4" - 10 x 3 3/4"

rear wheel weight mounting

8шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 jam type 5

8шт.

280954

NUT,3/4"-10, G5

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

1

400078R2

WEIGHT

rear wheel, 75 lbs, used w/38 or 42 in. wheels, second position

4шт.

366111R1

BOLT,Sq Hd, 3/4" - 10 x 3 1/4"

rear wheel weight mounting

8шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 jam type 5

8шт.

280954

NUT,3/4"-10, G5

8шт.

366112R1

WASHER

.781 x 1.250 x .105

16шт.

Выбрано товаров: 39
