Запчасти Case IH 884 (15-09) - REAR WHEEL WEIGHTS, SOLID TYPE Wheels & Traction

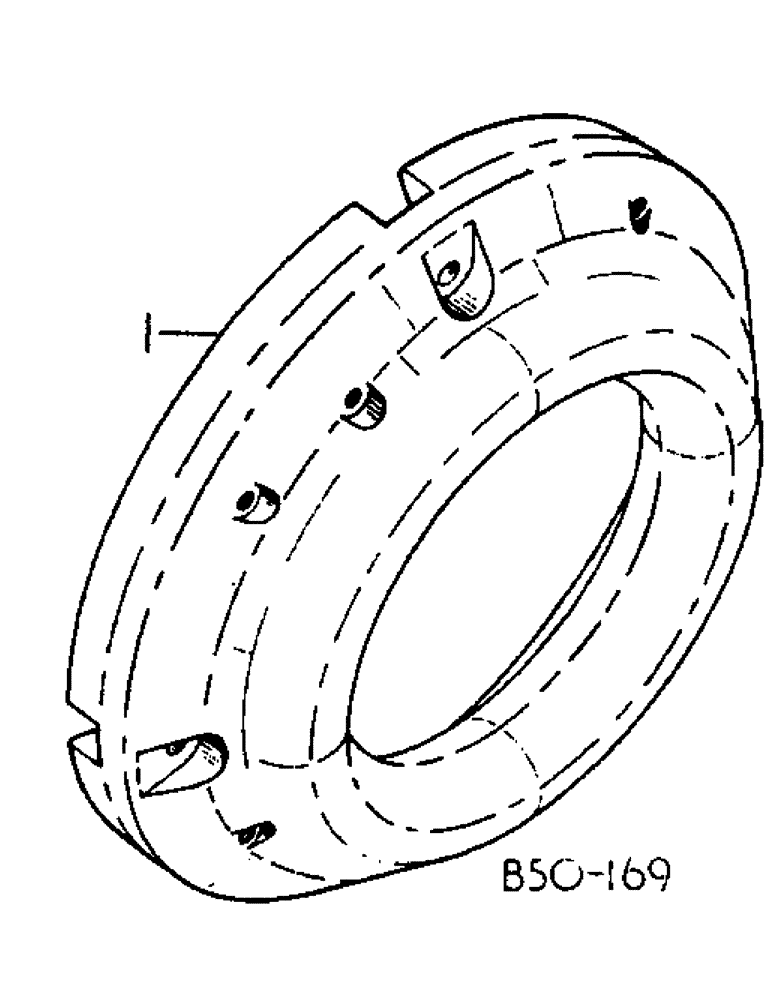

Схема запчастей Case IH 884 - (15-09) - REAR WHEEL WEIGHTS, SOLID TYPE Wheels & Traction
1

Артикул

Название

Примечание

Количество

1

3123758R3

WEIGHT

-120 lbs, use w/28 or 30 in. attached clamp wheels having 8 rim clamps or vendor name Sanke or Nagbol stamped on wheel, 1st position, use weight 365321R1 for 2nd and 3rd position

2шт.

181151

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

7/16 x 3-1/4 phc type 5

8шт.

537133R1

SPACER

taper, Includes: washers and nut

8шт.

21029R1

WASHER

.469 x 1.000 x .105

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

271501

SOCKET

NUT, 7/16 type 5

8шт.

1

406857R5

WEIGHT

120 lbs, used w/28 or 30 in. wheels, second set

2шт.

189652

BOLT,Hex, 7/16" - 14 x 4 3/4", Gr 5

7/16 x 4-3/4 phc type 5

8шт.

21029R1

WASHER

.469 x 1.000 x .105

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

NLS

NO LONGER SERVICED

NUT, 7/16 type 5

8шт.

1

1500992C1

WEIGHT

used w/28 or 30 in. Lemmerz wheels, first outside weight

2шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8 x 3 type 5

12шт.

131016

WASHER

.656 x 1.312 x .074

12шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

12шт.

Выбрано товаров: 16
