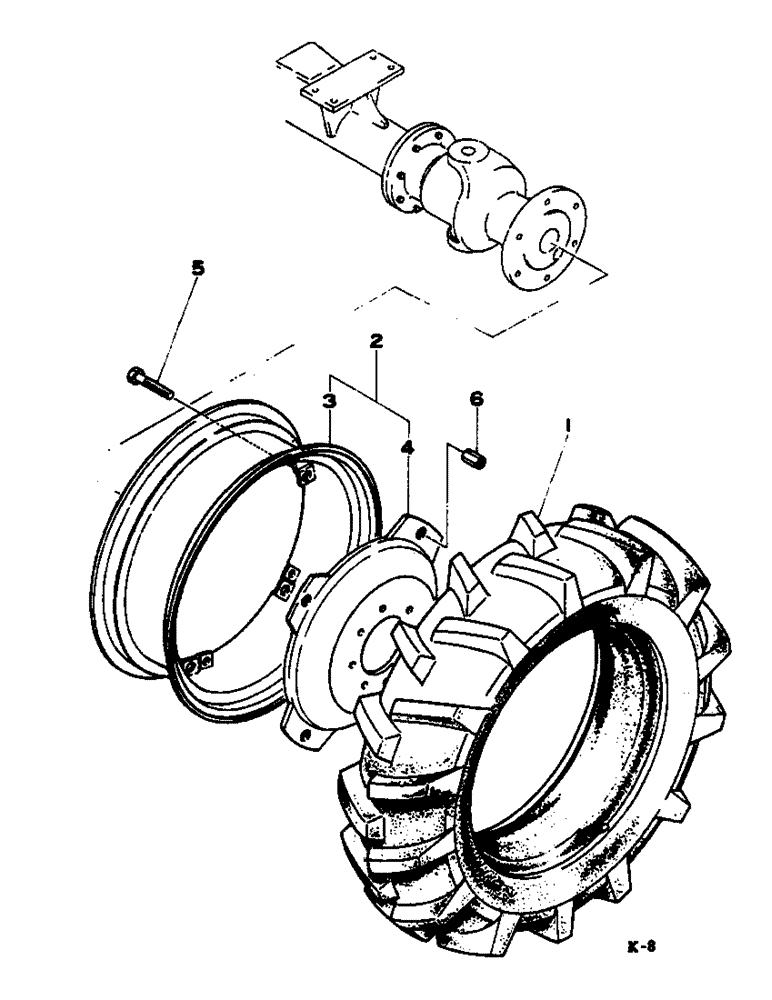

Запчасти Case IH 884 (15-08) - FRONT WHEEL, ALL WHEEL DRIVE Wheels & Traction

1

NSS

NOT SOLD SEPARAT

TIRE

1шт.

2

1004591C91

WHEEL ASSY

W7-24, 4 bolt Kimco

2шт.

Used on tractors with Kimco axle, order 2 6 bolt Nagbol wheels of corresponding size

1шт.

2

1014686C93

WHEEL ASSY, W8-24, 4 bolt Kimco

2шт.

Used on tractors with Kimco axle, order 2 6 bolt Nagbol wheels of corresponding size

1шт.

2

1014646C93

WHEEL ASSY, W9-24, 4 bolt Kimco

2шт.

Used on tractors with Kimco axle, order 2 6 bolt Nagbol wheels of corresponding size

1шт.

2

3125942R91

WHEEL ASSY.

WHEEL ASSY, W7-24, 6 bolt Nagbol

2шт.

2

3125943R91

WHEEL ASSY

W8-24, 6 bolt Nagbol

2шт.

2

3125944R91

WHEEL ASSY.

WHEEL ASSY, W9-24, 6 bolt Nagbol

2шт.

2

1500774C91

WHEEL

ASSY, W8-24, 6 bolt Nagbol

2шт.

Used on tractors with ZF axle.

1шт.

2

1502033C91

WHEEL

ASSY, W10-24, 6 bolt Nagbol

2шт.

Used on tractors with ZF axle.

1шт.

3

1004592C1

RIM

W7-24, 4 bolt Kimco

2шт.

Used on tractors with Kimco axle, order 2 6 bolt Nagbol wheels of corresponding size

1шт.

3

1002008C1

RIM

W8-24, 4 bolt kimco

2шт.

Used on tractors with Kimco axle, order 2 6 bolt Nagbol wheels of corresponding size

1шт.

3

1060391C91

RIM, W9-24, 4 bolt Kimco

2шт.

Used on tractors with Kimco axle, order 2 6 bolt Nagbol wheels of corresponding size

1шт.

3

1500205C1

RIM

W7-24, 6 bolt Nagbol

2шт.

3

1500206C1

RIM

W8-24, 6 bolt Nagbol

2шт.

Used on tractors with ZF axle.

1шт.

3

1500207C1

RIM

W9-24, 6 bolt Nagbol

2шт.

3

1502035C1

RIM

W10-24, 6 bolt Nagbol

2шт.

Used on tractors with ZF axle.

1шт.

3

3147863R91

RIM

W10-24, 6 bolt

2шт.

4

1004593C1

DISC, WHEEL

DISC, 4 bolt Kimco

2шт.

4

1500208C1

DISC

6 bolt Nagbol, for use w/W7-24, W8-24 & W9-24 rims

2шт.

4

1502034C1

DISC, WHEEL

DISC, 6 bolt Nagbol, for use w/W10-24 rim 1502035C1

2шт.

4

3147865R1

DISC, WHEEL

DISC, 6 bolt, for use w/W10-24 rim 3147863R91

2шт.

5

1002000C1

WHEEL BOLT

4 bolt Kimco rims

1шт.

5

1500605C1

BOLT,M16 x 1.5 x 88mm

4 bolt Kimco rims, for reworked wheels

1шт.

5

1500209C1

BOLT

6 bolt Nagbol rims

1шт.

5

271752

BALL BEARING,Hex, 5/8" - 18 x 3", Gr 5

5/8-NF x 3 type 5, for use w/W10-24 rim 3147863R91

1шт.

6

1014946C1

NUT

4 bolt Kimco rims

1шт.

6

1500210C1

NUT

4 & 6 bolt Nagbol rims

1шт.

6

425-1110

NUT,5/8"-18, G5

5/8-NF type 5, for use w/W10-24 rim 3147863R91

1шт.

1014377C1

WASHER

4 bolt Kimco rims

1шт.

1500211C1

WASHER

6 bolt Nagbol rims, for use w/W7-24, W8-24 & W9-24

1шт.

1502036C1

WASHER

6 bolt Nagbol rims, for use w/W10-24 rim 1502035C1

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , For use w/W10-24 rim 3147863R91 5/8"

1шт.
