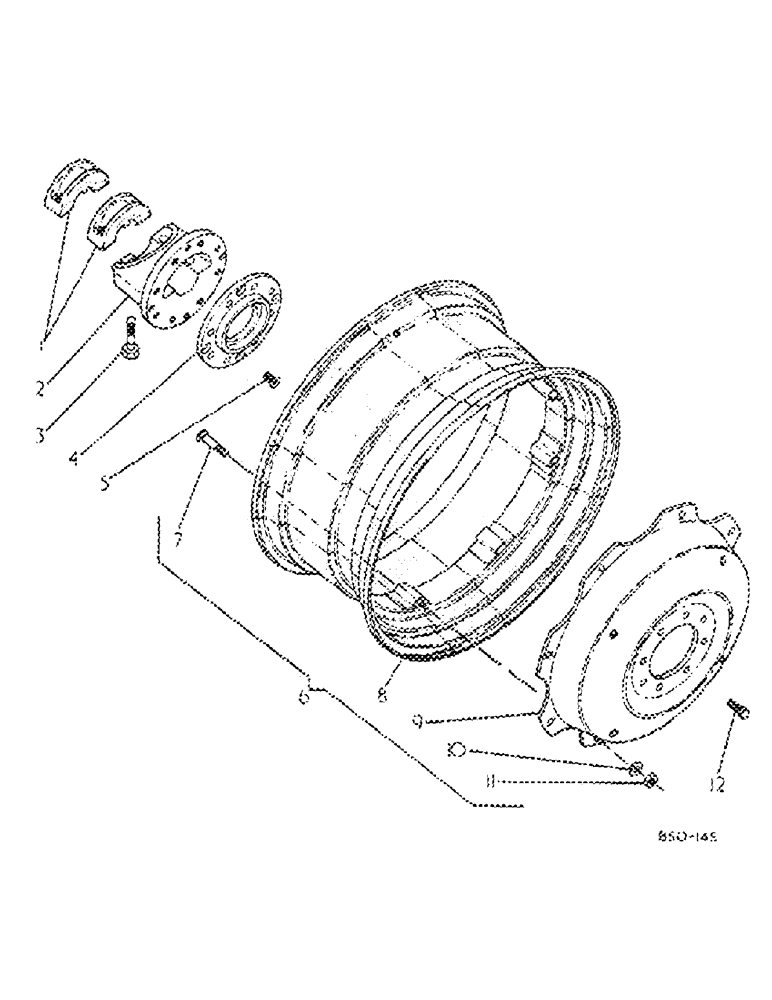

Запчасти Case IH 884 (15-06) - REAR WHEELS, DW14-30 AND DW16-30, ROW CROP TRACTORS Wheels & Traction

1

389539R1

CLAMP

wheel hub

4шт.

2

530504R1

HUB

rear wheel

2шт.

3

271689

WASHER,Hex, 7/8" - 14 x 4 3/4", Gr 5

7/8NF x 4-3/4 pln type 5

8шт.

3

375463R1

SCREW,Hex, 7/8" - 14 x 4 3/4"

7/8-14 x 4-3/4 cap

8шт.

4

365957R3

FLANGE

rear wheel hub pilot

2шт.

5

373367R1

HEX SOC SCREW,Prev Torque, Flat Hd, 1/2" - 13 x 1 1/4"

SCREW, pilot flange mtg

8шт.

6

NSS

NOT SOLD SEPARAT

WHEEL ASSY

1шт.

7

363800R1

BOLT,5/8" - 18 x 3 1/8"

rear wheel rim mtg

12шт.

8

395855R2

RIM

ASSY, DW16-30 rear w/clamps

2шт.

8

395856R2

RIM

ASSY, DW14-30 rear w/clamps

2шт.

9

361724R1

WHEEL DISC

DISC, rear wheel

2шт.

10

369730R1

WASHER

21/32 x 1-5/16 x 10 ga

12шт.

131140

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

11

352777R1

NUT

rear wheel rim clamp

12шт.

11

225861

NUT,5/8"-18, G8

1шт.

12

365397R2

SCREW

BOLT, rear wheel mtg

16шт.

383697R1

PLUG

GROMMET, rim hole rubber

12шт.
