Запчасти Case IH 884 (15-05) - REAR WHEELS, W15-30, ROW CROP TRACTORS Wheels & Traction

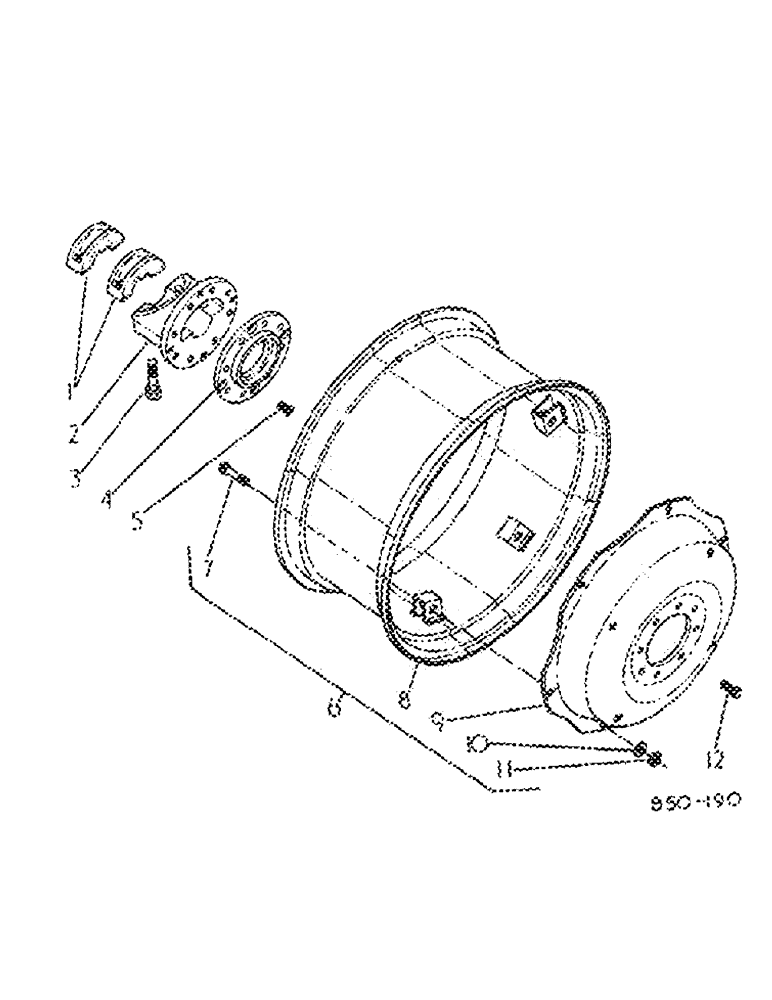

Схема запчастей Case IH 884 - (15-05) - REAR WHEELS, W15-30, ROW CROP TRACTORS Wheels & Traction
12
7
1
3
8
4
2
11
9
5
6
10

Артикул

Название

Примечание

Количество

1

389539R1

CLAMP

rear wheel hub

4шт.

2

530504R1

HUB

rear wheel

2шт.

3

375552R1

BOLT,Spcl, Shoulder, Hex, 7/8" - 14 x 4 3/4", Gr 2

hub clamp mounting

8шт.

4

365957R3

FLANGE

rear wheel hub pilot

2шт.

5

373367R1

HEX SOC SCREW,Prev Torque, Flat Hd, 1/2" - 13 x 1 1/4"

SCREW, pilot flange mounting

8шт.

6

NSS

NOT SOLD SEPARAT

WHEEL ASSY, w/15-30 rear order components

2шт.

7

3116403R1

BOLT (SPREADER)

BOLT, rear wheel rim mounting

12шт.

8

3116540R1

RIM

W/LUG, w/15-30 rear wheel

2шт.

9

3116404R1

DISC

rear wheel

2шт.

10

934233R1

LOCK WASHER

5/8 lock

12шт.

11

102639

NUT,5/8"-11, G5

1шт.

12

391004R1

BOLT,Hex, 5/8"

BOLT, rear wheel mounting

16шт.

Выбрано товаров: 12
