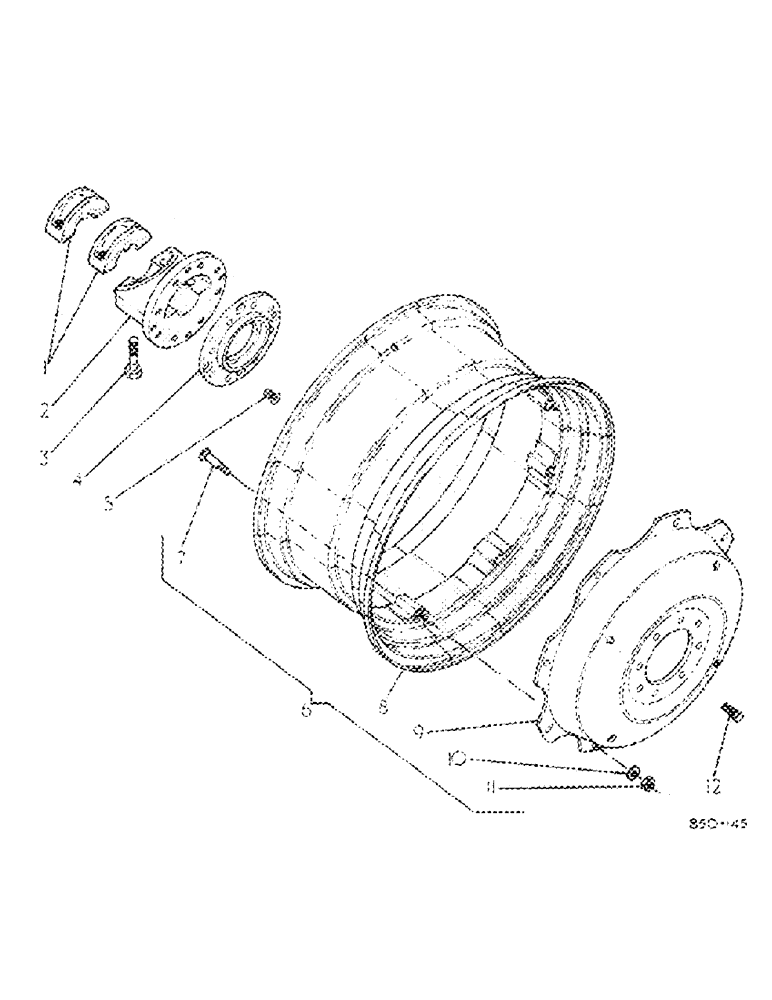

Запчасти Case IH 884 (15-04) - REAR WHEELS, W14-30 Wheels & Traction

1

389539R1

CLAMP

rear wheel hub

4шт.

2

530504R1

HUB

rear wheel

2шт.

3

375552R1

BOLT,Spcl, Shoulder, Hex, 7/8" - 14 x 4 3/4", Gr 2

hub clamp mounting

8шт.

4

365957R3

FLANGE

rear wheel hub pilot

2шт.

5

373367R1

HEX SOC SCREW,Prev Torque, Flat Hd, 1/2" - 13 x 1 1/4"

SCREW, pilot flange mounting

8шт.

6

527253R91

WHEEL

ASSY, W14-30 rear

2шт.

7

406951R1

BOLT,5/8" - 18 x 2.91", Gr 5

rear wheel rim mtg

16шт.

8

406944R1

RIM

W/LUGS, DW14-30 rear wheel

2шт.

9

406942R1

DISC

rear wheel

2шт.

10

406952R1

WASHER

rear wheel mtg bolt

16шт.

11

406953R1

NUT

rear wheel mtg bolt

16шт.

12

391004R1

BOLT,Hex, 5/8"

BOLT, rear wheel mtg

16шт.
