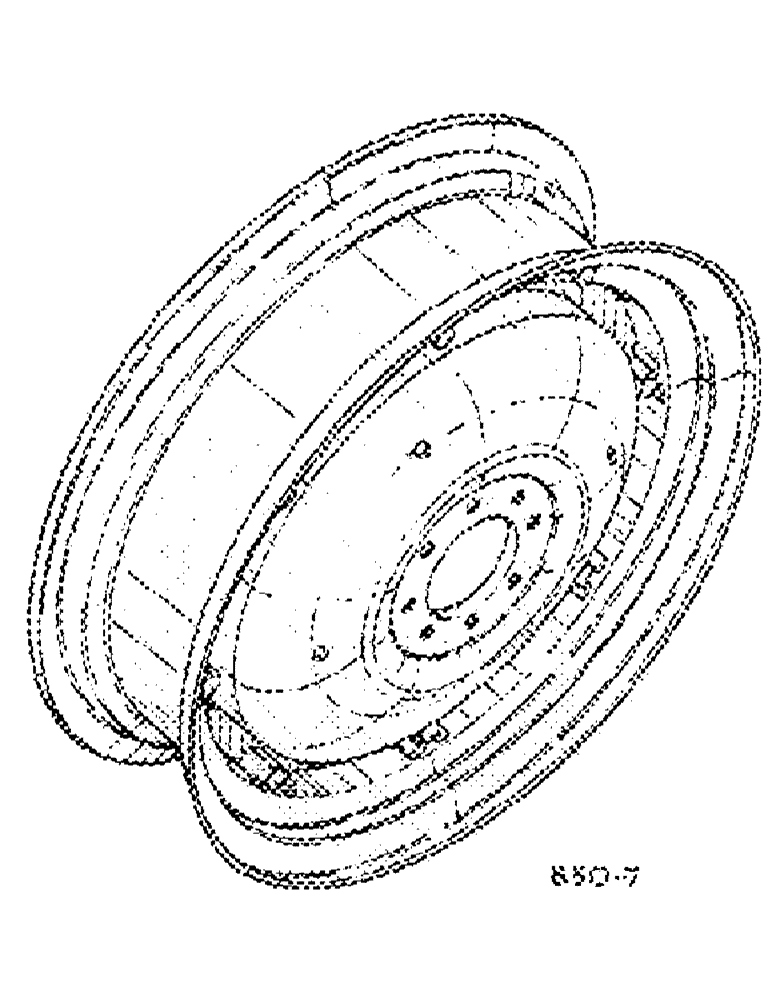

Запчасти Case IH 884 (15-02) - REAR WHEEL, 6 BOLT WHEEL TO RIM MOUNTING Wheels & Traction

1

1265033C92

RIM

ASSY, W15L-24 rear w/clamps

2шт.

374806R1

DISC, WHEEL

DISC, 24 in. rear wheel

2шт.

27549R1

VALVE STEM

TR 618A

2шт.

1

374808R92

RIM

ASSY, W12-24 rear w/clamps

2шт.

374806R1

DISC, WHEEL

DISC, 24 in. rear wheel

2шт.

363800R1

BOLT,5/8" - 18 x 3 1/8"

rear wheel rim clamp

12шт.

352777R1

NUT

rear wheel rim clamp

12шт.

225861

NUT,5/8"-18, G8

12шт.

131140

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

369730R1

WASHER

21/32 x 1-5/16 x 10 ga

12шт.

1

3129777R1

RIM

ASSY, DW16-26 rear w/clamps

2шт.

374806R1

DISC, WHEEL

DISC, 24 in. rear wheel

2шт.

27549R1

VALVE STEM

TR 618A

2шт.

417194C1

PLUG

ASSY, rim hole

2шт.

363800R1

BOLT,5/8" - 18 x 3 1/8"

rear wheel rim clamp

12шт.

352777R1

NUT

rear wheel rim clamp

12шт.

225861

NUT,5/8"-18, G8

1шт.

131140

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

369730R1

WASHER

21/32 x 1-5/16 x 10 ga

12шт.

1

363988R92

RIM

ASSY, W12-28 rear w/clamps

2шт.

361724R1

WHEEL DISC

DISC, 28 in. rear wheel

2шт.

363800R1

BOLT,5/8" - 18 x 3 1/8"

rear wheel rim clamp

12шт.

352777R1

NUT

rear wheel rim clamp

12шт.

225861

NUT,5/8"-18, G8

12шт.

131140

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

369730R1

WASHER

21/32 x 1-5/16 x 10 ga

12шт.

1

1265036C1

RIM

ASSY, W15L-28 rear w/clamps

2шт.

361724R1

WHEEL DISC

DISC, 28 in. rear wheel

2шт.

1

395856R2

RIM

ASSY, DW14-30 rear w/clamps

2шт.

361724R1

WHEEL DISC

DISC, 28 in. rear wheel

2шт.

1

395855R2

RIM

ASSY, DW16-30 rear w/clamps

2шт.

361724R1

WHEEL DISC

DISC, 28 in. rear wheel

2шт.

383697R1

PLUG

GROMMET, rim hole rubber

2шт.

363800R1

BOLT,5/8" - 18 x 3 1/8"

rear wheel rim clamp

12шт.

352777R1

NUT

rear wheel rim clamp

12шт.

225861

NUT,5/8"-18, G8

1шт.

131140

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

369730R1

WASHER

21/32 x 1-5/16 x 10 ga

12шт.
