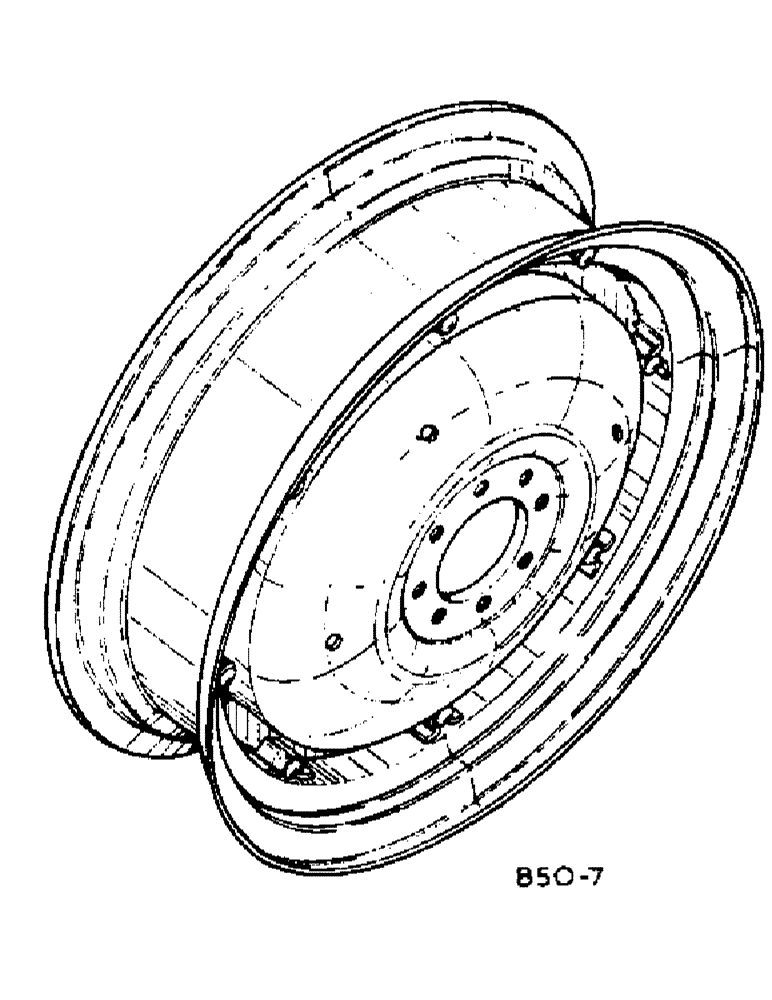

Запчасти Case IH 884 (15-01B) - REAR WHEELS, 8 BOLT WHEEL TO RIM MOUNTING Wheels & Traction

1

527253R91

WHEEL

ASSY, DW14-30 rear

2шт.

406944R1

RIM

w/lug DW14-30 rear wheel

2шт.

406942R1

DISC

rear wheel

2шт.

406951R1

BOLT,5/8" - 18 x 2.91", Gr 5

rear wheel disc

16шт.

406953R1

NUT

rear wheel disc bolt

16шт.

406952R1

WASHER

rear wheel disc bolt

16шт.

1

527251R91

WHEEL

ASSY, W13-28 rear

2шт.

406941R1

RIM

w/lug W13-28

2шт.

406942R1

DISC

rear wheel

2шт.

406951R1

BOLT,5/8" - 18 x 2.91", Gr 5

rear wheel disc

16шт.

406953R1

NUT

rear wheel disc bolt

16шт.

406952R1

WASHER

rear wheel disc bolt

16шт.

1

3113317R91

WHEEL

ASSY, W14-34 rear, order 1265237C91

2шт.

3113464R1

RIM

w/lug W14-34

2шт.

406948R1

WHEEL DISC

DISC, rear wheel

2шт.

406951R1

BOLT,5/8" - 18 x 2.91", Gr 5

rear wheel disc

16шт.

406953R1

NUT

rear wheel disc bolt

16шт.

406952R1

WASHER

rear wheel disc bolt

16шт.

1

1265237C91

WHEEL

ASSY, W14-34 rear, replaces 3113317R91

1шт.

1265238C1

RIM

w/14-34

2шт.

1265239C1

DISC, WHEEL

DISC

1шт.

1265255C1

BOLT

rear wheel

16шт.

30329R1

WASHER,M17.5 x 30 x 4, HT

17.3 x 30 x 4MM

16шт.

30170R1

NUT,M16, Cl 10

M16 phc class 10

16шт.

1

NSS

NOT SOLD SEPARAT

WHEEL ASSY, w/15L x 30 order components

2шт.

3116540R1

RIM

& LUG

2шт.

3116404R1

DISC

rear wheel

2шт.

3116403R1

BOLT (SPREADER)

BOLT, rear wheel

6шт.

102639

NUT,5/8"-11, G5

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.
