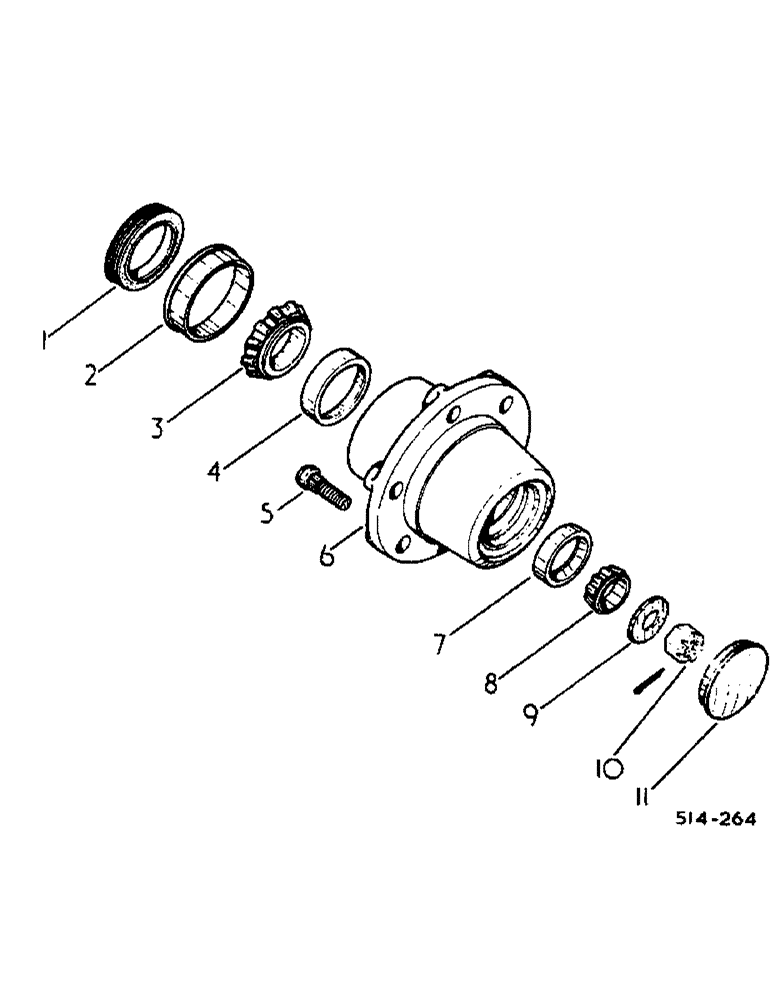

Запчасти Case IH 884 (14-05) - FRONT WHEEL HUB, BEARINGS AND CAP, ADJUSTABLE FRONT AXLE, STRAIGHT Suspension

1

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

front wheel dust

2шт.

2

67328C1

SEALING RING

RING, wear

2шт.

3

400987C91

BEARING ASSY,1.7817" ID x 2.892" OD x 0.77, 0.62"

BEARING ASSY, inner cone

2шт.

4

400988C1

BEARING, CUP

Inner

2шт.

5

528803R1

BOLT,1/2" - 20 x 1.75"

Mounting

12шт.

483879R1

NUT

wheel

12шт.

6

67527C92

HUB

ASSY, front wheel composed of ref no. 2, 4, 5 & 7

2шт.

7

536054R1

BEARING CUP,60mm OD x 11.94mm W

BEARING, outer cup

2шт.

8

536053R1

ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"

BEARING ASSY, outer cone

2шт.

9

3118706R1

WASHER

outer bearing retainer

2шт.

10

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 slt hex

2шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

11

612884R1

HUB CAP

CAP, front wheel hub

2шт.

63881C92

BEARING SET,21.43mm ID x 65.08mm OD

KIT, Includes: cones, cups, ring, and seal

1шт.

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

1шт.

371883R1

BEARING CUP

1шт.

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

cone

1шт.

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

1шт.

663908R1

CAP

cup

1шт.

667564R2

SLEEVE

ring

1шт.

667599R92

SEAL

1шт.
