Запчасти Case IH 884 (14-03) - FRONT AXLE, STRAIGHT, HEAVY DUTY, 52 - 80 " TREAD FOR LOW PROFILE UTILITY TRACTORS, ROW CROP TRAC. Suspension

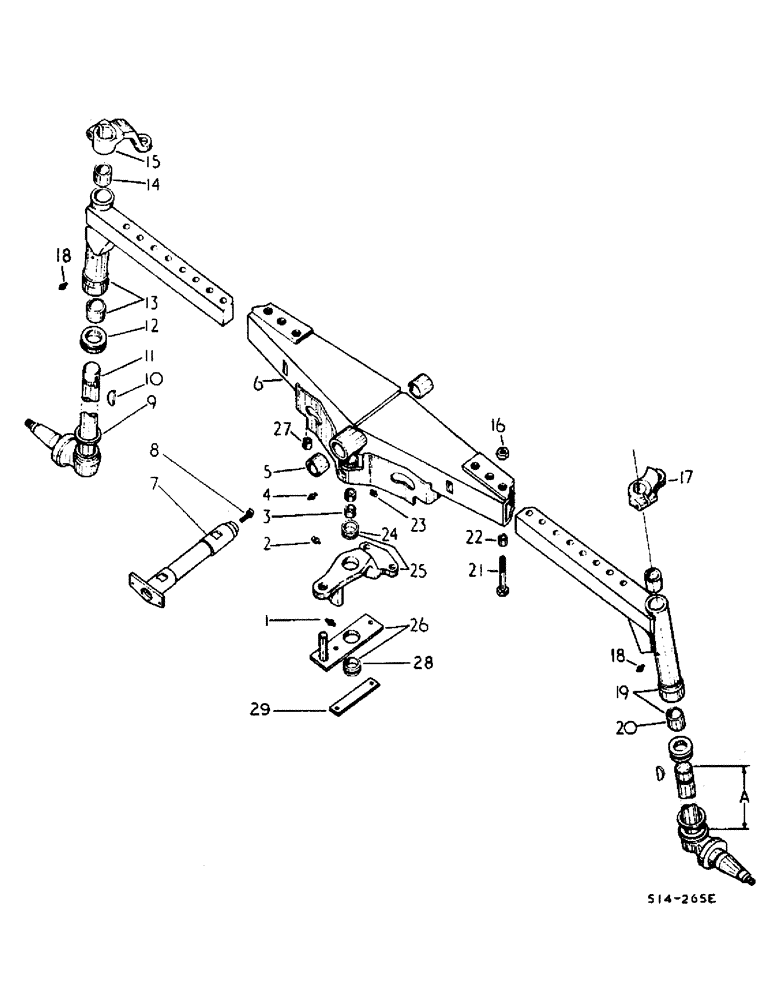

Схема запчастей Case IH 884 - (14-03) - FRONT AXLE, STRAIGHT, HEAVY DUTY, 52 - 80 " TREAD FOR LOW PROFILE UTILITY TRACTORS, ROW CROP TRAC. Suspension
18
22
25
5
27
16
21
20
17
15
7
13
11
1
6
4
23
12
9
24
10
26
28
2
14
19
29
18
8
3

Артикул

Название

Примечание

Количество

1

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, drive type str lub 3/16

1шт.

2

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65 deg drive type str lub

1шт.

3

405574R1

BUSHING

support

2шт.

4

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING, 1/4 65 deg angle drive type

1шт.

5

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

pivot

2шт.

6

3116435R92

AXLE, FRONT

AXLE ASSY, front, on orders for R91 axle order R92 axle w/clevis, 3125306R1 pin, 3125305R1 & bushing 3125304R1

1шт.

7

539128R1

SHAFT ASSY.

SHAFT ASSY, front axle pivot

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

1251958C1

WASHER,13mm ID x 25.40mm OD x 1.367mm, HTS

hardened

2шт.

8

273352

SCREW

FITTING, 1/8-27 ptf 90 deg angle lub

1шт.

9

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle felt

2шт.

10

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

11

67526C91

KNUCKLE

ASSY, steering, Row crop tractors, high spindle, A dimension 15.30 in.

2шт.

11

3125872R91

STEERING KNUCKLE

KNUCKLE ASSY, steering, Low profile utility tractors, low low spindle, A dimension is 9.52 in.

2шт.

12

185106C91

BEARING ASSY,44.2mm ID x 70.1mm OD x 19.05mm W

BEARING, steering knuckle thrust

2шт.

13

3116437R91

EXTENSION ASSY.

EXTENSION ASSY, front axle RH, Row crop tractors, high spindle

1шт.

13

3116476R91

EXTENSION ASSY.

EXTENSION ASSY, front axle RH, Low profile utility tractors, low low spindle

1шт.

14

376099R1

BUSHING

2шт.

15

67525C1

ARM

steering knuckle RH

1шт.

102637

NUT,1/2"-13, G5

1шт.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

16

405576R1

NUT

front axle

4шт.

17

67524C1

ARM

steering knuckle LH

1шт.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

102637

NUT,1/2"-13, G5

1шт.

18

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, 1/4 drive type str lub

2шт.

19

3116436R91

EXTENSION ASSY.

EXTENSION ASSY, front axle LH, Row crop tractors, high spindle

1шт.

19

3116475R91

EXTENSION ASSY.

EXTENSION ASSY, front axle LH, Low profile utility tractors, low low spindle

1шт.

20

376099R1

BUSHING

2шт.

21

405584R2

BOLT,Shldr, 3/4" - 16 x 4

Shoulder

6шт.

22

NOT USED THIS APPLICATION

1шт.

23

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive type str lub

1шт.

24

379748R1

BUSHING

1шт.

25

67499C91

ARM ASSY.

ARM ASSY, power steering center

1шт.

26

405580R11

BAR ASSY.

BAR ASSY, power steering cylinder

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

27

3125304R1

BUSHING

spring steel

1шт.

28

379748R1

BUSHING

1шт.

29

67976C1

PLATE, LOCKING

STRIP, steering center arm bolt lock

1шт.

Выбрано товаров: 39
